17734 - Lawn-Boy 21" Walk-Behind Mower (SN: 405700000 - 999999999) Lower Handle Assembly Parts Diagram

21" Walk-Behind Mower

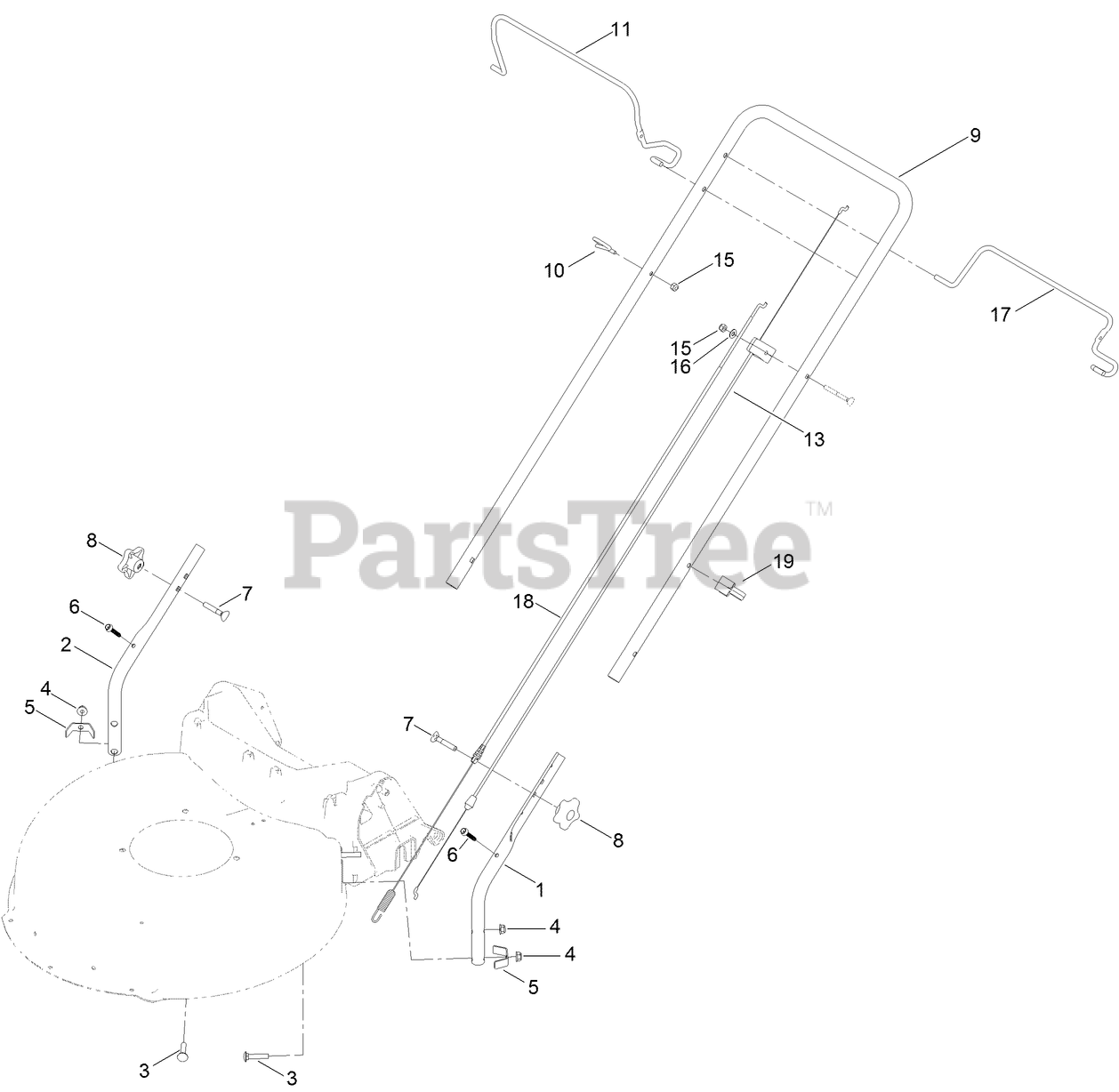

Lower Handle Assembly Parts Diagram

  • Title

1

Lawn-Boy 136-5923-05

HANDLE-LOWER, LH

$51.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 136-5924-05

HANDLE-LOWER, RH

$25.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 130-6654

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 130-6655

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 127-0699

BRACKET-CHUTE

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 130-6659

SCREW-FLANGE, SERRATED

$1.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 127-0659-05

HANDLE-UPPER

$55.99

$

In Stock, Qty 5

0

10

Lawn-Boy 86-9671

GUIDE-ROPE

$4.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 138-3268-03

BAIL-BRAKE

$15.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 112-8818

CABLE-BRAKE

$37.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 127-0719-03

BAIL-TRACTION

$26.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 127-0733

CABLE-TRACTION

$19.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0
