17732 - Lawn-Boy 21" Walk-Behind Mower (SN: 315000001 - 315999999) (2015) Chute and Rear Door Assembly Parts Diagram

21" Walk-Behind Mower

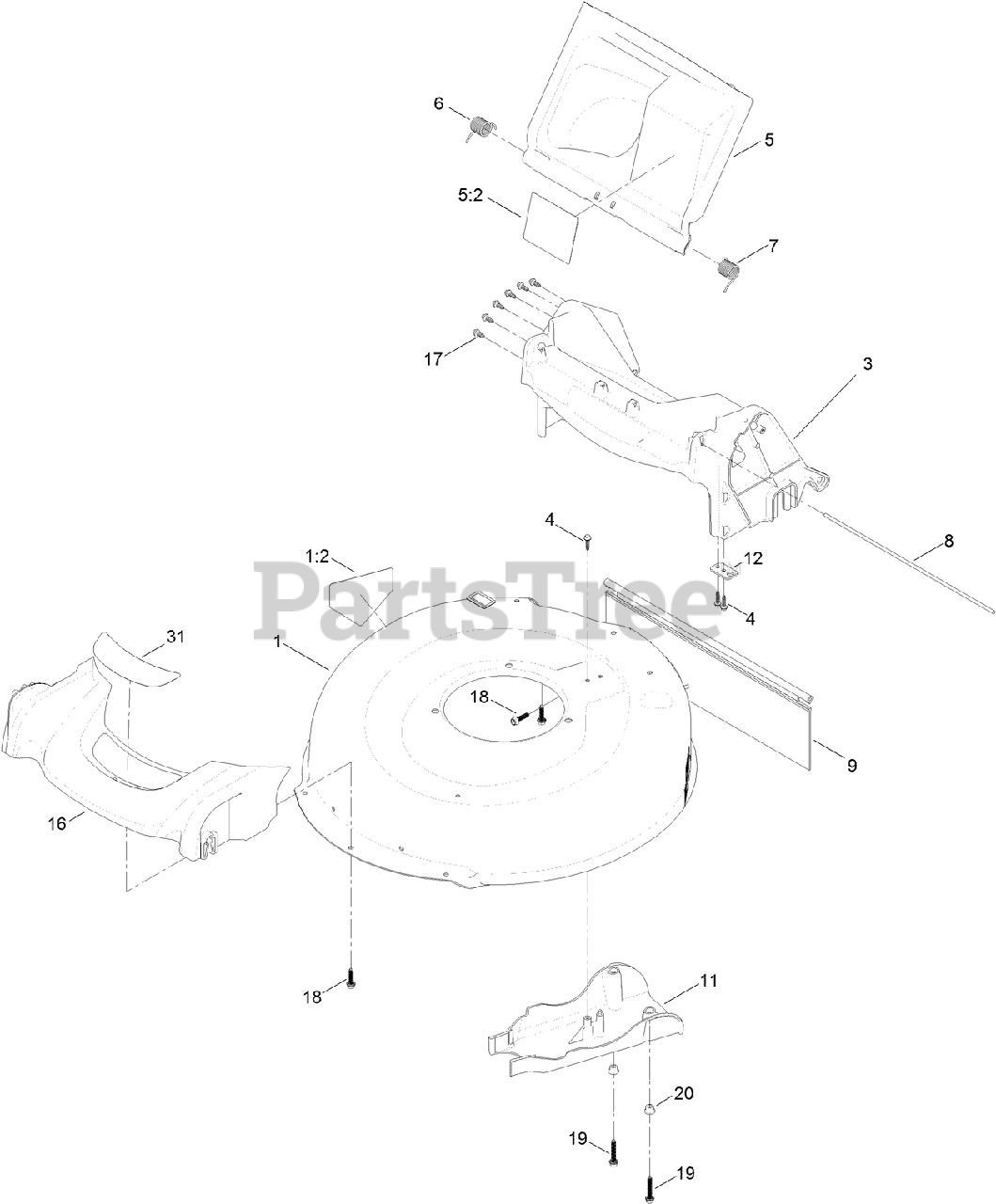

Chute and Rear Door Assembly Parts Diagram

  • Title

1

Lawn-Boy 130-6666

See Supercession: 133-1938
(Superseded to 133-1938)

$250.99

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

3

Lawn-Boy 130-6656

See Supercession: 133-1913
(Superseded to 139-1805)

$38.99

$

In Stock, Qty 14

0

4

Lawn-Boy 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 130-2368

REAR DEFLECTOR ASM

$27.99

$

Usually ships in 3-6 days

0

5:2

Lawn-Boy 117-4143

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 127-6807

SPRING-TORSION

$3.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 127-6808

SPRING-TORSION

$

$

Not available

8

Lawn-Boy 127-0698

ROD-DOOR

$2.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 127-0724

SHIELD-TRAILING

$13.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 127-0723

COVER-BELT

$11.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 127-0730

BRACKET-CABLE

$1.49

$

In Stock, Qty 8

0

16

Lawn-Boy 127-0677

BUMPER

$22.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 130-2355

STUD

$0.99

$

In Stock, Qty 10

0

18

Lawn-Boy 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0

19

Lawn-Boy 130-6659

SCREW-FLANGE, SERRATED

$1.49

$

In Stock, Qty 15

0

20

Lawn-Boy 130-2378

SPACER-FLANGE

$2.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 127-6830

DECAL-DECK

$4.49

$

Usually ships in 3-6 days

0
