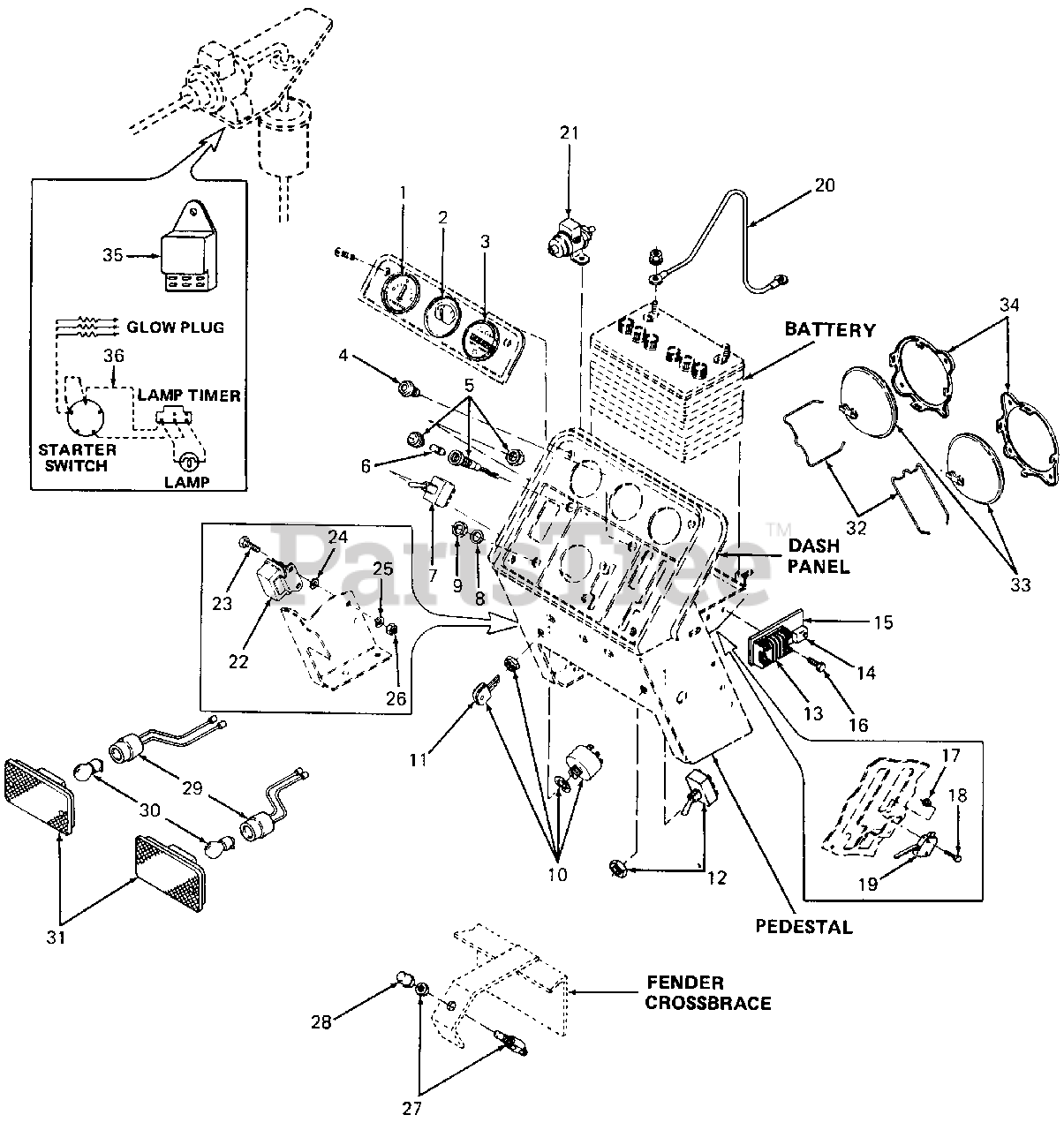

1772 (149-711-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Electrical Parts Diagram

Super Garden Tractor

Electrical Parts Diagram

  • Title

Cub Cadet 725-3132

Harness, Wire

$

$

Currently unavailable

1

Cub Cadet 725-3023

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

2

Cub Cadet KB-19488-83030

Gauge, Water Temperature
(Superseded to KB-H1940-83000)

$298.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 725-3058

Hourmeter

$

$

Not available

4

Cub Cadet 725-3153

Indicator Lamp, Glow Plug

Note: (Includes Ref No. 6)

$

$

Currently unavailable

5

Cub Cadet 725-3134

Light Assy, Oil Indicator

Note: (Includes Ref No. 6)

$

$

Not available

6

Cub Cadet 725-3125

Bulb, Light

$

$

Not available

7

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-3003

Washer, Flat, .531 X .680 X .054 Thk

$

$

Not available

9

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X 1.00 Thk

$

$

Not available

10

Cub Cadet KB-66704-55120

Switch, Key
(Superseded to KB-66706-55120)

Note: (Includes Ref No. 11)

$125.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KB-66711-55140

Key, Ignition (Set of 2)
(Superseded to KB-66711-55240)

$

$

Not available

12

Cub Cadet 725-3087

Light Switch w/Nut
(Superseded to 925-3087)

$

$

Not available

13

Cub Cadet KB-19267-64600

Regulator
(Superseded to KB-RP201-53710)

$

$

Not available

14

Cub Cadet 725-3090

Circuit Breaker
(Superseded to 925-3090)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 736-0147

Washer, External Lock, #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-0349

Nut, Hex, #10-32

$4.99

$

In Stock, Qty 5

0

15

Cub Cadet 731-3038

Bracket, Circuit Breaker

$

$

Not available

16

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 X 1.50 Lg

$5.49

$

In Stock, Qty 10

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

17

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

18

Cub Cadet 710-3112

Screw, Hex Mach, #4-40 X .75 Lg

$

$

Not available

19

Cub Cadet 725-3066

Switch, Reverse
(Superseded to 925-3066)

$

$

Not available

20

Cub Cadet 725-0994

Wire, Electric, 14.0 Lg - Black
(Superseded to 629-0739)

$

$

Not available

21

Cub Cadet KB-68371-51210

Pump, Electric Fuel

$498.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 725-0894

Relay
(Superseded to 925-0894)

$

$

Not available

23

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0222

Washer, External Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

25

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

26

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

27

Cub Cadet 725-3060

Switch w/Nut
(Superseded to 925-3060)

$40.99

$

In Stock, only 2 left!

0

28

Cub Cadet 735-3006

Boot, Switch

$

$

Not available

29

Cub Cadet 725-3019

Cable Assy, Tail Light

$

$

Not available

30

Cub Cadet 725-3020

Bulb, Light

$

$

Not available

31

Cub Cadet 725-3018

Lens Assy, Tail Light

$

$

Currently unavailable

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

$

$

Not available

Cub Cadet 736-3018

Washer, Int Ext Lock, #8

$

$

Not available

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 732-3011

Spring, Headlight Retaining

$

$

Not available

33

Cub Cadet 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

34

Cub Cadet 703-0166

Retainer, Headlight

$

$

Not available

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

$

$

Not available

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 10

0

35

Cub Cadet KB-15694-65990

Timer, Light

$

$

Not available

36

Cub Cadet 725-3156

Harness, Lamp Timer

$

$

Currently unavailable
