1772 (149-711-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Battery Tray Parts Diagram

Super Garden Tractor

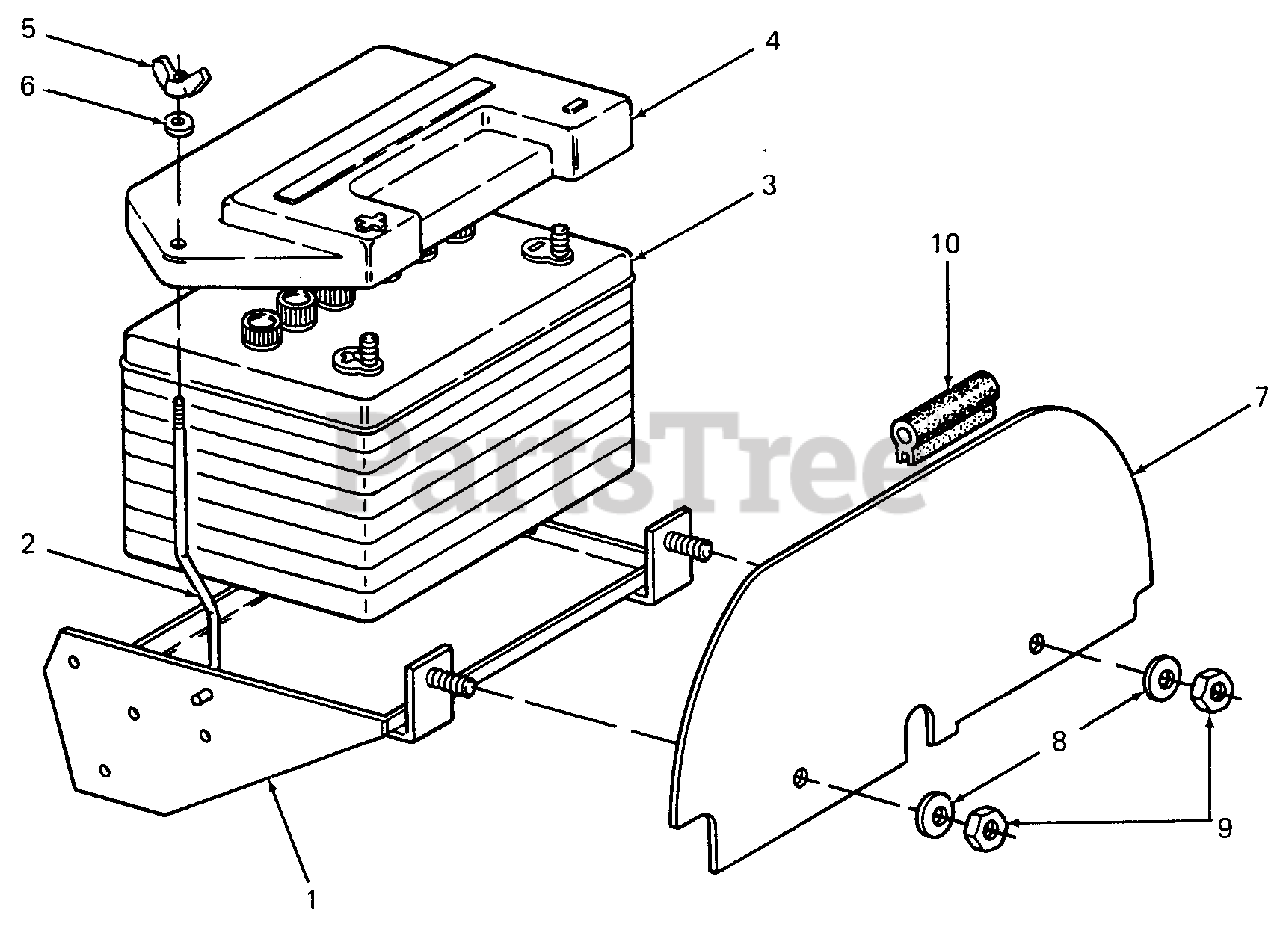

Battery Tray Parts Diagram

  • Title

1

Cub Cadet 703-0990

Tray, Battery

$

$

Not available

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp, 1/4-20 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3000

Washer, Flat, .281 X .75 X .105 Thk
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet 711-3142

Rod, Battery Hold Down

$

$

Not available

3

Cub Cadet 725-3133

Battery

$

$

Not available

4

Cub Cadet 759-3138

Cover, Battery w/Product Graphic

$

$

Currently unavailable

Cub Cadet 777-4491

Product Graphic - Battery Cover Danger

$

$

Currently unavailable

5

Cub Cadet 712-3044

Nut, Wing, 1/4-20

$

$

Not available

6

Cub Cadet 736-0142

Washer, Flat, .281 X .50 X .063 Thk

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-1078

Baffle, Heat

$

$

Not available

8

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 723-3050

Seal, Heat Baffle, 22.0 Lg

$

$

Not available
