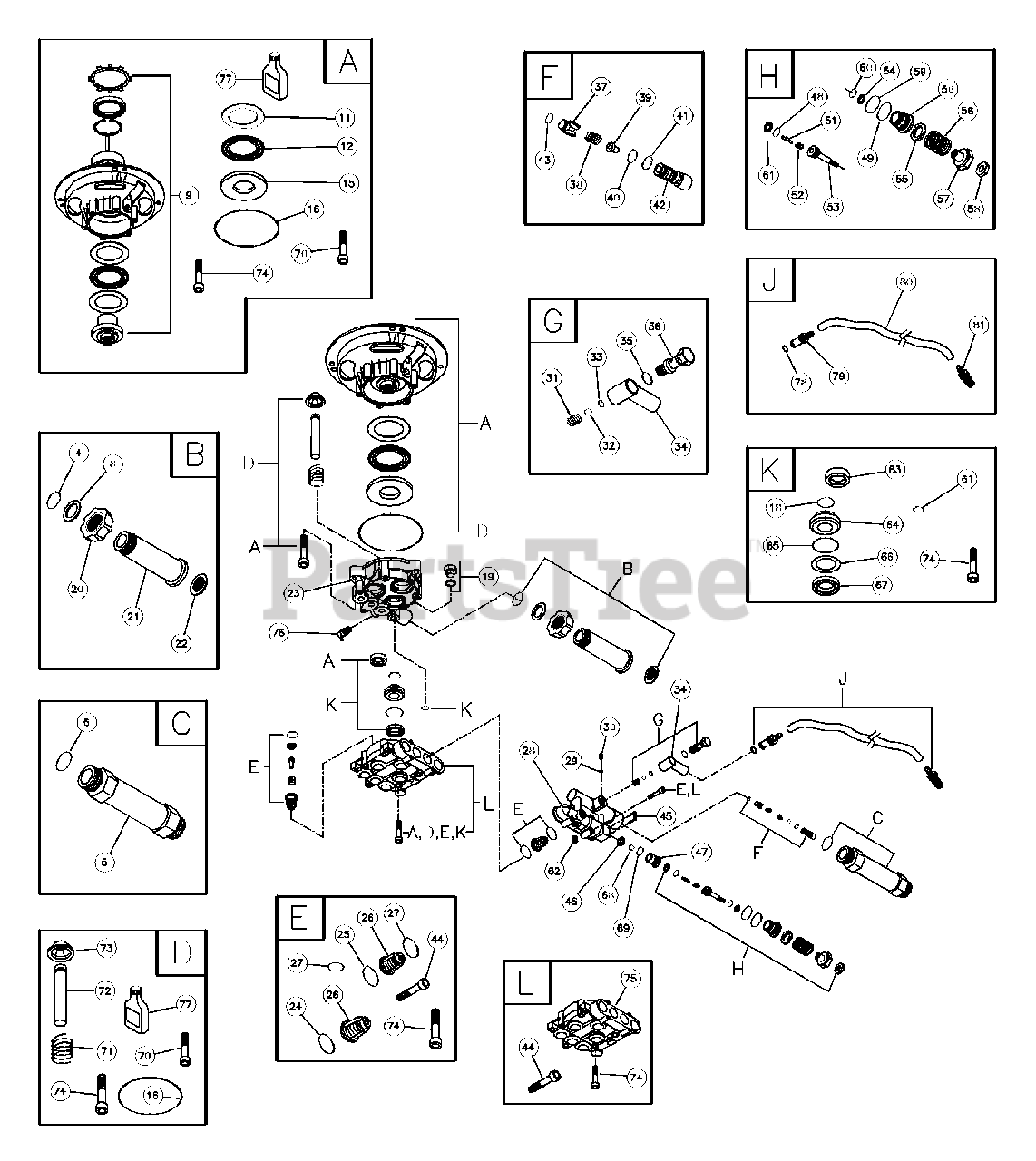

1770-0 - Generac 2,300 PSI Pressure Washer Pump Parts Diagram

2,300 PSI Pressure Washer

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

23

Briggs & Stratton 190626GS

CARTER

$56.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 190627GS

MANIFOLD

$100.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 190575GS

O-RING
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 190576GS

SCREW
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 190577GS

CONNECTION, Chemical Inlet

$6.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

46

Briggs & Stratton 190579GS

VALVE, Seat Plate, Brass
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 190580GS

VALVE, Seat, Stainless
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 190581GS

CAP

$7.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 190582GS

BALL, Stainless Steal
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton 190584GS

O-RING
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

76

Briggs & Stratton 21783GS

THERMO RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

77

Briggs & Stratton 190586GS

OIL BOTTLE

$11.99

$

In Stock, only 3 left!

0

A

Briggs & Stratton 190709GS

KIT,WOBBLE PLATE BEARING

Note: Service Kit includes all parts within the box.

$173.99

$

Usually ships in 2-12 days

0

9

ASSEMBLY, Engine Adapter

$

$

Not available

11

FLAT BEARING DISC

$

$

Not available

12

ROLLER BEARING

$

$

Not available

15

FLAT BEARING DISC

$

$

Not available

16

O-RING

$

$

Not available

70

SCREW

$

$

Not available

74

SCREW

$

$

Not available

77

OIL BOTTLE

$

$

Not available

B

Briggs & Stratton 190632GS

KIT,WATER INLET,ALUM

Note: Service Kit includes all parts within the box.

$

$

Not available

4

O-RING

$

$

Not available

8

WASHER

$

$

Not available

20

GARDEN HOSE w/ FINGER GRIP

$

$

Not available

21

EXTENSION, INLET

$

$

Not available

22

WASHER w/ FILTER

$

$

Not available

C

Briggs & Stratton 190634GS

KIT, OUTLET,ALUM
(Superseded to 201497GS)

Note: Service Kit includes all parts within the box.

$28.99

$

In Stock, Qty 20+

0

5

OUTLET EXTENTION

$

$

Not available

6

O-RING

$

$

Not available

D

Briggs & Stratton 190710GS

KIT, PISTON

Note: Service Kit includes all parts within the box.

$109.99

$

Usually ships in 2-12 days

0

16

O-RING

$

$

Not available

70

SCREW

$

$

Not available

71

SPRING

$

$

Not available

72

PISTON, Stainless Steel

$

$

Not available

73

SPRING PLATE

$

$

Not available

74

SCREW

$

$

Not available

77

OIL BOTTLE

$

$

Not available

E

Briggs & Stratton 190591GS

KIT, CHECK VALVES

Note: Service Kit includes all parts within the box.

$40.99

$

In Stock, Qty 5

0

24

O-RING

$

$

Not available

25

O-RING

$

$

Not available

26

ASSY.,Valve Group

$

$

Not available

27

O-RING

$

$

Not available

44

SCREW

$

$

Not available

74

SCREW

$

$

Not available

F

Briggs & Stratton 190592GS

KIT, INLET CHECK

Note: Service Kit includes all parts within the box.

$20.99

$

In Stock, Qty 6

0

37

VALVE, Non-Return

$

$

Not available

38

SPRING

$

$

Not available

39

INJECTION NOZZLE

$

$

Not available

40

O-RING

$

$

Not available

41

O-RING

$

$

Not available

42

INJECTION NIPPLE

$

$

Not available

43

O-RING

$

$

Not available

G

Briggs & Stratton 190593GS

KIT, CHEMICAL INJECTION

Note: Service Kit includes all parts within the box.

$

$

Not available

31

SPRING

$

$

Not available

32

BALL

$

$

Not available

33

O-RING

$

$

Not available

34

CONNECTION, Chemical Inlet

$

$

Not available

35

O-RING

$

$

Not available

36

SCREW, Fitting

$

$

Not available

H

Briggs & Stratton 190594GS

KIT, UNLOADER STEM

Note: Service Kit includes all parts within the box.

$

$

Not available

48

BACK RING

$

$

Not available

49

O-RING

$

$

Not available

50

VALVE, By Pass, Brass

$

$

Not available

51

PISTON

$

$

Not available

52

SPRING, Easy Start

$

$

Not available

53

PISTON, Body

$

$

Not available

54

RING, Back

$

$

Not available

55

SPACER

$

$

Not available

56

SPRING, Regulation Press

$

$

Not available

57

NUT, Regulation Press

$

$

Not available

58

NUT

$

$

Not available

59

O-RING

$

$

Not available

60

O-RING

$

$

Not available

61

O-RING

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, CHEMICAL HOSE

Note: Service Kit includes all parts within the box.

$

$

Not available

78

O-RING

$

$

Not available

79

TUBE, Inlet Support

$

$

Not available

80

TUBE, Chemical

$

$

Not available

81

FILTER

$

$

Not available

K

Briggs & Stratton 190595GS

KIT, SEAL SET

Note: Service Kit includes all parts within the box.

$96.99

$

Usually ships in 2-12 days

0

18

O-RING

$

$

Not available

61

O-RING

$

$

Not available

63

SEAL

$

$

Not available

64

PILOT SPACER, Brass

$

$

Not available

65

O-RING

$

$

Not available

66

WASHER

$

$

Not available

67

SEAL, H.P.

$

$

Not available

74

SCREW

$

$

Not available

L

Briggs & Stratton 190596GS

KIT, HEAD BRASS

Note: Service Kit includes all parts within the box.

$163.99

$

Usually ships in 2-12 days

0

44

SCREW

$

$

Not available

74

SCREW

$

$

Not available

75

HEAD, Pump

$

$

Not available
