176 R (128-176R100) - Cub Cadet Walk-Behind Mower (1988) Parts For Rotary Mower Part 2 Parts Diagram

Walk-Behind Mower

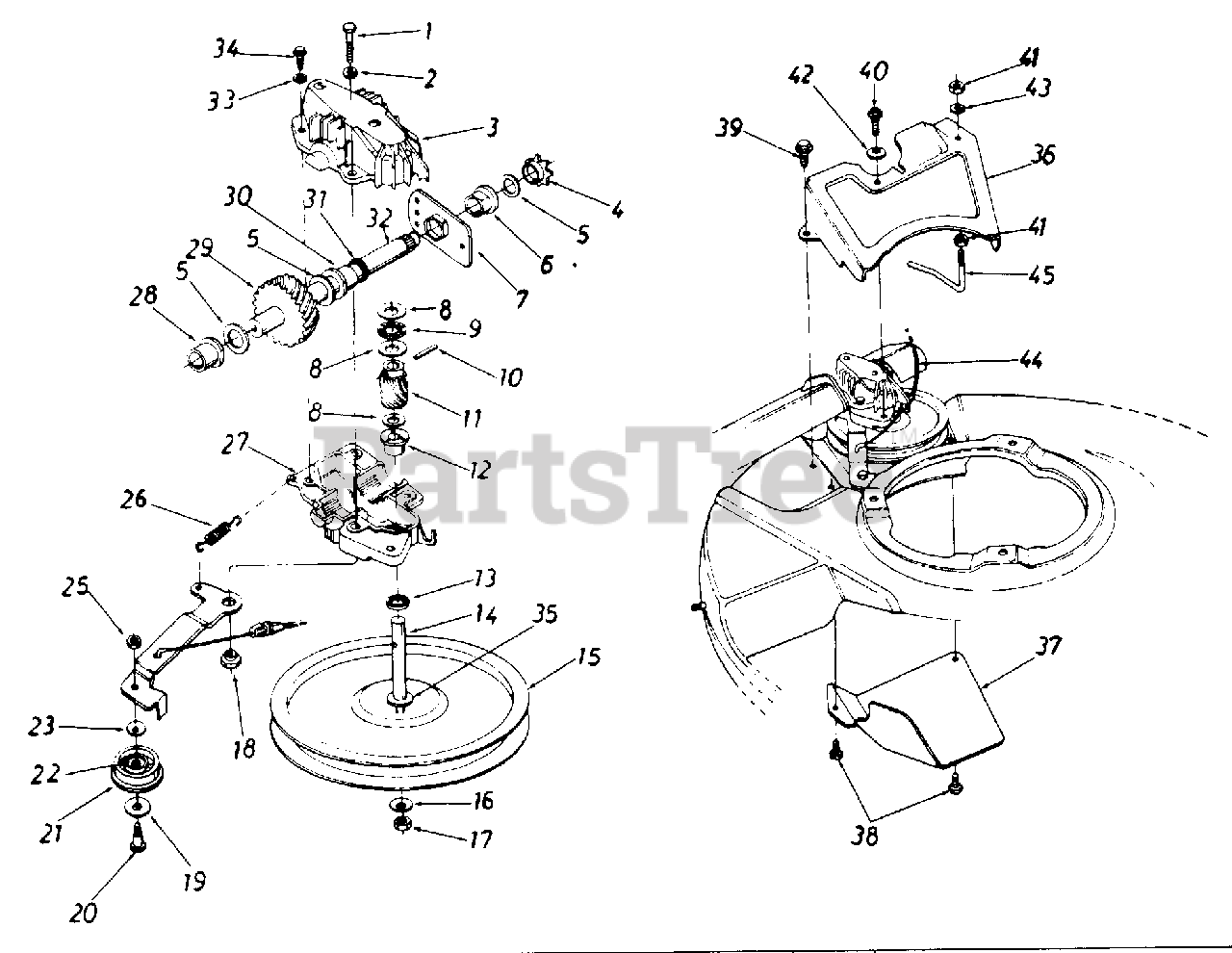

Parts For Rotary Mower Part 2 Parts Diagram

  • Title
1

Cub Cadet 710-0106

SCREW-HEX 1/4-20 X 1.25

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 717-0418

HOUSING HALF-UPPER
(Superseded to 717-0418A)

$

$

Not available

4

Cub Cadet 713-0400

SPROCKET-7T

$

$

Not available

5

Cub Cadet 736-0336

WASHER-FL
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 741-0413

BEARING-HEX FLANGE

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 16500

BEARING-CUP HEX
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0314

WASHER-THRUST.382 X .684

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0479

BEARING-THRUST

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 715-0152

PIN-SPRING-SPIR 1/8 X .625

$

$

Not available

11

Cub Cadet 717-0420

GEAR-WORM

$

$

Not available

12

Cub Cadet 748-0208

BEARING-FLANGE
(Superseded to 748-0208A)

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-0212

SEAL-OIL-.375 ID

$

$

Not available

14

Cub Cadet 738-0708

KIT-TRAN PUL SHFT
(Superseded to 753-0448)

$

$

Not available

15

Cub Cadet 756-0330

PULLEY
(Superseded to 756-0330A)

$

$

Not available

16

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0351

NUT-LH THD-1/4 X 28
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

Cub Cadet 738-0440

SPACER-SHLD

$5.99

$

In Stock, only 4 left!

0

19

Cub Cadet 736-0344

WASHER-FL .995 X .032

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-0691

SCREW-SHLD
(Superseded to 938-0691)

$

$

Not available

21

Cub Cadet 756-0447

KIT-PULLEY
(Superseded to 753-0518)

$27.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 741-0482

BEARING-NEEDLE
(Superseded to 741-0875)

$

$

Not available

23

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 17052

BRACKET ASSY-IDLER
(Superseded to 17052A)

$

$

Not available

25

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

27

Cub Cadet 717-0419

HOUSING HALF-LOWER

$

$

Not available

28

Cub Cadet 741-0415

BEARING-FLANGE
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 717-0422

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

30

Cub Cadet 741-0414

BEARING-FLANGE

$10.99

$

Usually ships in 3-6 days

0

31

$10.99

$

In Stock, Qty 15

0

32

Cub Cadet 738-0607

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

33

Cub Cadet 736-0722

WASHER-LOCK-#10

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0410

WASHER-HEX
(Superseded to 936-0410)

$

$

Not available

36

Cub Cadet 17058

GUARD-BELT
(Superseded to 17058A-0637)

$

$

Not available

37

Cub Cadet 17064

COVER-BELT

Variations

Cub Cadet 17064-0637

BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0896

SCREW-HEX B-TAP 1/4-.62

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

Cub Cadet 746-0650

CABLE-CLUTCH X 50.0
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 747-0549

GUARD-BELT

$

$

Not available

Cub Cadet 717-0417

TRANSMISSION-COMP
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0
