1748F (55AF3DAM195) - MTD Pro Walk-Behind Mower Kawasaki Lubrication Equipment Parts Diagram

Pro Walk-Behind Mower

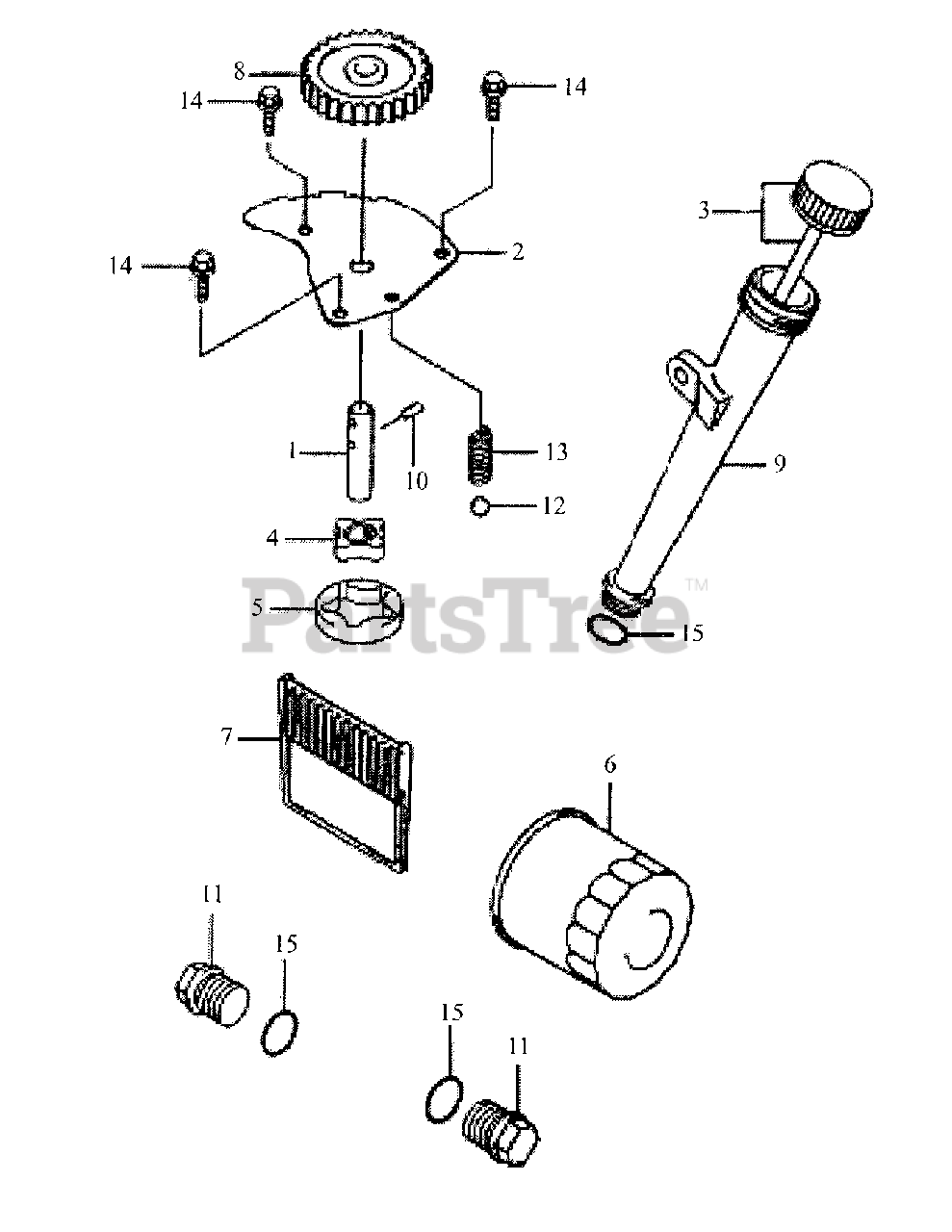

Kawasaki Lubrication Equipment Parts Diagram

  • Title

1

MTD KM-13107-2099

Shaft, Oil Pump
(Superseded to KM-13107-2296)

$12.99

$

In Stock, only 1 left!

0

2

MTD KM-13270-7004

Plate

$

$

Not available

3

MTD KM-14075-7009

Cap Assembly
(Superseded to KM-14075-0708)

$10.99

$

In Stock, Qty 11

0

4

MTD KM-16154-2053

Rotor, Pump In

$12.99

$

In Stock, only 4 left!

0

5

MTD KM-16154-2054

Rotor, Pump Out

$9.49

$

In Stock, only 4 left!

0

6

MTD KM-49065-7010

Filter, Oil
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

7

MTD KM-49065-7001

Filter Screen, Oil

$3.49

$

Usually ships in 2-5 days

0

8

MTD KM-59051-7004

Gear, Spur
(Superseded to KM-59051-6001)

$

$

Not available

9

MTD KM-59231-7005

Filler Tube

$5.99

$

In Stock, Qty 5

0

10

MTD KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 12

0

11

MTD KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

12

MTD KM-92140-7003

Ball

$1.49

$

In Stock, Qty 13

0

13

MTD KM-92145-7002

Spring

$

$

Not available

14

MTD KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

15

MTD KM-670D2016

O-Ring

$1.99

$

In Stock, Qty 20+

0
