1748F (55AF3DAM195) - MTD Pro Walk-Behind Mower Kawasaki Air Filter & Muffler Parts Diagram

Pro Walk-Behind Mower

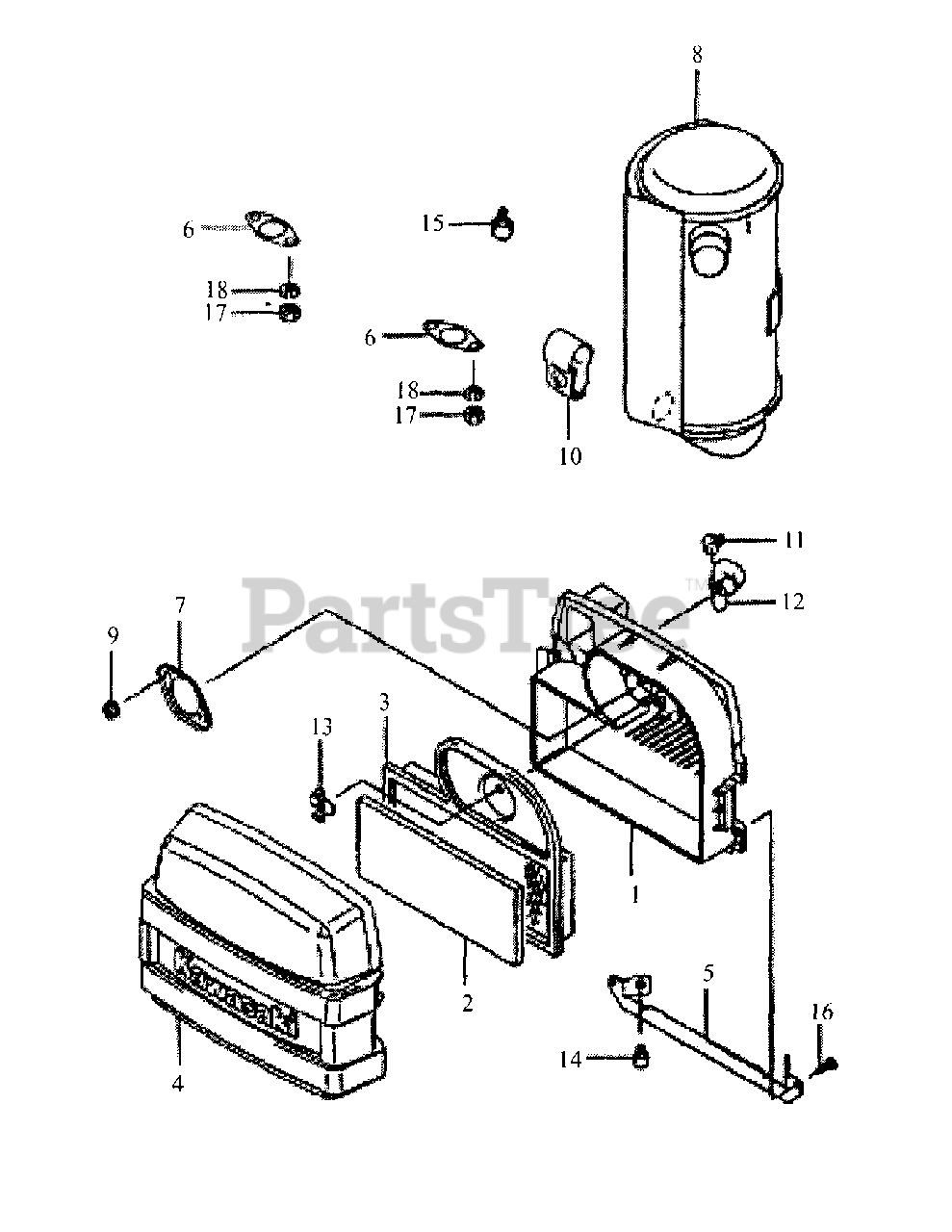

Kawasaki Air Filter & Muffler Parts Diagram

  • Title

1

MTD KM-11038-7006

Case, Air Filter

$70.99

$

Usually ships in 2-5 days

0

2

MTD KM-11013-7033

Element, Air Filter

$5.99

$

In Stock, Qty 20+

0

3

MTD KM-11013-7002

Element, Air Filter

$21.99

$

In Stock, Qty 20+

0

4

MTD KM-11038-7013

Case, Air Filter

$67.99

$

In Stock, only 2 left!

0

5

MTD KM-11050-7006

Bracket

$9.49

$

Usually ships in 2-5 days

0

6

MTD KM-11060-7021

Gasket, Muffler

$2.49

$

In Stock, Qty 20+

0

7

MTD KM-13270-7001

Plate

$5.49

$

In Stock, only 2 left!

0

8

MTD KM-49070-6001

Muffler

$147.99

$

In Stock, Qty 7

0

9

MTD KM-92015-1367

Nut

$4.49

$

In Stock, Qty 20+

0

10

MTD KM-92072-7012

Band

$14.99

$

In Stock, Qty 9

0

11

MTD KM-92170-7003

Clamp

$1.49

$

In Stock, Qty 20+

0

12

MTD KM-92191-7001

Tube

$

$

Not available

13

MTD KM-92210-7004

Nut

$3.49

$

In Stock, Qty 20+

0

14

MTD KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

15

MTD KM-130BA0816

Bolt, Flange

$1.99

$

In Stock, only 4 left!

0

16

MTD KM-232B0514

Screw
(Superseded to KM-232AA0514)

$0.99

$

In Stock, only 3 left!

0

17

MTD KM-317R0800

Nut, Hex

$2.99

$

In Stock, Qty 16

0

18

MTD KM-461DA0800

Washer, Spring

$0.99

$

In Stock, Qty 20+

0
