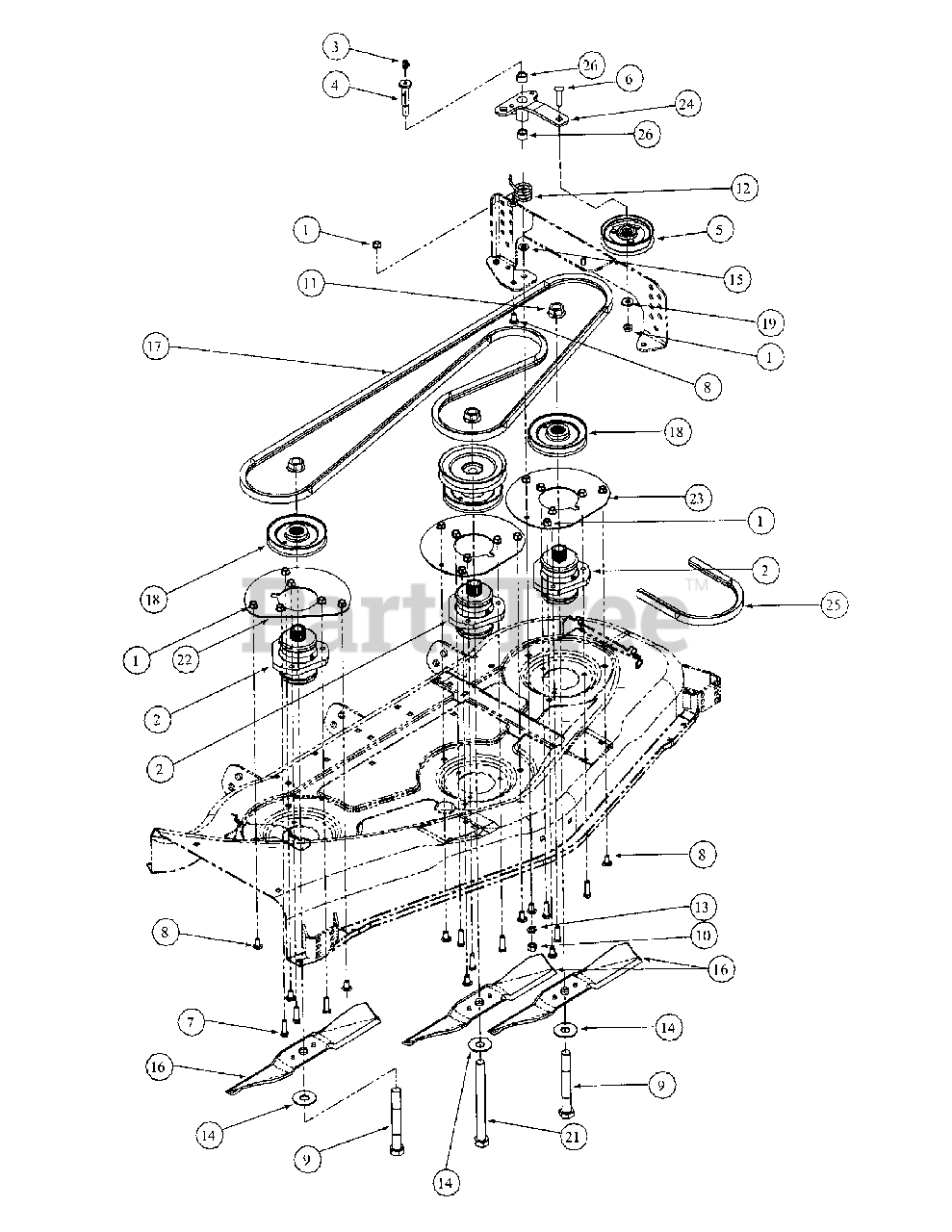

1748F (55AF3DAM195) - MTD Pro Walk-Behind Mower Float Deck Spindle Assembly Parts Diagram

Pro Walk-Behind Mower

Float Deck Spindle Assembly Parts Diagram

  • Title
1

MTD 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

MTD 903-0043A

Spindle Assembly w/Cups

$

$

Not available

3

MTD 737-3004

Fit, 90 Tapper Grease 1/4-28

$11.99

$

In Stock, only 4 left!

0

4

MTD 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

5

MTD 756-3005

Idler Pulley Assembly, 4.00"

$45.99

$

In Stock, Qty 20+

0

6

MTD 710-0560

Screw, 3/8-16, 1.75 Hex Carrier

$6.99

$

In Stock, Qty 12

0

7

MTD 710-3005

HHCS, 3/8-16, 1.25

$3.99

$

In Stock, Qty 10

0

8

MTD 710-3178

Carrige Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

9

MTD 01000373

HHCS, 3/4-16, 6.00

Note: NLA

$

$

Not available

10

MTD 912-3019

Nut, Hex, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

11

MTD 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

12

MTD 932-3009

Spring Idler Torsion

$24.99

$

In Stock, only 4 left!

0

13

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

14

MTD 736-3014

Flange Washer, .781, ID: 2.00 OD: .105

$4.49

$

In Stock, only 4 left!

0

15

MTD 936-3015

Flange Washer, .469, ID: .875 OD: .105

$4.49

$

In Stock, only 1 left!

0

16

MTD 01002072

Mower Blade 16.5 LG. High Lift

$

$

Not available

17

MTD 01000399

V Belt, A Sect x 107.3 LG

$62.99

$

Usually ships in 3-6 days

0

18

MTD 756-3058

Pulley-V 4.65 P.O.

$

$

Not available

19

MTD 736-3052

Washer, Flange, .406 ID: 1.0 OD-.105

$4.49

$

In Stock, Qty 20+

0

20

MTD 01000851

Double Pulley

$

$

Not available

21

MTD 01002074

HHCS: 3/4-16, 8.00
(Superseded to 02001296)

$37.99

$

In Stock, only 1 left!

0

22

MTD 01002061

Cover Plate, Right Hand

$

$

Not available

23

MTD 01002062

Cover Plate

$

$

Not available

24

MTD 01002051

Idler Arm Assembly, W/Briggs

$

$

Not available

25

MTD 01001710

V Belt, B Sect x 63.04 EL
(Superseded to 01001710P)

$92.99

$

Usually ships in 3-6 days

0

26

MTD 01000308

Bearing Sleeve
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0
