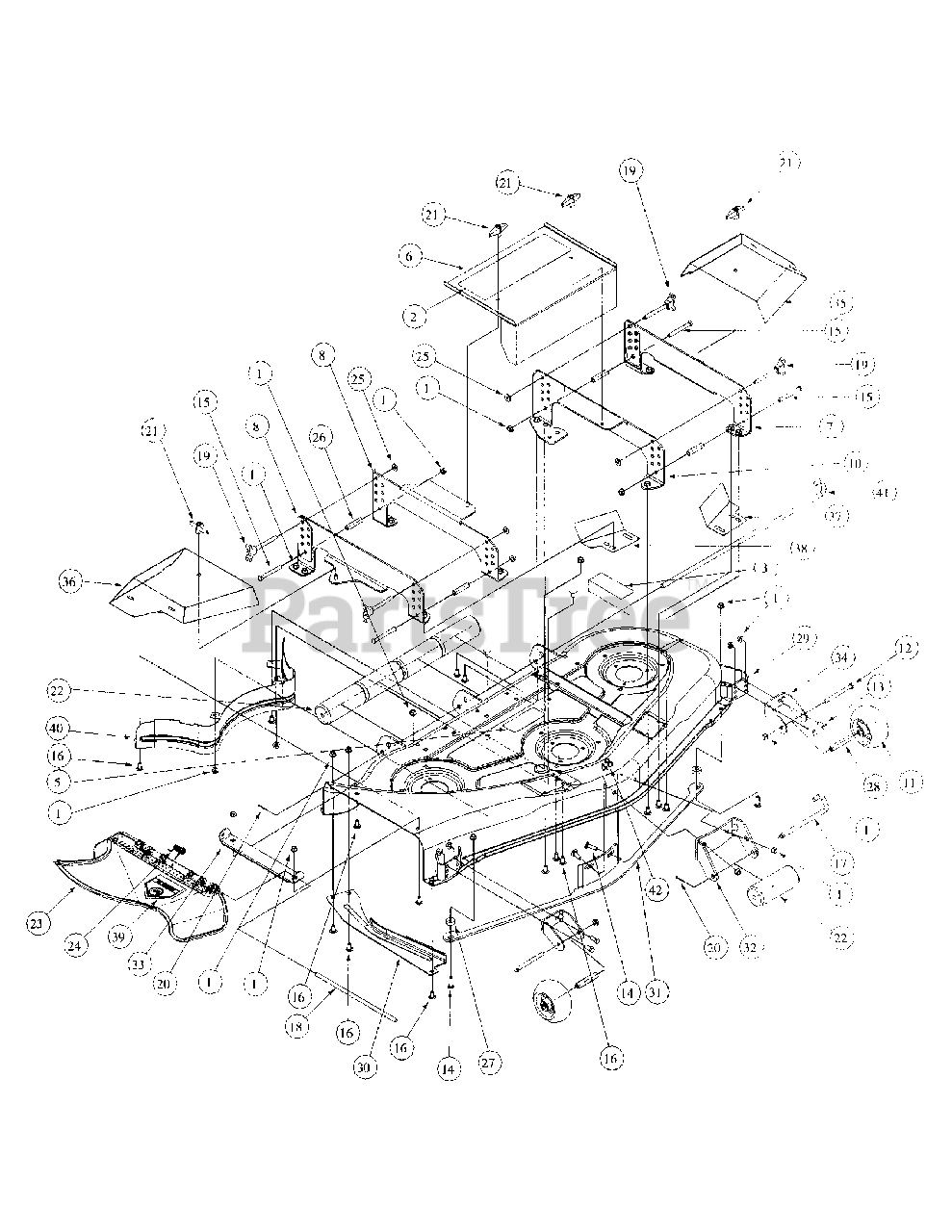

1748F (55AF3DAM195) - MTD Pro Walk-Behind Mower Float Cutter Deck Parts Diagram

Pro Walk-Behind Mower

Float Cutter Deck Parts Diagram

  • Title

1

MTD 01001033

Nut, Hex, 3/8-16 Flange Lock

$

$

Not available

2

MTD 01001033

Label MTD Pro

$

$

Not available

3

MTD 00030633

Decal, Rotating Blade

$

$

Not available

4

MTD 00030634

Decal, Warning Safety

$

$

Not available

5

MTD 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

6

MTD 01002063

Cover, Belt Center

Note: NLA

$

$

Not available

7

MTD 01002052

Hanger Assembly, Outer Left Handle

$

$

Not available

8

MTD 01002053

Hanger Assembly, Inner Right Handle

$

$

Not available

?9

MTD 01002054

Hanger Assembly, Outer Right Handle

$

$

Not available

10

MTD 01002055

Hanger Assembly, Inner Left Handle

$

$

Not available

11

MTD 634-3159

Wheel, Complete, 5.00 Diameter

$34.99

$

In Stock, Qty 20+

0

12

MTD 710-0944

HHCS, 3/8-16, 4.25

$10.99

$

In Stock, Qty 14

0

13

MTD 710-3001

HHCS, 3/8-16, .88

$7.49

$

In Stock, Qty 9

0

14

MTD 710-3034

Carrige Screw, 3/8-16x1.25

$3.99

$

In Stock, Qty 5

0

15

MTD 710-3130

HHCS, 3/8-16, 3.25

$10.99

$

In Stock, only 3 left!

0

16

MTD 710-3178

Carrige Bolt, 3/8-16 x .75 LG

$4.49

$

In Stock, Qty 20+

0

17

MTD 911-3314

Roller Pin, 1/2 Diameter x 7.31 LG
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

18

MTD 711-3318

Pin Hinge, .375 x 12.93

$

$

Not available

19

MTD 01003993

Pin, Quick Release, 3/8 Dia. x 3.1
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

20

MTD 914-0115

Cotter Pin, 1/8 x 1.0
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

21

MTD 720-04072A

Knob Assembly, Wingnut 5/16-18

$6.99

$

In Stock, Qty 20+

0

22

MTD 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

23

MTD 931-3131A

Deflector Chute

$108.99

$

In Stock, only 4 left!

0

24

MTD 732-3070A

Torsion Spring

$11.99

$

In Stock, only 3 left!

0

25

MTD 736-0262

Flat Washer, .385 IDx.870 ODx.092

$3.99

$

Usually ships in 3-6 days

0

26

MTD 01000395

Spacer, Stop Deck

$

$

Not available

27

MTD 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, Qty 5

0

28

MTD 750-3193

Spacer Wheel

$18.99

$

In Stock, Qty 20+

0

29

MTD 01002079

Mower Deck Assembly

Note: NLA

$

$

Currently unavailable

30

MTD 01002056

Weldment, Guard Assembly

$

$

Not available

31

MTD 01002057

Weldment Front Bar 48"

$

$

Not available

32

MTD 703-2091A-0637

Front Roller Bracket

$76.99

$

Usually ships in 3-6 days

0

33

MTD 01007393

Mounting Bracket, Chute

$

$

Not available

34

MTD 01007394

Castor Bracket

$

$

Not available

35

MTD 01002066

Belt Cover, Left Handle, 48"

$

$

Not available

36

MTD 01002067

Belt Cover, 48" Deck R.H.

$

$

Not available

37

MTD 01002069

Filler Plate, Left Hand

$

$

Not available

38

MTD 01002068

Filler Plate, Right Hand

$

$

Not available

39

MTD 01002166

Decal, Danger, Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

40

MTD 01002234

Baffle, Right Rear, Inner 48" Deck

Note: NLA

$

$

Currently unavailable

41

MTD 02002799

Roller Pin
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

42

MTD 00026313

Label, MTD Pro 48

$

$

Not available
