1740 - Weed Eater String Trimmer SNOW SHOVEL ATTACHMENT Parts Diagram

String Trimmer

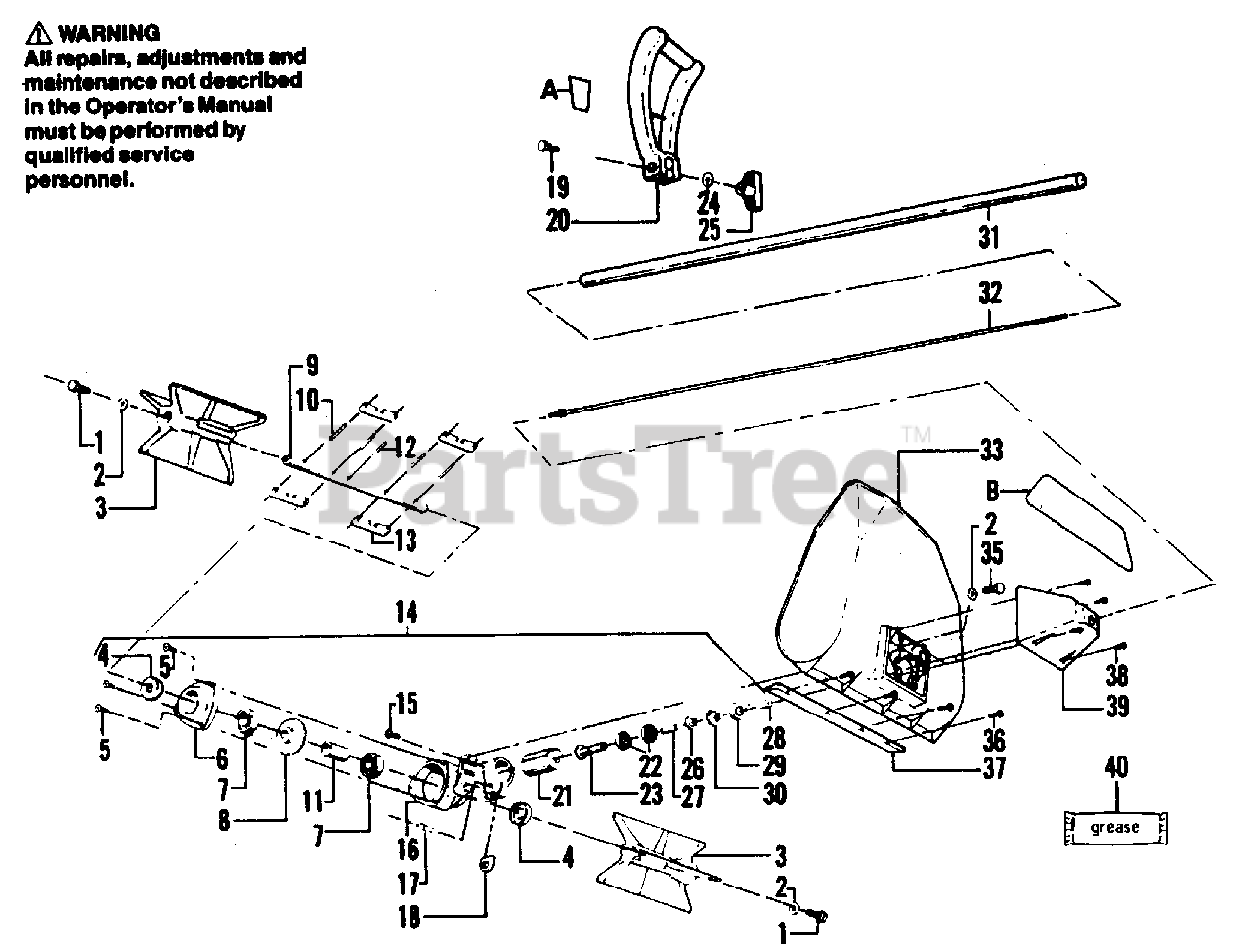

SNOW SHOVEL ATTACHMENT Parts Diagram

  • Title

1

Poulan 530015426

Screw - Impeller - #1/4 - 20 x 1/2" - Hex Cap

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530001503

Washer - #1/4 - Impeller & Gear Box Mtg.

$

$

Not available

3

Poulan 530093883

Impeller

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530093119

Oil Seal - Double Lip

$

$

Not available

5

Poulan 530093865

Screw - Gear Housing

$

$

Not available

6

Poulan 530093864

Gear Housing Cover

$

$

Not available

7

Poulan 530093118

Bearing - Shaft

$

$

Not available

8

Poulan 530093867

Gear - Spiral Bevel

$

$

Not available

9

Poulan 530093117

Output Shaft

$

$

Not available

10

Poulan 530093034

Pin - Spiral - Brace

$

$

Not available

11

Poulan 530093807

Collar - Shaft

$

$

Not available

12

Poulan 501093124

Pin Spiral - Gear

$

$

Not available

12

Poulan 530093124

Pin Spiral - Gear

$

$

Not available

13

Poulan 530093036

Brace - Impeller

$

$

Not available

14

Poulan 530093861

Gear Box Ass'y (Inc.4-8, 11, 15-18 & 21-30)

$

$

Not available

15

Poulan 530015216

Screw - Index #10 - 24 x 7/16" Pan Hd.

$

$

Not available

16

Poulan 530093866

Gear Housing

$

$

Not available

17

Poulan 530015239

Screw - Pinch Clamp - #1/4 - 20 x 3/4" - Hex Socket Head

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 530092308

Washer - Fiber Filler

$

$

Not available

19

Poulan 530092061

Screw - #1/4 - 20 x 1-3/4" Assist Handle

$

$

Not available

20

Poulan 530010722

Assist Handle

$

$

Not available

21

Poulan 530093863

Sleeve - Housing

$

$

Not available

22

Poulan 530092329

Bearing - Pinion

$

$

Not available

23

Poulan 530093868

Pinion Gear - Spiral Bevel

$

$

Not available

24

Poulan 530092062

Washer - #1/4 - Assist Handle

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530092059

Knob - Assist Handle

$9.99

$

Usually ships in 3-10 days

0

26

Poulan 530091573

Retaining Ring - Pinion

$

$

Not available

27

Poulan 530093128

Collar Pinion

$

$

Not available

28

Poulan 530093875

Plug - Grease

Note: It is recommended that Grease Plug 193875 be serviced only by an authorized service dealer.

$

$

Not available

29

Poulan 530093129

Oil Seal - Single Lip

$

$

Not available

30

Poulan 530091574

Retaining Ring - Bearing

$

$

Not available

31

Poulan 530093933

Drive Shaft Housing Ass'y. (Inc.32)

$

$

Not available

32

Poulan 530093932

Drive Shaft

$

$

Not available

33

Poulan 530010726

Housing - Impeller

$

$

Not available

35

Poulan 530015459

Screw - #1/4 - 20 x 3/4" - Gear Box Mounting

$

$

Not available

36

Poulan 530015451

Screw - Scraper Bar - #8 - 12 x 3/4" - Fil. Hd.

$

$

Not available

37

Poulan 530093029

Scraper Bar

$

$

Not available

38

Poulan 530015451

Screw - Rear Cover - #8 - 12 x 3/4" - Fil. Hd.

$

$

Not available

39

Poulan 530092563

Cover - Rear

$

$

Not available

40

Poulan 530030102

Grease (Optional)
(Superseded to 952708514)

$

$

Not available

A

Poulan 530026225

Decal - Assist Handle

$

$

Not available

B

Poulan 530026609

Decal - Caution and Model

$

$

Not available

Poulan 530060769

Carton (Not a serviceable part)

$

$

Not available

Poulan 530066424

Operator's Manual

$

$

Not available
