1730 HD (1696505-00) - Briggs & Stratton 30" Snow Thrower, 16.5 Gross TP (2015) Auger Housing Group Parts Diagram

30" Snow Thrower, 16.5 Gross TP

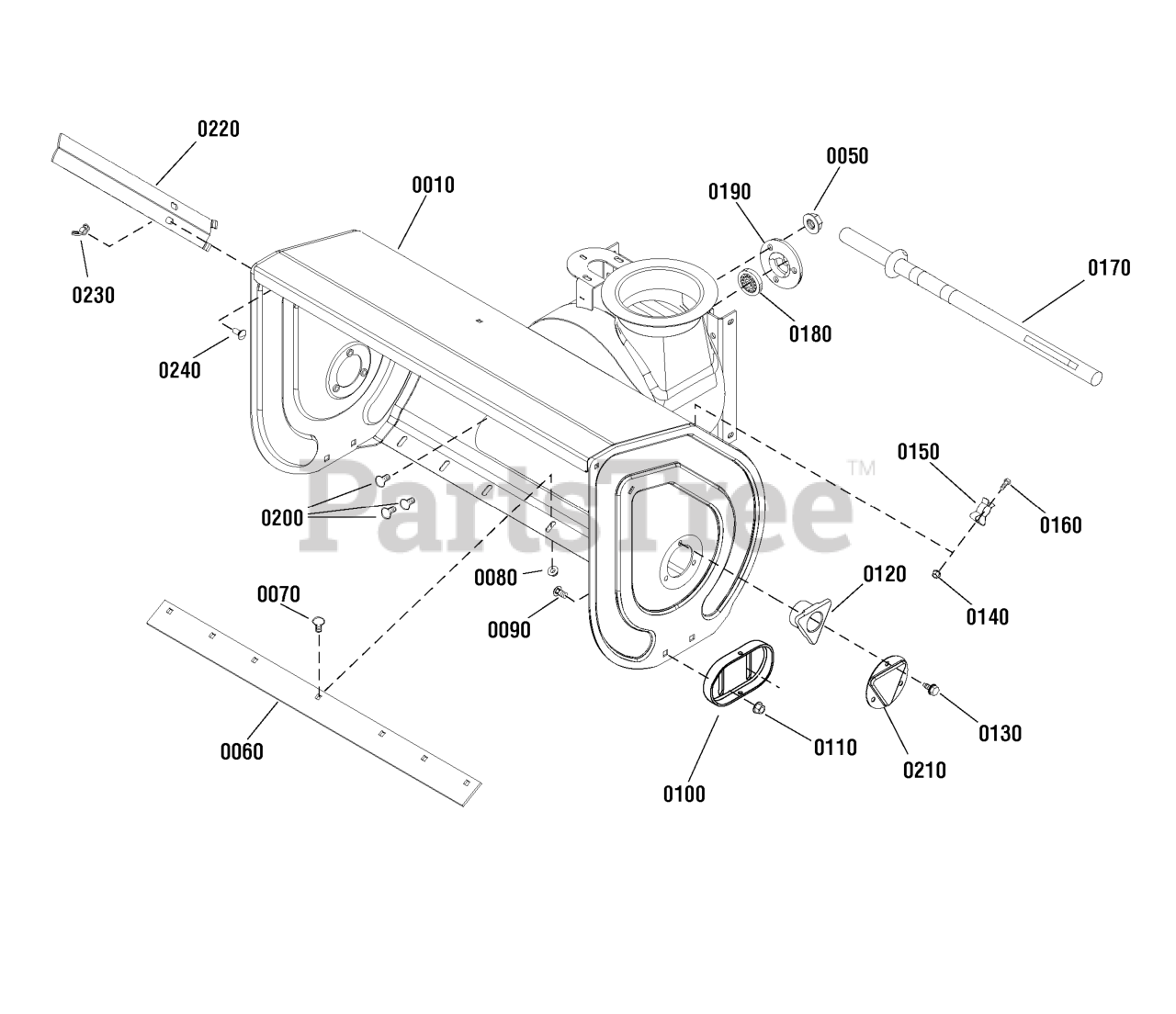

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687776YP

AUGER HOUSING KIT, 30"

$740.99

$

Usually ships in 2-12 days

0

0050

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0060

Murray 1732385BMYP

BLADE, Scraper, 30

$51.99

$

In Stock, only 4 left!

0

0070

Murray 1960699SM

BOLT, Carriage, Short Neck, 5/16-18 x 5/8, G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

0080

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0090

Murray 7091790YP

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

0100

Murray 1750222YP

SKID SHOE

$37.99

$

In Stock, only 2 left!

0

0110

Murray 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 1733103SM

BEARING, Flange, 1.3/8 ID x 3-3/4 OD

$11.99

$

In Stock, Qty 5

0

0130

Murray 1931202SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

0140

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0150

Murray 1736620YP

CLAMP

$6.49

$

Usually ships in 2-12 days

0

0160

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 2 left!

0

0180

Murray 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD

$11.99

$

In Stock, Qty 20+

0

0190

Murray 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, Qty 15

0

0200

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0210

Murray 1734932BMYP

COVER, Bushing

$11.99

$

Usually ships in 2-12 days

0

0220

Murray 1733102BMYP

DRIFT CUTTER
(Superseded to 1733102ASM)

$31.99

$

In Stock, only 4 left!

0

0230

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0240

Murray 703141

NUT, Wing, 5/16-18

$3.49

$

In Stock, only 3 left!

0
