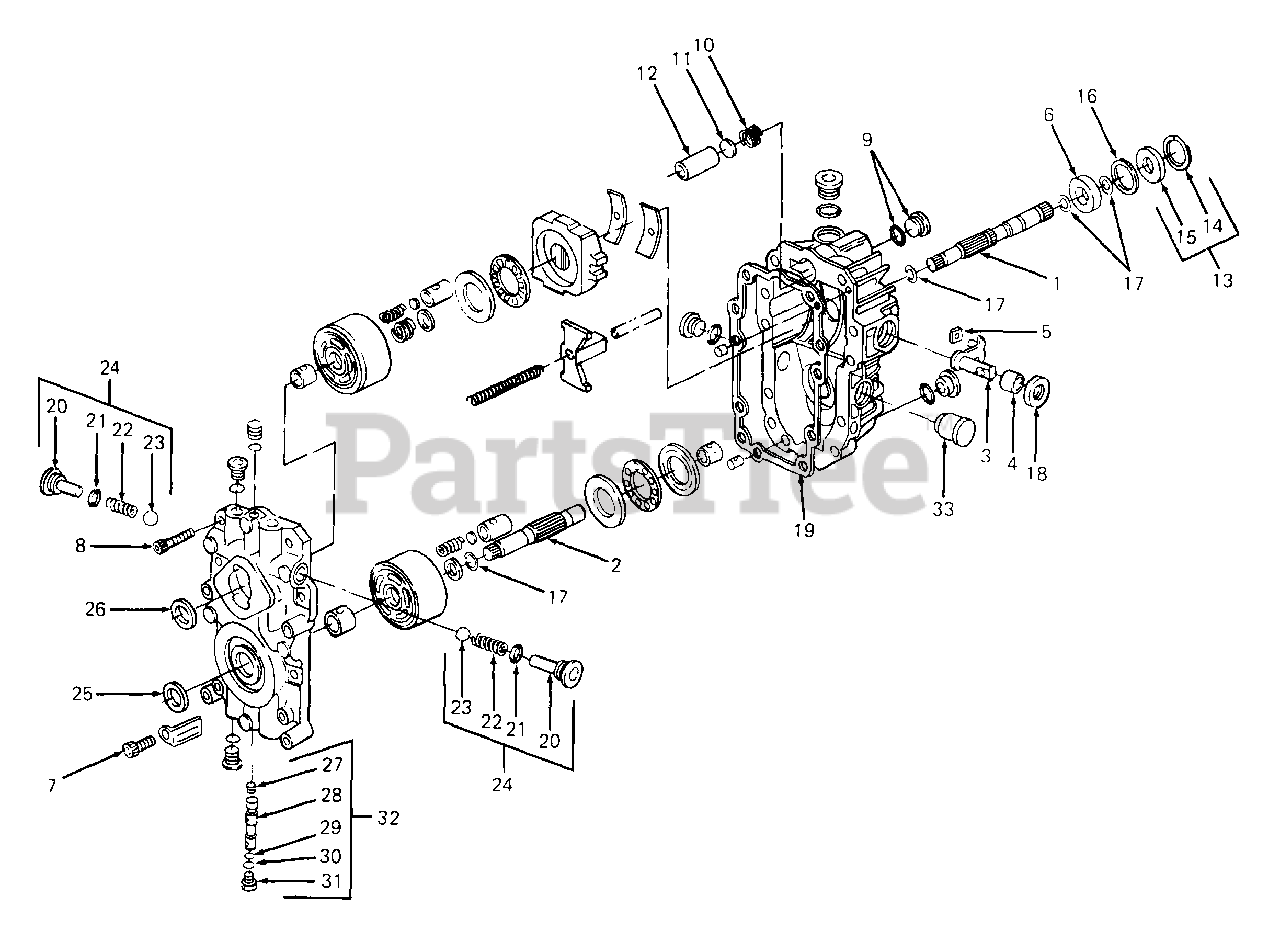

1730 (132-273-100) - Cub Cadet Garden Tractor (SN: 207401 - 239300) Hydro Pump Parts Diagram

Garden Tractor

Hydro Pump Parts Diagram

  • Title

1

Cub Cadet SU-2003022

Shaft - Pump
(Superseded to HG-2003022P)

$

$

Not available

2

Cub Cadet SU-2003033

Shaft - Motor

$

$

Not available

3

Cub Cadet SU-2003005

Arm, Trunnion
(Superseded to HG-2003005)

$215.99

$

Usually ships in 3-6 days

0

4

Cub Cadet SU-2003009

Bearing, Journal

$

$

Currently unavailable

5

Cub Cadet SU-2000015

Guide, Slot
(Superseded to HG-2000015)

$21.99

$

Usually ships in 3-6 days

0

6

Cub Cadet SU-2003043

Bearing, Ball
(Superseded to HG-2003043P)

$73.99

$

Usually ships in 3-6 days

0

7

Cub Cadet SU-9007314-0805

Screw, Socket Head

$

$

Not available

8

Cub Cadet SU-9007314-0808

Screw, Socket Head
(Superseded to HG-9007314-0808)

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet SU-9005110-8700

Plug
(Superseded to HG-9005110-8700)

$39.99

$

Usually ships in 3-6 days

0

10

Cub Cadet SU-2003010

Spring, Filter
(Superseded to HG-2003010)

$

$

Not available

11

Cub Cadet SU-2000011

Washer, Filter
(Superseded to HG-2000011)

$

$

Not available

12

Cub Cadet SU-2003003

Filter
(Superseded to HG-2003003)

$

$

Not available

13

Cub Cadet SU-2513001

Kit, Seal

Note: Includes Ref No. 14 & 15

$

$

Not available

14

Cub Cadet 716-3007

Ring, Retaining
(Superseded to 716-04098)

$5.49

$

Usually ships in 3-6 days

0

15

Cub Cadet SU-9008000-0128

Seal, Lip
(Superseded to HG-9008000-0128)

$19.99

$

In Stock, only 2 left!

0

16

Cub Cadet SU-2003018

Spacer
(Superseded to HG-2003018)

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet SU-2003016

Ring, Retaining
(Superseded to HG-2003016)

$7.99

$

Usually ships in 3-6 days

0

18

Cub Cadet SU-9008000-0126

Seal, Lip
(Superseded to HG-9008000-0126)

$15.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SU-2003001

Gasket
(Superseded to HG-2003001)

Note: Used on pumps w/serial no. A8925 & below

$

$

Not available

Cub Cadet SU-2003060

Gasket
(Superseded to HG-2003060)

Note: Used on pumps w/serial no. A8926 & above

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet SU-2000020

Plug, Check Valve

$

$

Not available

21

Cub Cadet SU-9004201-3700

O-Ring
(Superseded to HG-9004201-3700)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet SU-2003012

Spring

$

$

Currently unavailable

23

Cub Cadet 741-0359

Ball

$

$

Not available

24

Cub Cadet SU-2513014

Kit, Check Valve
(Superseded to HG-2513014)

Note: Includes Ref No. 20, 21, 22, & 23

$

$

Not available

25

Cub Cadet SU-9008000-0127

Seal, Lip
(Superseded to HG-9008000-0127)

$

$

Not available

26

Cub Cadet SU-9008000-0125

Seal, Lip
(Superseded to HG-50442P)

$

$

Not available

27

Cub Cadet SU-2003011

Spring
(Superseded to HG-2513011)

$171.99

$

Usually ships in 3-6 days

0

28

Cub Cadet SU-2003061

Spool, Bypass

$

$

Not available

29

Cub Cadet SU-9004175-0027

O-Ring
(Superseded to HG-9004175-0027)

$

$

Not available

30

Cub Cadet SU-9004201-2500

O-Ring
(Superseded to HG-9004201-2500)

$

$

Not available

31

Cub Cadet SU-2000018

Plug

$

$

Not available

32

Cub Cadet SU-2513012

Kit, Bypass Valve
(Superseded to HG-2513011)

Note: Includes Ref No. 27, 28, 29, 30 & 31

$171.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 717-3049

Reservoir
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0

Cub Cadet SU-2003084

Diaphragm
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0

Cub Cadet SU-2513013

Kit, Overhaul Seal
(Superseded to HG-2513013)

Note: Includes Ref No. 14, 15, 16, 17 (Qty 4), 18, 19 (Qty 2), 21 (Qty 2), 25, 26, 29 & 30

$63.99

$

Usually ships in 3-6 days

0
