1723 H (1693812) - AGCO 54" Garden Tractor, 23hp Lift Mechanism Group - Hydraulic Parts Diagram

54" Garden Tractor, 23hp

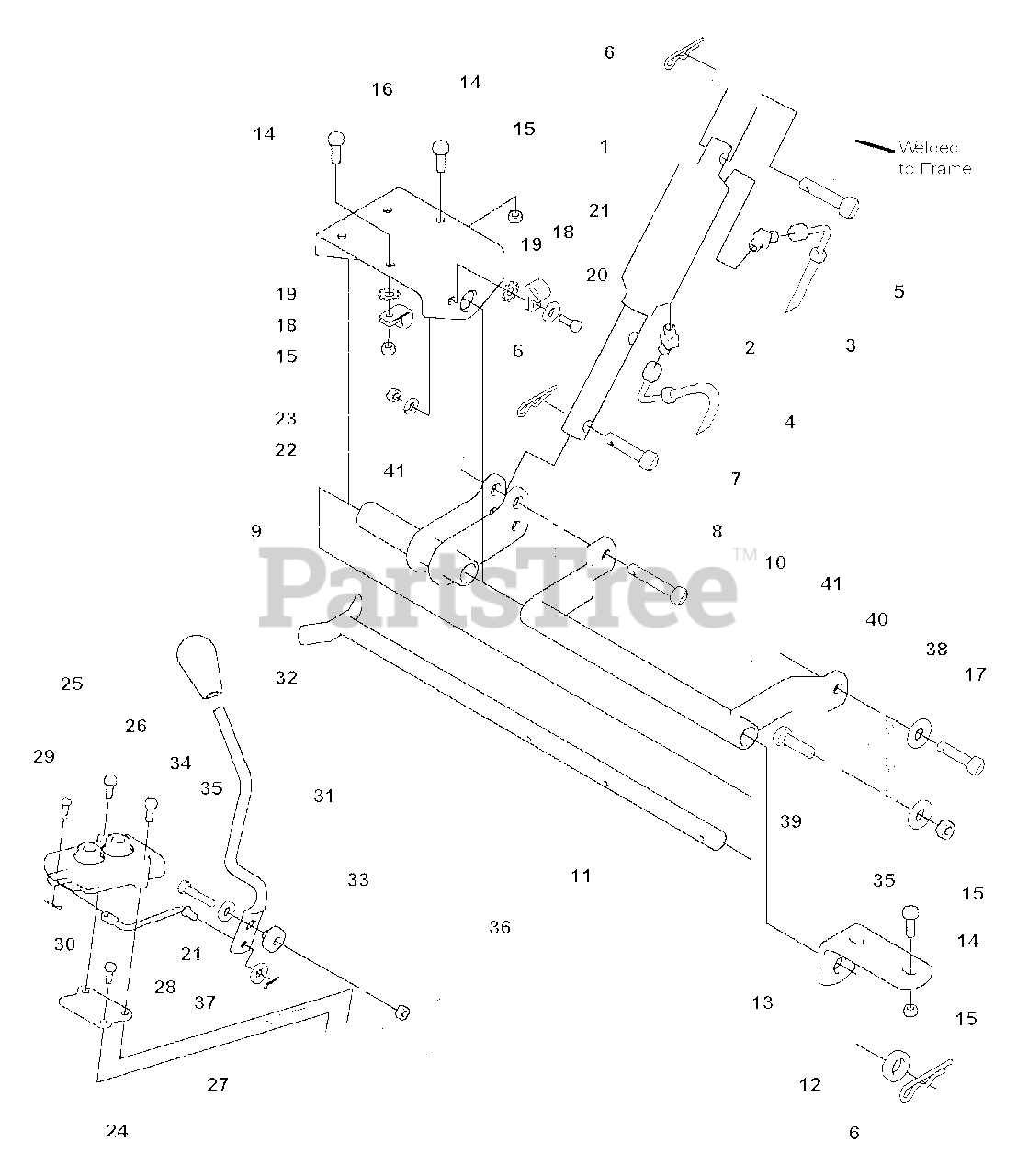

Lift Mechanism Group - Hydraulic Parts Diagram

  • Title

1

Simplicity 1685347SM

CYLINDER, Hydraulic Lift (Includes Ref. No. 5)

$494.99

$

Usually ships in 2-12 days

0

2

Simplicity 2172320SM

FITTING, Hydraulic, 45 Degree Elbow, 1/8NPT x 1/2-20

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 1719703SM

HYDRAULIC LINE, Long, Valve A -- Cylinder Piston

Note: Use on piston side of cylinder.

$100.99

$

Usually ships in 2-12 days

0

4

Simplicity 1719704SM

HYDRAULIC LINE, Short, Valve B -- Cylinder Rod

Note: Use on rod side of cylinder.

$68.99

$

In Stock, only 4 left!

0

5

Simplicity 1729275SM

PIN, Clevis

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1960064SM

PIN
(Superseded to 7012751YP)

$

$

Not available

8

Simplicity 1672344SM

PIN

$6.49

$

In Stock, only 2 left!

0

9

Simplicity 1708291SM

LIFT ARM ASSEMBLY

$54.99

$

Usually ships in 2-12 days

0

10

Simplicity 1708299SM

LIFT TUBE ASSEMBLY

$

$

Not available

11

Simplicity 1706525SM

SHAFT ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

12

Simplicity 1911386SM

WASHER, Plain
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1704712ASM

LIFT, Pivot Bracket

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

15

Simplicity 1919438SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1706529SM

SUPPORT, Lift
(Superseded to 1706529ASM)

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 1708298SM

PIN

$

$

Not available

18

Simplicity 1708007SM

CLAMP

Note: The lift hose goes through here.

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 2820426SM

WASHER, Lock, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 1921960SM

CAPSCREW, Hex Head,1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

21

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

23

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1719592SM

PLATE, Valve Mounting

$

$

Not available

25

Simplicity 1719164SM

VALVE, Lift

$188.99

$

Usually ships in 2-12 days

0

26

Simplicity 1930810SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1-1/2

$3.49

$

In Stock, only 1 left!

0

27

Simplicity 1929000SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 1719165SM

LINK, Lift Valve Spool

$

$

Not available

29

Simplicity 1676883SM

PIN
(Superseded to 703313)

$4.99

$

In Stock, Qty 6

0

30

Simplicity 1923360SM

COTTER PIN, 1/16 x 3/4
(Superseded to 703892)

$3.49

$

In Stock, only 1 left!

0

31

Simplicity 1719166SM

LEVER, Hydraulic Lift

$34.99

$

Usually ships in 2-12 days

0

32

Simplicity 1713843SM

KNOB, Lift Lever

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 1719649SM

SPACER

$15.99

$

Usually ships in 2-12 days

0

34

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

35

Simplicity 1919381SM

WASHER, Flat, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 1935048SM

NUT, Hex Head, Whiz Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

39

Simplicity 1930570SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1707514ASM

CHAIN, 3 Link (used on 50" Mowers)

$14.99

$

In Stock, only 1 left!

0

40

Simplicity 1708088ASM

CHAIN, 4 Link (used on 44" Mowers)

$11.99

$

Usually ships in 2-12 days

0

41

Simplicity 1722320SM

PIN, Cotter Locking

$3.49

$

In Stock, Qty 20+

0
