1723 H (1693812) - AGCO 54" Garden Tractor, 23hp Hood, Grille & Dash Group - 23HP Kohler Air-Cooled Models Parts Diagram

54" Garden Tractor, 23hp

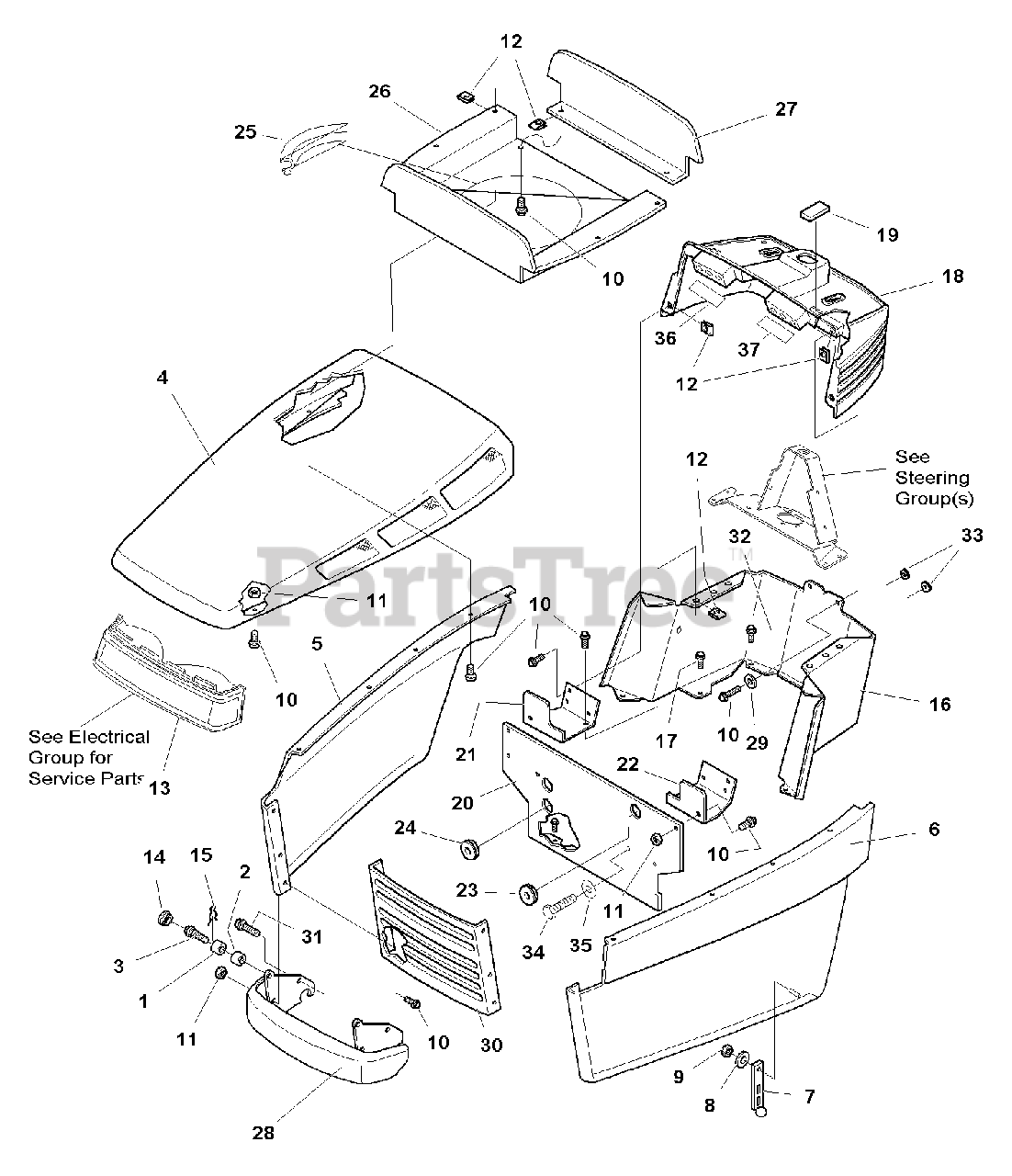

Hood, Grille & Dash Group - 23HP Kohler Air-Cooled Models Parts Diagram

  • Title

1

Simplicity 1705249SM

SPACER

$

$

Not available

2

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

3

Simplicity 1960373SM

CAPSCREW, Hex Head, Taptite, 5/16-18 X 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1716176SM

HOOD, Orange
(Superseded to 1716176CSM)

$501.99

$

Usually ships in 2-12 days

0

4

Simplicity 1729529SM

HOOD, Red

$

$

Not available

5

Simplicity 1704878CSM

SIDE PANEL ASSEMBLY, RH, Orange

$

$

Not available

5

Simplicity 1704878DSM

SIDE PANEL ASSEMBLY, RH, Red

$

$

Not available

6

Simplicity 1704879CSM

SIDE PANEL ASSEMBLY, LH, Orange

$142.99

$

Usually ships in 2-12 days

0

6

Simplicity 1704879DSM

SIDE PANEL ASSEMBLY, LH, Red

$94.99

$

Usually ships in 2-12 days

0

7

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 1960096SM

WASHER, 3/16

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1933896SM

NUT, Hex Nylon Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

10

Simplicity 1960295SM

CAPSCREW, Hex Head, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

11

Simplicity 1920397SM

NUT, Hex Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1703945SM

HEADLIGHT ASSEMBLY (See Electrical Group for Service Parts)

Note: See Electrical Group for Service Parts.

$164.99

$

In Stock, only 1 left!

0

14

Simplicity 1704626SM

SPACER, Hood

$6.99

$

In Stock, Qty 7

0

15

Simplicity 1704628SM

CLIP, Hairpin

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 1719163C

DASH ASSEMBLY, Lower
(Superseded to 1719163CSM)

$62.99

$

Usually ships in 2-12 days

0

17

Simplicity 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 1719167SM

DASHBOARD ASSEMBLY (Air Cooled Models)

$180.99

$

Usually ships in 2-12 days

0

19

Simplicity 1709188SM

PLUG

$4.99

$

In Stock, only 1 left!

0

20

Simplicity 1722006SM

BULKHEAD
(Superseded to 1722006ASM)

$30.99

$

Usually ships in 2-12 days

0

21

Simplicity 1719978SM

SUPPORT, Bulkhead, RH

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1719845SM

SUPPORT, Bulkhead, LH

$

$

Not available

23

Simplicity 1704342SM

GROMMET, Bulkhead

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1704927SM

GROMMET, Wire Harness

$6.49

$

Usually ships in 2-12 days

0

25

Simplicity 1722008SM

SEAL, Bulkhead

$15.99

$

Usually ships in 2-12 days

0

26

Simplicity 1721744SM

AIR DUCT

$49.99

$

Usually ships in 2-12 days

0

27

Simplicity 1719833SM

DEFLECTOR

$8.49

$

Usually ships in 2-12 days

0

28

Simplicity 1719555SM

BUMPER ASSEMBLY

$

$

Not available

29

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1721203SM

GRILLE
(Superseded to 1721203ASM)

$

$

Not available

31

Simplicity 1930601SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

32

Simplicity 1929000SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 1670675SM

PLUG

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1918265SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1717972

DECAL, R. H. Indicator

$

$

Not available

37

Simplicity 1719798SM

DECAL, L. H. Indicator

$

$

Not available
