1723 H (1693812) - AGCO 54" Garden Tractor, 23hp 54" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

54" Garden Tractor, 23hp

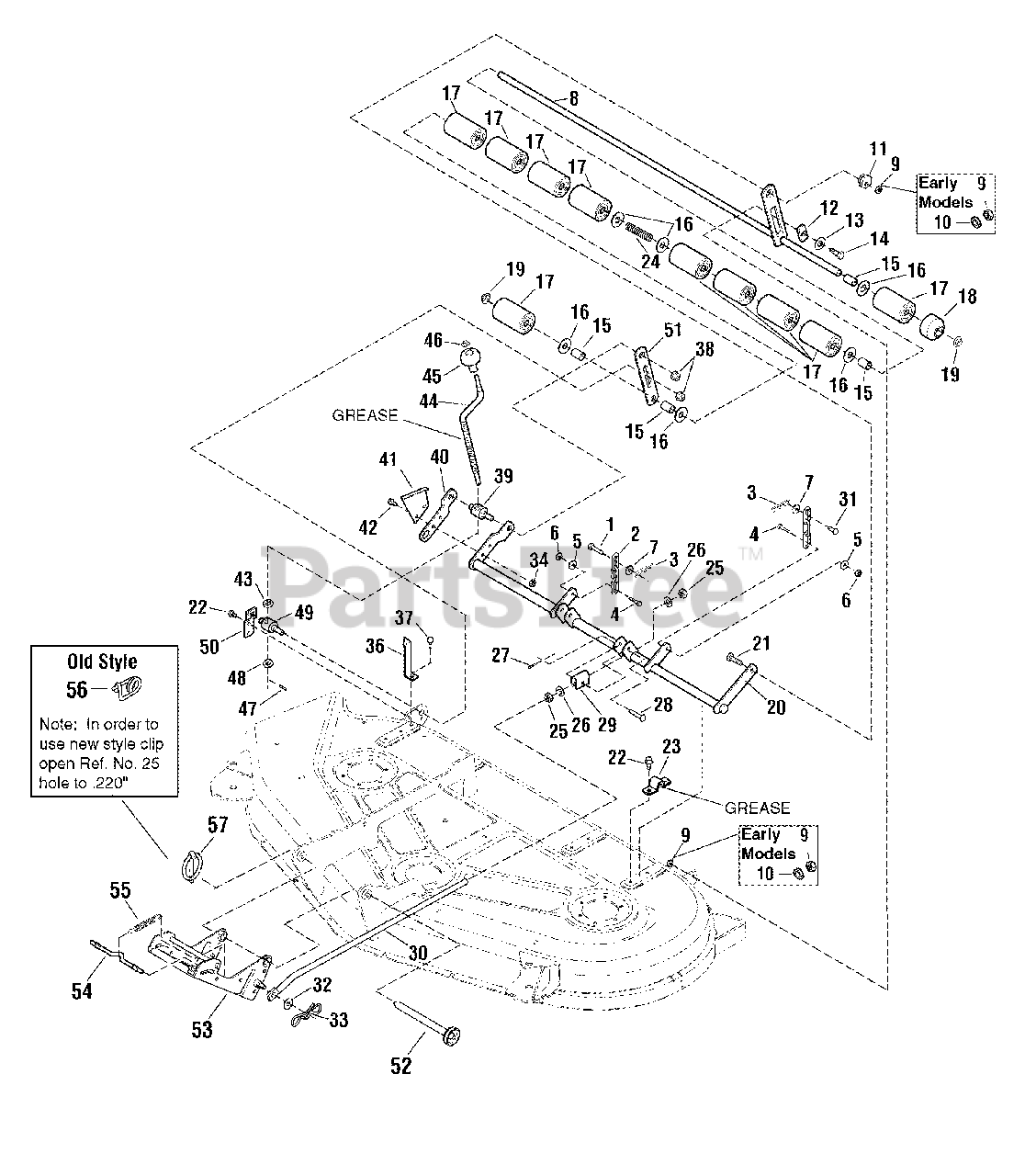

54" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 1672344SM

ASSEMBLY, Pin & Cup

$6.49

$

In Stock, only 2 left!

0

2

Simplicity 1707514ASM

CHAIN, 3 Links

$14.99

$

In Stock, only 1 left!

0

3

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1930570SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G 8

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1919438SM

LOCKNUT, Hex, 5/16
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

8

Simplicity 1720149SM

ASSEMBLY, Roller Bar
(Superseded to 1720149ASM)

$114.99

$

Usually ships in 2-12 days

0

9

Simplicity 2860681SM

NUT, Hex Alum Insert Lock, 3/8-16 (Later Models)

$4.49

$

In Stock, Qty 7

0

9

Simplicity 1916950SM

NUT, Hex, 3/8-16 (Early Models)
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1916965SM

WASHER, Lock, 3/8 (Early Models)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

12

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

13

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1709195SM

SPACER

$5.99

$

In Stock, Qty 20+

0

16

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1668513SM

ROLLER, Full

$10.99

$

In Stock, Qty 20+

0

18

Simplicity 1717675SM

ROLLER, Half

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 1960520SM

PUSHNUT, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1733523ASM

ASSEMBLY, Rocker Shaft

$262.99

$

Usually ships in 2-12 days

0

21

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2, G 5

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1720147ASM

STRAP
(Superseded to 1720147BZYP)

$9.99

$

In Stock, only 2 left!

0

24

Simplicity 1716346SM

SPRING

$6.99

$

In Stock, only 3 left!

0

25

Simplicity 1915726SM

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

26

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1960074SM

PIN, Clip Hair .093 Diameter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 2118053SM

PIN, Round Head, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

29

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

30

Simplicity 1722995SM

ROD

$41.99

$

Usually ships in 2-12 days

0

31

Simplicity 1708298SM

PIN, 3/8 x 1

$

$

Not available

32

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1722320SM

PIN, Bow Tie

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1931277SM

NUT, Hex, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

36

Simplicity 1720643ASM

INDICATOR, Height of Cut

$19.99

$

In Stock, only 2 left!

0

38

Simplicity 1930644SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, Qty 6

0

37

Simplicity 1931202SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1 1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

39

Simplicity 1704087SM

TRUNNION

$109.99

$

Usually ships in 2-12 days

0

40

Simplicity 1720637ASM

ARM

$19.99

$

Usually ships in 2-12 days

0

41

Simplicity 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

In Stock, only 1 left!

0

42

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G 5
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

43

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

44

Simplicity 1704094SM

CRANK, Height Adjust

$75.99

$

In Stock, only 1 left!

0

45

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

46

Simplicity 1960093SM

PUSHNUT, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

47

Simplicity 2816001SM

PIN, Roll

$4.49

$

In Stock, Qty 11

0

48

Simplicity 1704097SM

WASHER, Detent, 1/2

$4.49

$

In Stock, Qty 11

0

49

Simplicity 1704086SM

TRUNNION

$31.99

$

Usually ships in 2-12 days

0

50

Simplicity 1720142ASM

SUPPORT, Trunnion

$26.99

$

Usually ships in 2-12 days

0

51

Simplicity 1704074ASM

BAR

$17.99

$

In Stock, only 1 left!

0

52

Simplicity 1734011SM

PIN, Hitch

$67.99

$

In Stock, only 3 left!

0

53

Simplicity 1722997ASM

ASSEMBLY, Hitch

$

$

Not available

54

Simplicity 1715759SM

ROD

$7.99

$

In Stock, Qty 10

0

55

Simplicity 2156302SM

SPRING

$6.49

$

In Stock, Qty 20+

0

56

Simplicity 2176012SM

PIN, Safety (Early Models)
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

57

Simplicity 1709189SM

PIN, Klik

$6.99

$

Usually ships in 2-12 days

0
