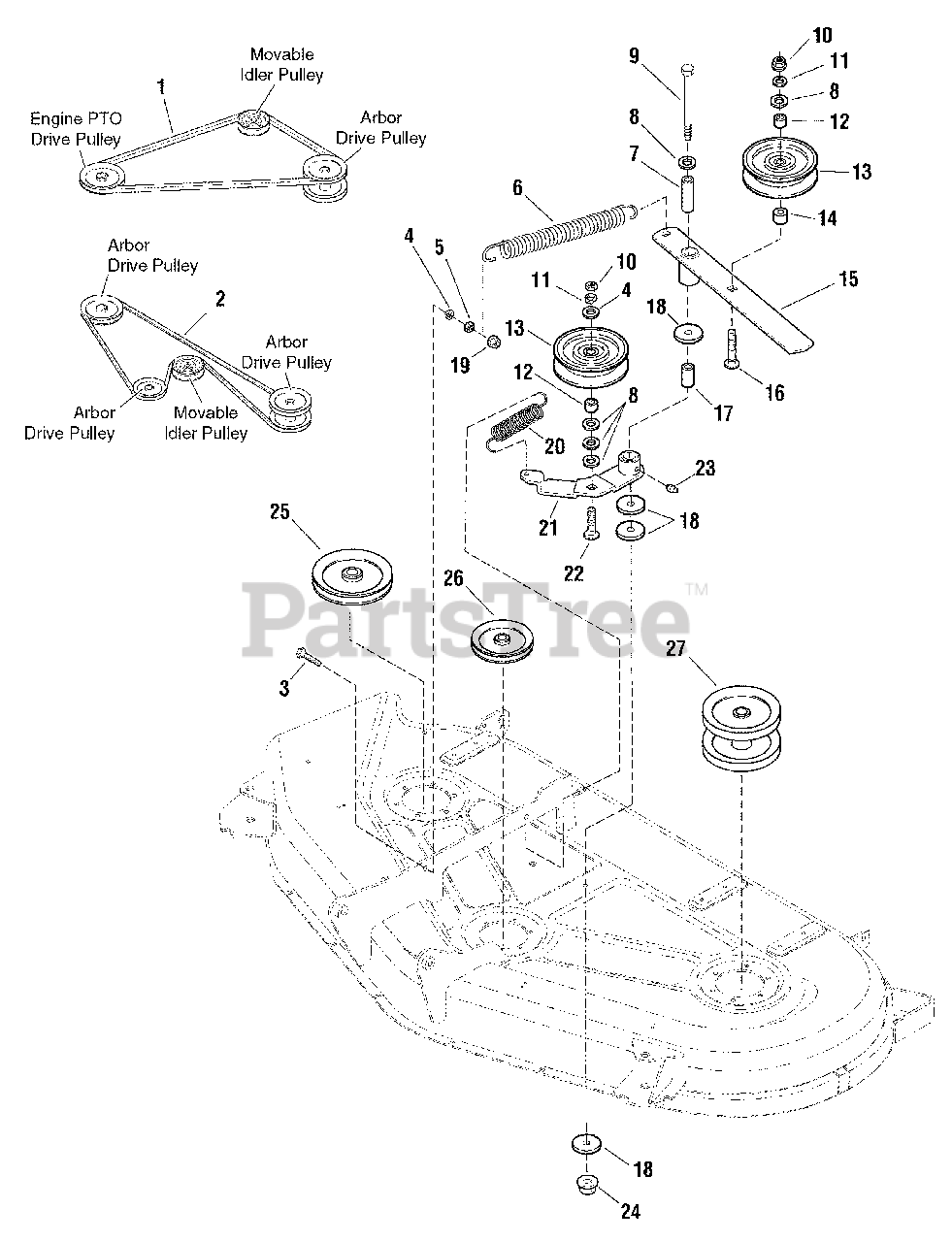

1723 H (1693812) - AGCO 54" Garden Tractor, 23hp 54" Mower Deck - Drive Group Parts Diagram

54" Garden Tractor, 23hp

54" Mower Deck - Drive Group Parts Diagram

  • Title

1

Simplicity 1722039SM

V-BELT, Engine PTO

$43.99

$

In Stock, Qty 20+

0

2

Simplicity 1671076SM

V-BELT, 54 Mower Deck

$50.99

$

In Stock, Qty 20+

0

3

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 17

0

4

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1715435SM

SPRING

$9.49

$

In Stock, Qty 20+

0

7

Simplicity 1657242SM

SPACER, 25/64 x 5/8 x 1-55/64

$10.99

$

In Stock, Qty 10

0

8

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1960246SM

CAPSCREW, Hex Head, 3/8-16 x 4-1/2

$7.49

$

Usually ships in 2-12 days

0

10

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Simplicity 1716553SM

HUB, 25/64 x 3/4 x 63/64, Powder Metal

$4.99

$

In Stock, Qty 10

0

13

Simplicity 1685150SM

PULLEY, Idler (Includes Ref. No. 12)

$34.99

$

In Stock, Qty 20+

0

14

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 6

0

15

Simplicity 1720379SM

ASSEMBLY, Lever

$

$

Not available

16

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

17

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 20+

0

18

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

19

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18, Black
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

20

Simplicity 1656936SM

SPRING, Extension, 4" Long

$9.99

$

In Stock, Qty 20+

0

21

Simplicity 1718561SM

LEVER ASSEMBLY, (Includes Ref. No. 23)

$50.99

$

Usually ships in 2-12 days

0

22

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

23

Simplicity 2812808SM

FITTING, Lube

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1930645SM

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

25

Simplicity 1720182ASM

PULLEY ASSEMBLY, R.H.

$54.99

$

In Stock, only 1 left!

0

26

Simplicity 1679161ASM

PULLEY ASSEMBLY, Center
(Superseded to 1679161SM)

$70.99

$

In Stock, Qty 6

0

27

Simplicity 1720183ASM

PULLEY ASSEMBLY, L.H.

$87.99

$

In Stock, only 4 left!

0
