1720 - Weed Eater String Trimmer DRIVE SHAFT, GEAR HOUSING, & HANDLEBAR Parts Diagram

String Trimmer

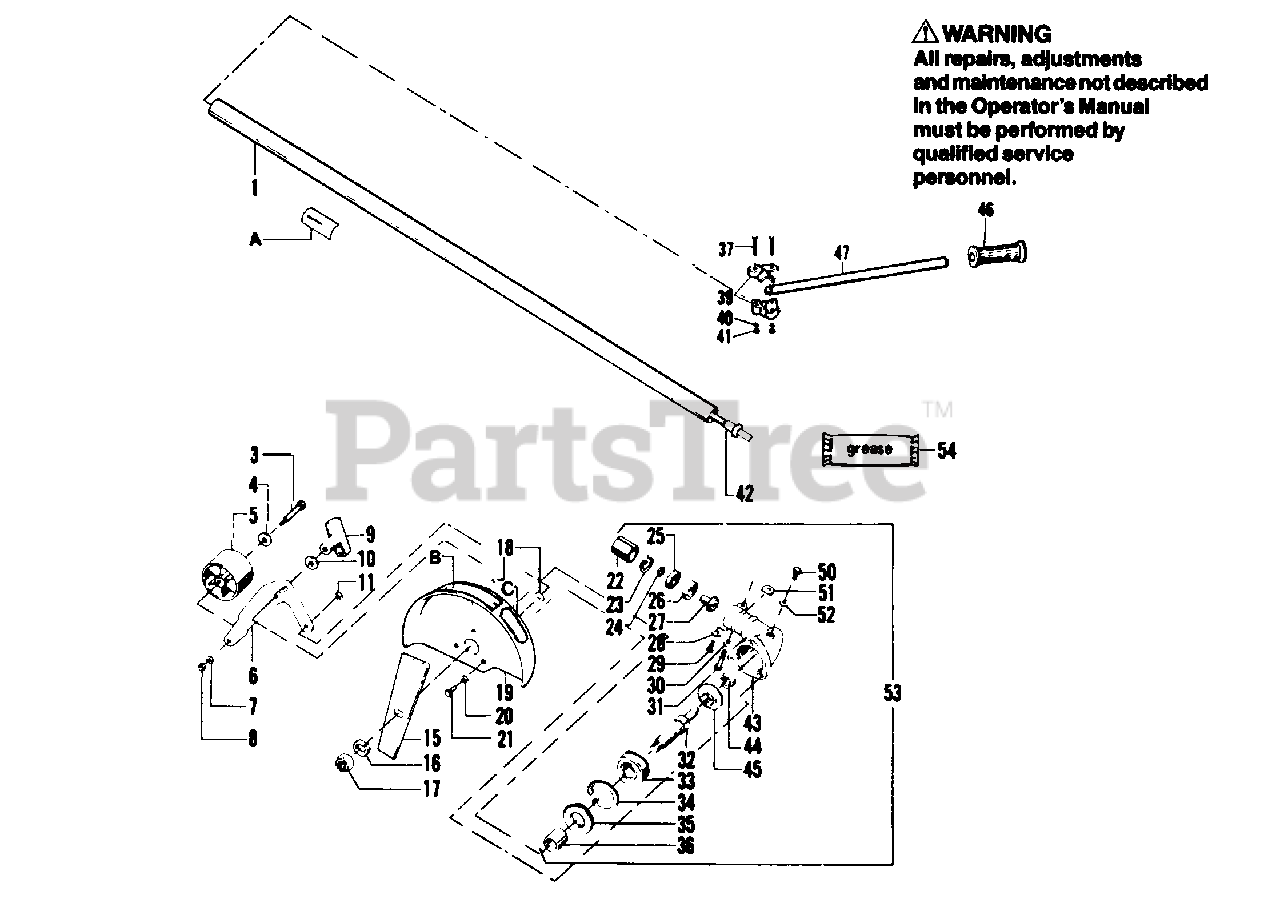

DRIVE SHAFT, GEAR HOUSING, & HANDLEBAR Parts Diagram

  • Title

1

Poulan 530094415

Drive Shaft Housing Assembly

$57.99

$

Usually ships in 3-10 days

0

3

Poulan 530092327

Shoulder-Bolt-Wheel #5/16-18 x 5/64"

$

$

Not available

4

Poulan 530001576

Washer - #5/16-Wheel

$1.49

$

Usually ships in 3-10 days

0

5

Poulan 530092324

Wheel - Depth Adjusting

$

$

Not available

6

Poulan 530092348

Bracket - Wheel

$8.99

$

Usually ships in 3-10 days

0

7

Poulan 530092322

Lockwasher - #5/16 - Wheel to Bracket

$3.49

$

Usually ships in 3-10 days

0

8

Poulan 530001721

Nut-Bracket to Guard - #5/16 - 18-Hex

$

$

Not available

9

Poulan 530092059

Knob - Wheel

$9.99

$

Usually ships in 3-10 days

0

10

Poulan 530092062

Washer - #1/4 -Knob

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530001615

Locknut-Bracket to Guard - #1/4-20

$

$

Not available

15

Poulan 530092343

Blade

$

$

Not available

16

Poulan 530093819

Lockwasher - #7/16 - Blade Mounting

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530093818

Nut - #7/16 - 14 - Blade Mounting

$3.49

$

Usually ships in 3-10 days

0

18

Poulan 530015209

Washer - #1/4 - Bracket to Guard

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 530010396

Guard Assembly

$

$

Not available

20

Poulan 530092227

Lockwasher - #1/4 - Guard to Gear Housing

$1.49

$

Usually ships in 3-10 days

0

21

Poulan 530015426

Screw - Guard to Gear Housing - #1/4-20 x 1/2"

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 530092339

Sleeve - Drive Shaft Tube

$

$

Not available

23

Poulan 530091574

Retaining Ring

$

$

Not available

24

Poulan 530092326

Retaining Ring - Pinion

$

$

Not available

25

Poulan 530091575

Bearing - Sealed

$

$

Not available

26

Poulan 530092329

Bearing - Open

$

$

Not available

27

Poulan 530092325

Gear - Pinion

$

$

Not available

28

Poulan 530092557

Lockwasher - #10 - Index Screw

$

$

Not available

29

Poulan 530092354

Screw - Index - #10-24 x 1/2"

$

$

Not available

30

Poulan 530092278

Lockwasher 1/4 - Pinch Clamp

$

$

Not available

31

Poulan 530092353

Screw - Pinch Clamp - #1/4-20 x 1-3/16"

$

$

Not available

32

Poulan 530092333

Shaft - Output

$

$

Not available

33

Poulan 530092335

Bearing - Large

$

$

Not available

34

Poulan 530092336

Retaining Ring

$

$

Not available

35

Poulan 530092337

Seal - Oil

$

$

Not available

36

Poulan 530092338

Collar - Shaft

$

$

Not available

37

Poulan 530001648

Bolt - Bracket #1/4-20 x 1 - 1/4"

$

$

Not available

39

Poulan 530094427

Bracket - Handlebar

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530001642

Lockwasher - #1/4 - Bracket

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530015197

Nut - Bracket - #1/4-20 - Hex

$6.49

$

In Stock, only 4 left!

0

42

Poulan 530092554

Drive Shaft Assembly

$

$

Not available

43

Poulan 530092332

Gear Housing

$34.99

$

Usually ships in 3-10 days

0

44

Poulan 530092331

Bearing - Small

$

$

Not available

45

Poulan 530092334

Gear

$

$

Not available

46

Poulan 530091402

Grip - Handlebar

$

$

Not available

47

Poulan 530094413

Handlebar

$30.99

$

Usually ships in 3-10 days

0

50

Poulan 530092352

Screw - Lubrication Filler - #5/16-18 x 3/8

$

$

Not available

51

Poulan 530092308

Spacer 5/16 - Fiber - Pinch Clamp

$

$

Not available

52

Poulan 530092556

Washer - Fiber

$

$

Not available

53

Poulan 530092265

Gear Housing Assembly (Inc. #'s 22-36, 43-45 & 50-52)

$

$

Not available

54

Poulan 530030102

Drive Shaft Lube
(Superseded to 952708514)

$

$

Not available

A

Poulan 530026233

Decal - Handlebar Location

$

$

Not available

B

Poulan 530025264

Decal - Guard

$

$

Not available

C

Poulan 530027269

Decal - Blade Rotation

$

$

Not available

Poulan 530066858

Operator's Manual

$6.49

$

Usually ships in 3-10 days

0
