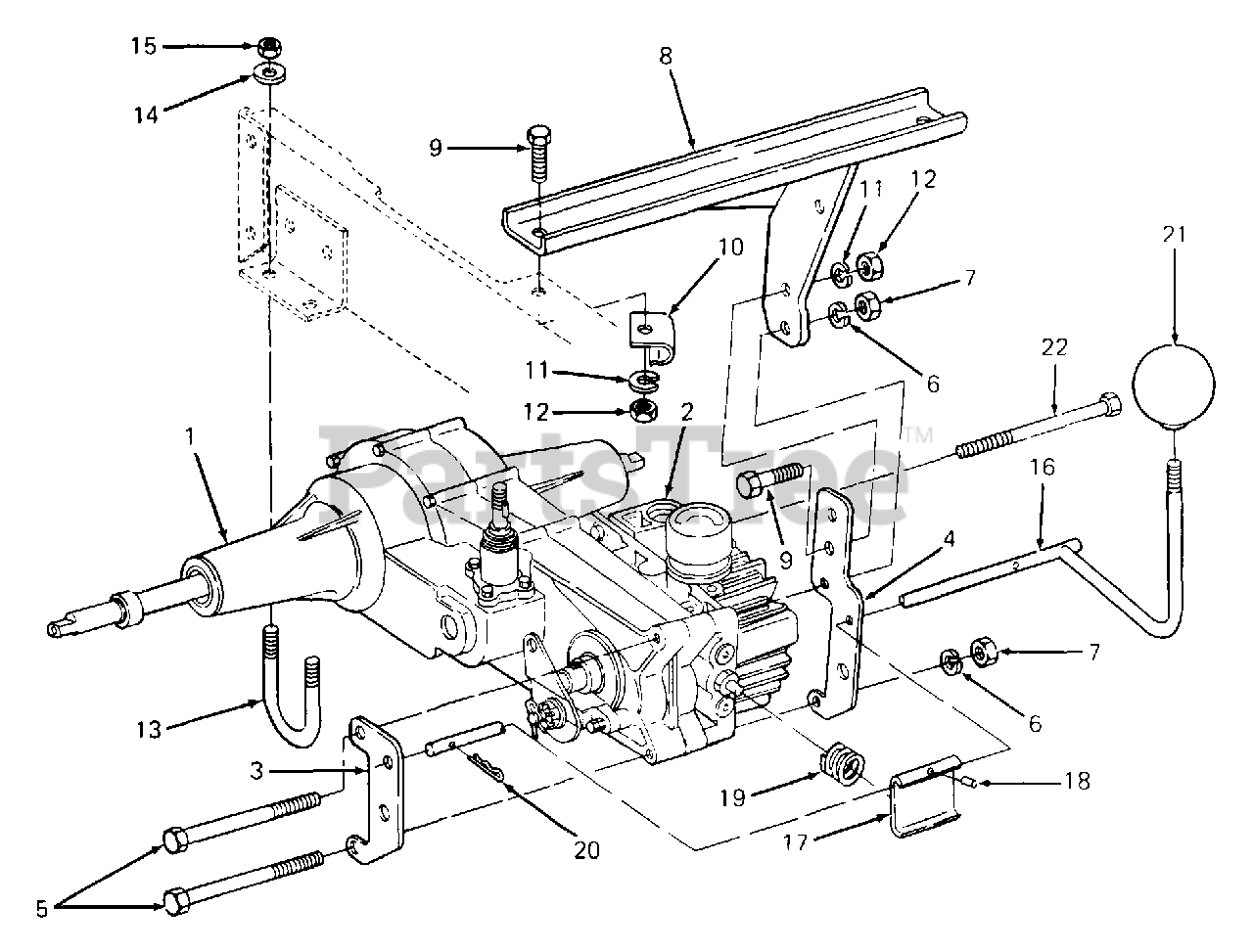

1720 (131-272-100) - Cub Cadet Garden Tractor (SN: 147088 - 207400) Transmission Dump Valve & Mounting Parts Diagram

Garden Tractor

Transmission Dump Valve & Mounting Parts Diagram

  • Title
1

Cub Cadet 717-3048

Transaxle

Note: Refer to "Transaxle" illustration and parts list for Component Breakdown.

$

$

Currently unavailable

2

Cub Cadet 717-3047A

Pump, Hydro
(Superseded to 917-3047A)

Note: Refer to "Hydro Pump" illustration and parts list for Component Breakdown.

$

$

Not available

3

Cub Cadet 703-1623

Bracket Transmission Dump Valve

$

$

Not available

4

Cub Cadet 703-1624

Bracket Transmission Dump Valve Torque

$

$

Not available

5

Cub Cadet 710-3195

Screw, Hex Cap, 5/16-18 X 4.5 Lg GR5

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 703-1636

Bracket, Torque

Variations

Cub Cadet 703-1636-0498

BRACKET ASSEMBLY-TORQUE (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

9

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

10

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3193

U-Bolt, 5/16-18 X 1.75 Lg

$

$

Not available

14

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 703-1629

Rod, Dump Valve

$

$

Not available

17

Cub Cadet 703-0310

Lever, Dump Valve

$18.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 715-3008

Pin, Spiral Spring, 1/8 Dia X .75 Lg

$

$

Not available

19

Cub Cadet 732-3054

Spring, Compression
(Superseded to 932-3054)

$

$

Not available

20

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 720-3017

Knob, Ball, 1/4-20 Trd

$14.99

$

In Stock, only 4 left!

0

22

Cub Cadet 710-3196

Bolt, Hex Patch, 5/16-18 X 4.5 Lg GR5

$

$

Not available
