1718 H (1692805) - AGCO 50" Garden Tractor, 18hp Service Parts - Transaxle Housing - Diagram 2 Parts Diagram

50" Garden Tractor, 18hp

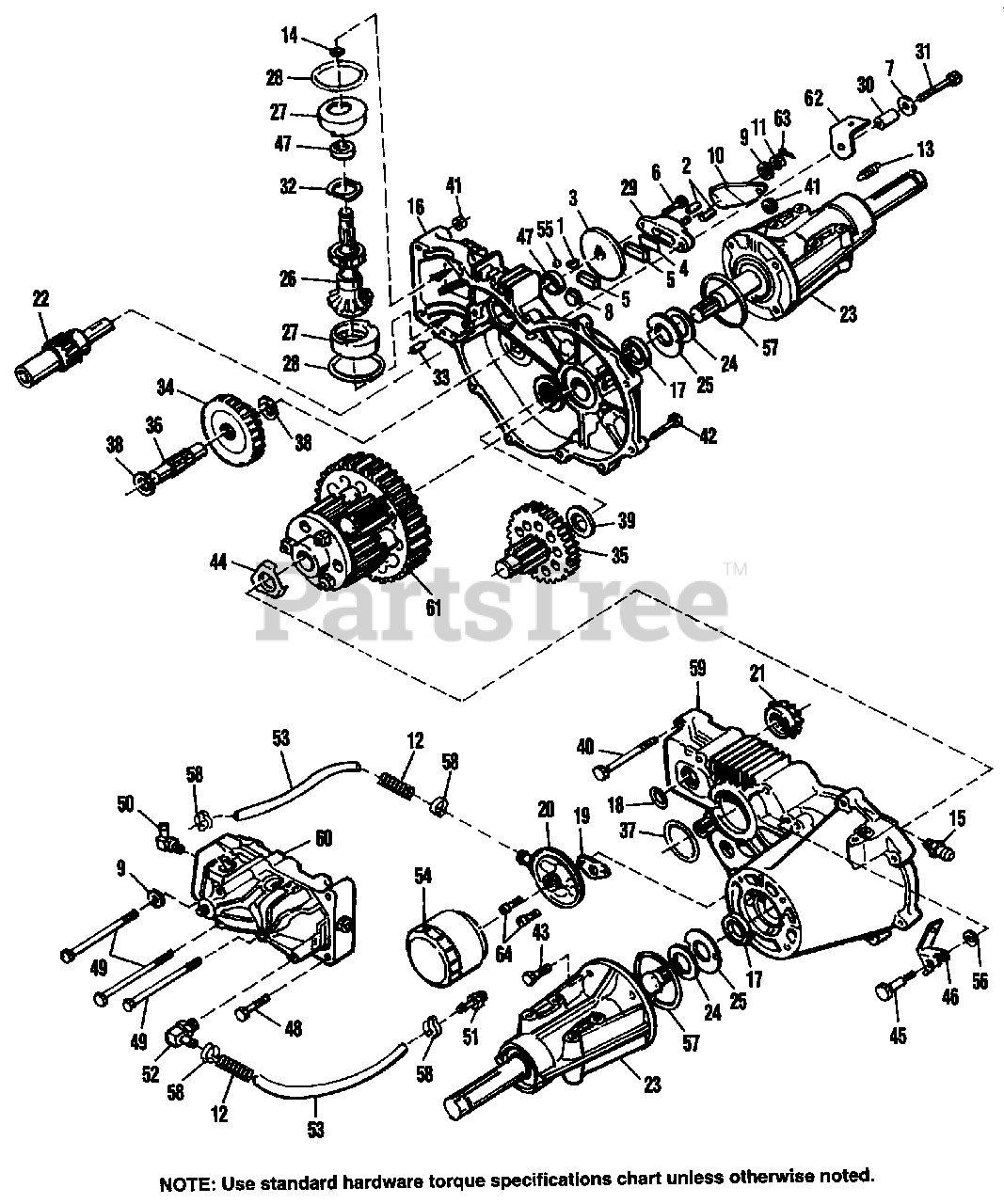

Service Parts - Transaxle Housing - Diagram 2 Parts Diagram

  • Title

1

Simplicity 2830672SM

KEY, Hi-Pro, 3/16 x 5/8

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 1706141SM

PIN, Brake Actuating

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1706143SM

DISC, Brake

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 1706145SM

PLATE, PUCK

$2.49

$

Usually ships in 2-12 days

0

5

Simplicity 1706146SM

PUCK, Brake

$16.99

$

In Stock, only 1 left!

0

6

Simplicity 1706147SM

BOLT, Nyloc, Gr. 5, 1/4-20 x 1

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1706161SM

WASHER, Flat

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1706179SM

PLUG, Straight Thread

$25.99

$

Usually ships in 2-12 days

0

9

Simplicity 1924874SM

WASHER, 7/8 x x 7/16 x
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1713618SM

ARM-BRAKE

$12.99

$

Usually ships in 2-12 days

0

11

Simplicity 1714431SM

NUT, Castle, 7/16

$6.99

$

In Stock, only 1 left!

0

12

Simplicity 1718536SM

SPRING

$4388.99

$

Usually ships in 2-12 days

0

13

Simplicity 1714743SM

SPRING, Extension

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1715141SM

RING, Wire Retaining

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 1715174SM

FITTING/O-RING ASSY.

$29.99

$

Usually ships in 2-12 days

0

16

Simplicity 1715185SM

HOUSING ASSY., RH

$319.99

$

Usually ships in 2-12 days

0

17

Simplicity 1715186SM

OIL SEAL, 63/64 x 1-1/2 x 1/4

Note: These parts can be ordered as Seal Kit, part no. 1715228.

$7.49

$

In Stock, only 1 left!

0

18

Simplicity 1715187SM

QUAD RING

Note: These parts can be ordered as Seal Kit, part no. 1715228.

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 1715188SM

GASKET, Filter Base

Note: These parts can be ordered as Seal Kit, part no. 1715228.

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1715189SM

BASE, Filter Assy.

$96.99

$

Usually ships in 2-12 days

0

21

Simplicity 1715190SM

PINION ASSY.

$86.99

$

Usually ships in 2-12 days

0

22

Simplicity 1715191SM

BRAKE SHAFT ASSY.

$193.99

$

Usually ships in 2-12 days

0

23

Simplicity 1715192SM

AXLE MOUNTING HORN ASSY.

$

$

Not available

24

Simplicity 1715193SM

WASHER, 1 x 1-5/8 x 5/64

$11.99

$

Usually ships in 2-12 days

0

25

Simplicity 1715194SM

WASHER, 1 x 2-1/16 x 3/32

$7.49

$

Usually ships in 2-12 days

0

26

Simplicity 1715195SM

INPUT ASSY.

$182.99

$

Usually ships in 2-12 days

0

27

Simplicity 1715196SM

BEARING, Retainer

$60.99

$

Usually ships in 2-12 days

0

28

Simplicity 1715197SM

QUAD RING

Note: These parts can be ordered as Seal Kit, part no. 1715228.

$46.99

$

Usually ships in 2-12 days

0

29

Simplicity 1706142SM

BRAKE YOKE ASSY.

$26.99

$

Usually ships in 2-12 days

0

30

Simplicity 1715199SM

SPACER

$1.99

$

Usually ships in 2-12 days

0

31

Simplicity 1715200SM

BOLT, 1/4-20 x 2

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1715202SM

WASHER, Wave

$

$

Not available

33

Simplicity 1715203SM

PIN, Dowel

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 1715204SM

GEAR, Reduction, 14T-38T

$46.99

$

Usually ships in 2-12 days

0

35

Simplicity 1715205SM

FINAL DRIVE PINION ASSY.

$

$

Not available

36

Simplicity 1715206SM

JACK SHAFT

$45.99

$

Usually ships in 2-12 days

0

37

Simplicity 1715207SM

O-RING

Note: These parts can be ordered as Seal Kit, part no. 1715228.

$2.99

$

Usually ships in 2-12 days

0

38

Simplicity 1715208SM

WASHER, 5/8 I.D. x 1-5/32 O.D.

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 1715209SM

WASHER, 7/8 I.D. x 1-1/2 O.D.

$

$

Not available

40

Simplicity 1715210SM

BOLT, Hex Hd., 5/16-18 x 3-1/2

$

$

Not available

41

Simplicity 1715211SM

LOCKNUT, Hex, 5/16-18

$

$

Not available

42

Simplicity 1715212SM

BOLT, Hex, Gr. 5, 5/16-18 x 1/2

$

$

Not available

43

Simplicity 1715213SM

CAPSCREW, Hex, Gr. 5, 5/16-18 x 1

$

$

Not available

44

Simplicity 1715214SM

WASHER, Differential, 1/2

Note: Used on early models only. Not required with later style Differential Assy., part no. 1715602 (Ref. No. 61).

$

$

Not available

45

Simplicity 1715215SM

BOLT, Shoulder

$6.99

$

Usually ships in 2-12 days

0

46

Simplicity 1715216SM

ARM, Freewheel Actuating

$13.99

$

Usually ships in 2-12 days

0

47

Simplicity 1715217SM

SEAL, Oil, 5/8 x 1 x 1/4

Note: These parts can be ordered as Seal Kit, part no. 1715228.

$14.99

$

Usually ships in 2-12 days

0

48

Simplicity 1715218SM

BOLT, Hex, Gr. 5, 5/16-18 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

49

Simplicity 1715219SM

BOLT, Hex, Gr. 5, 5/16-18 x 1/2

$9.99

$

Usually ships in 2-12 days

0

50

Simplicity 1715220SM

FITTING, 1/2, Beaded, 90o, 9/16, SAE

$

$

Not available

51

Simplicity 1715221SM

FITTING, 1/2, Straight, 9/16, SAE

$33.99

$

Usually ships in 2-12 days

0

52

Simplicity 1715222SM

FITTING, 1/2, Beaded, 90o, 7/8, SAE

$38.99

$

Usually ships in 2-12 days

0

53

Simplicity 2166136SM

HOSE, 1/2", 8-3/4" Long

$6.99

$

Usually ships in 2-12 days

0

54

Simplicity 1715225SM

FILTER, Spin-on, Bypass

$43.99

$

Usually ships in 2-12 days

0

55

Simplicity 1715227SM

WASHER, 11/32 I.D. x 9/16 O.D.

$

$

Not available

56

Simplicity 1715229SM

WASHER

$3.49

$

Usually ships in 2-12 days

0

57

Simplicity 1715230SM

O-RING

Note: These parts can be ordered as Seal Kit, part no. 1715228.

$2.49

$

Usually ships in 2-12 days

0

58

Simplicity 1715231SM

PINCH CLAMP

$3.99

$

In Stock, only 4 left!

0

59

Simplicity 1715232SM

HOUSING ASSY., LH

$740.99

$

Usually ships in 2-12 days

0

60

Simplicity 1715446SM

HYDRO PUMP

$1538.99

$

Usually ships in 2-12 days

0

61

Simplicity 1715602SM

DIFFERENTIAL ASSY.

$1054.99

$

Usually ships in 2-12 days

0

62

Simplicity 1715604SM

BRACKET

$

$

Not available

63

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

64

Simplicity 1921960SM

CAPSCREW, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

65

Simplicity 1714296

GREASE, 10 Oz. Tube

Note: Not Shown

$

$

Not available
