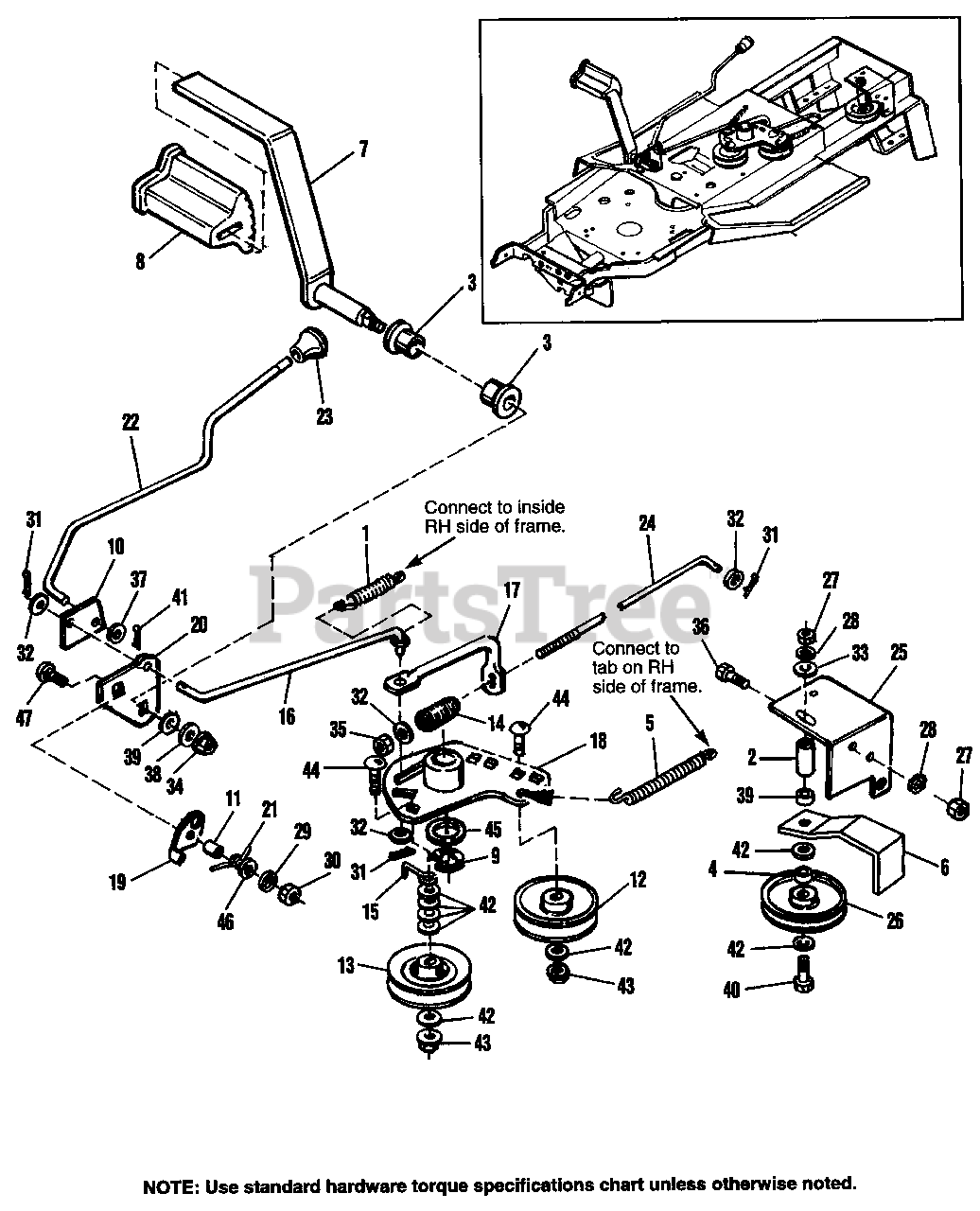

1718 H (1692805) - AGCO 50" Garden Tractor, 18hp Clutch/Brake Controls Parts Diagram

50" Garden Tractor, 18hp

Clutch/Brake Controls Parts Diagram

  • Title

1

Simplicity 2156302

SPRING, Extension
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

2

Simplicity 2172453SM

SPACER, 25/64 x 1 x 1-7/32

$45.99

$

Usually ships in 2-12 days

0

3

Simplicity 1663114SM

BUSHING, Plastic

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1666294SM

SPACER, 3/8 x 43/64 x 29/64

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1666759SM

SPRING, Drive

$

$

Not available

6

Simplicity 1677135ASM

GUARD, Spring "L"

$12.99

$

In Stock, Qty 8

0

7

Simplicity 1704295SM

BRAKE PEDAL ASSY.
(Superseded to 1704295ASM)

$159.99

$

Usually ships in 2-12 days

0

8

Simplicity 1718944SM

PAD, Brake Pedal Assy.

$50.99

$

In Stock, only 1 left!

0

9

Simplicity 1704420SM

KLIP RING, 5/8

$4.99

$

In Stock, only 2 left!

0

10

Simplicity 1704429SM

CAM, Parking Brake

$

$

Not available

11

Simplicity 1720526SM

SPACER

$6.49

$

Usually ships in 2-12 days

0

12

Simplicity 1721133SM

PULLEY, Idler, Backside

$29.99

$

In Stock, Qty 20+

0

13

Simplicity 2174561SM

PULLEY, V, Idler

$53.99

$

Usually ships in 2-12 days

0

14

Simplicity 1709097SM

SPRING

$92.99

$

Usually ships in 2-12 days

0

15

Simplicity 1709863SM

BELT STOP

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 1709895SM

ROD, Clutch

$31.99

$

Usually ships in 2-12 days

0

17

Simplicity 1709896SM

ARM ASSY., Brake

$25.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709903SM

IDLER ARM ASSY.

$27.99

$

Usually ships in 2-12 days

0

19

Simplicity 1709950SM

SWITCH, Actuator

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1709951SM

ARM, Brake Pedal Assy.

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 1709974SM

SPRING, Tension

$

$

Not available

22

Simplicity 1713480SM

ROD, Parking Brake

$77.99

$

In Stock, only 1 left!

0

23

Simplicity 1713855SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

24

Simplicity 1714862SM

ROD, Brake

$

$

Not available

25

Simplicity 1714865SM

BRACKET, Idler

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 1715494SM

PULLEY

$42.99

$

In Stock, only 3 left!

0

27

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

29

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

33

Simplicity 1919384SM

WASHER, Plain, 3/4

$5.49

$

In Stock, only 1 left!

0

34

Simplicity 1919438SM

NUT, Hex Nyloc, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1919439SM

NUT, Hex, Esna, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

37

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 1922611SM

WASHER, 13/32 x 1-1/4 x 1/16

$6.99

$

In Stock, only 1 left!

0

39

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

40

Simplicity 1922918SM

CAPSCREW, Hex Hd., 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

41

Simplicity 1923360SM

COTTER PIN, 1/16 x 3/4
(Superseded to 703892)

$3.49

$

In Stock, only 1 left!

0

42

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1928352SM

NUT, Hex, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

44

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

45

Simplicity 1960020SM

WASHER, 5/8 I.D. x 1-1/4 O.D. x 5/64 Thk.

$4.49

$

In Stock, Qty 20+

0

46

Simplicity 1960044SM

WASHER, 21/64 I.D. x 1-1/4 O.D. x 5/64 Thk.

$4.49

$

In Stock, only 3 left!

0

47

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0
