1716 H (1692837) - AGCO Garden Tractor, 16hp Transmission - Drive, Belt & Control Group Parts Diagram

Garden Tractor, 16hp

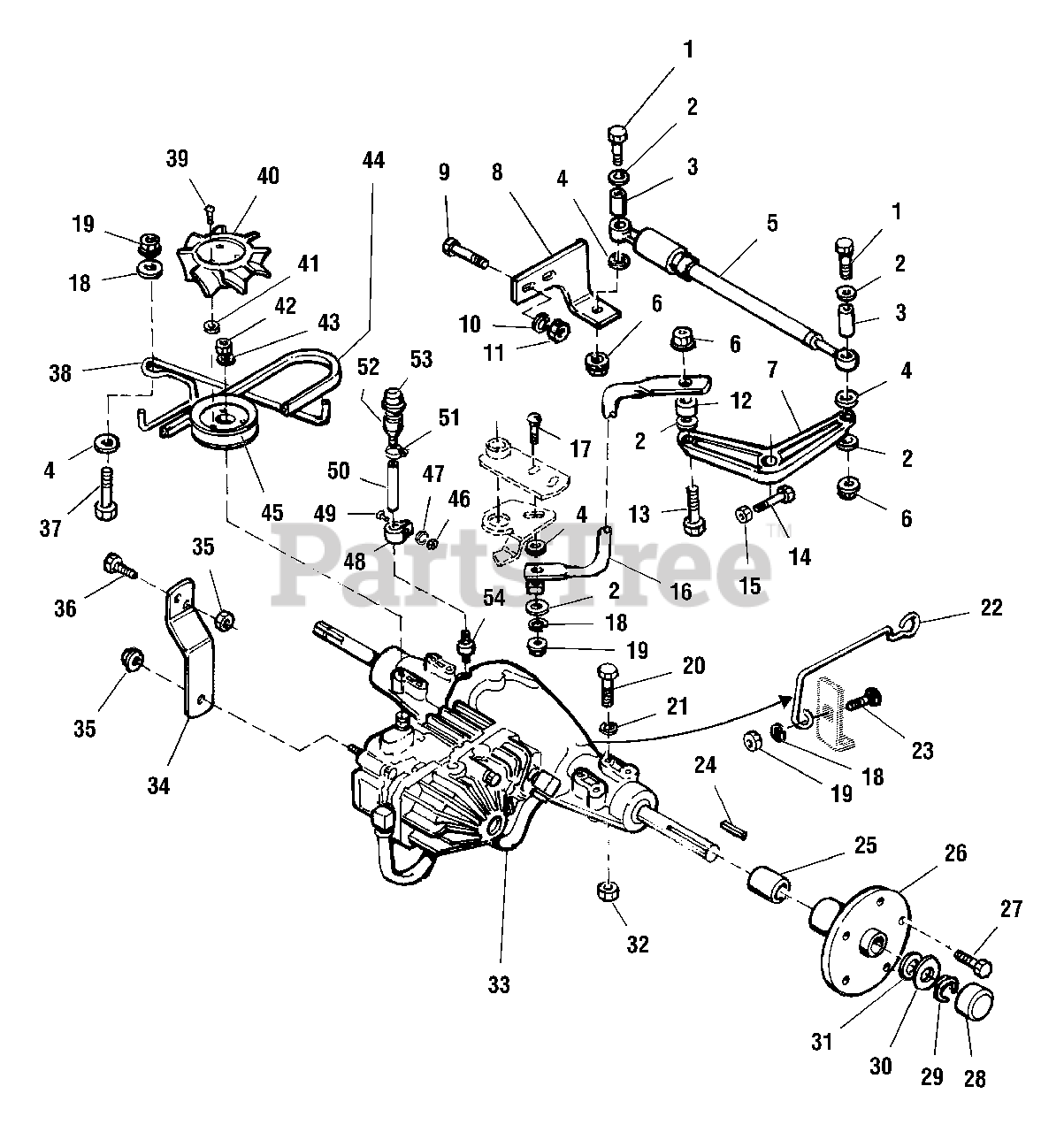

Transmission - Drive, Belt & Control Group Parts Diagram

  • Title

Note: See the Transmission Service Parts Group for Transaxle or Transmission Service Parts.

$

$

Not available

1

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

2

Simplicity 1919326SM

WASHER, 11/32 x 3/4 x 1/16

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1676392SM

SPACER

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1919381SM

WASHER, 11/32 x 1 x 1/8
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1714856SM

SHOCK ABSORBER

$146.99

$

Usually ships in 2-12 days

0

6

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

7

Simplicity 1714860SM

LEVER, Hydro Control

$

$

Not available

8

Simplicity 1714855SM

BRACKET, Shock

$2.99

$

Usually ships in 2-12 days

0

9

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

11

Simplicity 1916950SM

NUT, Hex.Fin., 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Simplicity 1960553SM

SCREW, Hex Soc. Hd., Gr. 8 #10-32 x 2

$1.99

$

Usually ships in 2-12 days

0

15

Simplicity 1930627SM

NUT, Hex Lock #10-32

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 1714861SM

ROD, Shift, Rear

$61.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960223SM

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917372SM

NUT, Hex Fin., 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1922918SM

CAPSCREW, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

21

Simplicity 1922755SM

WASHER, 13/32 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 10

0

22

Simplicity 1715442SM

LEVER, Hydro Release Valve

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

24

Simplicity 2805100SM

KEY, 1/4 x 1/4 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

25

Simplicity 1714812SM

SPACER

$7.49

$

In Stock, only 2 left!

0

26

Simplicity 1714853SM

HUB ASSY., Rear Wheel

$80.99

$

Usually ships in 2-12 days

0

27

Simplicity 1729280SM

BOLT, Hub, Rear Wheel

$6.49

$

In Stock, Qty 6

0

28

Simplicity 1676519SM

HUB CAP

$8.49

$

In Stock, Qty 20+

0

29

Simplicity 2834712SM

RING, "E" Retaining

$4.99

$

In Stock, only 2 left!

0

30

Simplicity 1714810SM

WASHER, Retainer, Hub Cap

$5.99

$

Usually ships in 2-12 days

0

31

Simplicity 1919394SM

WASHER, 1-1/32 x 1-5/8 x 1/16
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

33

Simplicity 1718536SM

HYDROSTATIC PUMP & TRANSAXLE ASSY.

Note: See the Transmission Service Parts Group for Transaxle or Transmission Service Parts.

$4388.99

$

Usually ships in 2-12 days

0

34

Simplicity 1713181SM

SUPPORT, Transmission

$5.99

$

Usually ships in 2-12 days

0

35

Simplicity 1931277SM

NUT, Hex Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

36

Simplicity 1930591SM

SCREW, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

37

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

38

Simplicity 1714863SM

STOP, Belt

$12.99

$

Usually ships in 2-12 days

0

39

Simplicity 1933958SM

SCREW, Taptite, 1/4-20 x 1-1/64

$4.49

$

In Stock, only 1 left!

0

40

Simplicity 1707933SM

FAN

$11.99

$

In Stock, only 1 left!

0

41

Simplicity 1921319SM

WASHER, 17/64 x 5/8 x 3/64
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

42

Simplicity 1960549

NUT, Hex Jam, 9/16-18

$

$

Not available

43

Simplicity 1960550

LOCKWASHER, 9/16

$

$

Not available

44

Simplicity 1707381SM

V-BELT, 86.25"

$49.99

$

Usually ships in 2-12 days

0

45

Snapper 1713269SM

PULLEY ASSY., Transmission

$55.99

$

Usually ships in 2-12 days

0

46

Simplicity 1916622SM

NUT, Hex Fin. 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

48

Simplicity 1676527SM

CLAMP

$4.49

$

Usually ships in 2-12 days

0

49

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

50

Simplicity 2166137SM

HOSE, 12"

$10.99

$

Usually ships in 2-12 days

0

51

Simplicity 2860266SM

CLAMP

$7.49

$

Usually ships in 2-12 days

0

52

Simplicity 1676466SM

NECK, Filler

$

$

Not available

53

Simplicity 1676467SM

CAP, Filler
(Superseded to 7012155YP)

$9.49

$

In Stock, Qty 5

0

54

Simplicity 1715174SM

FITTING, Vent Tube

$29.99

$

Usually ships in 2-12 days

0
