1716 H (1692045) - AGCO 50" Garden Tractor, 16hp Electric Lift Kit, Mfg. No. 1692032 (Optional On Gear Models) Parts Diagram

50" Garden Tractor, 16hp

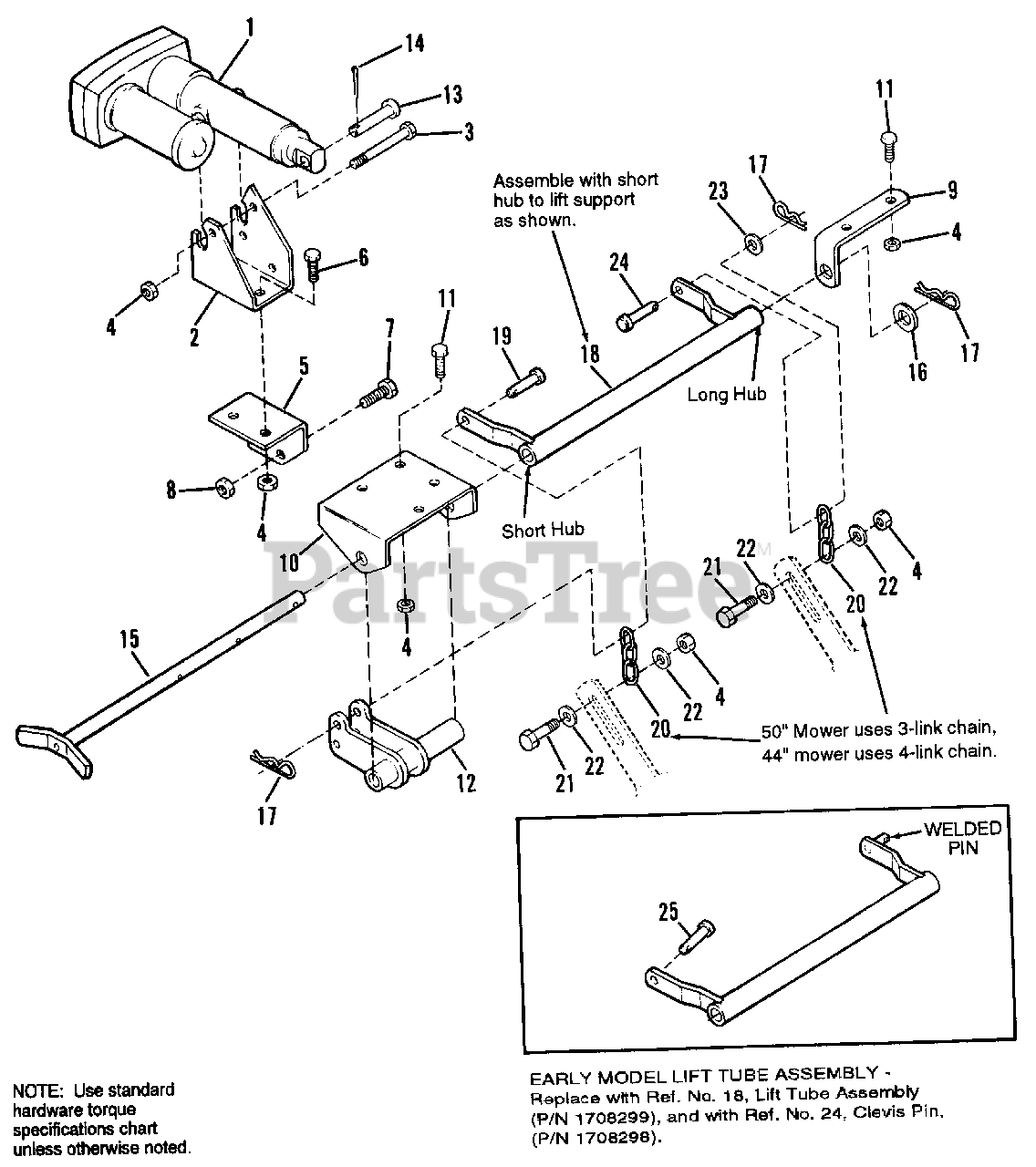

Electric Lift Kit, Mfg. No. 1692032 (Optional On Gear Models) Parts Diagram

  • Title
1

Simplicity 1706733SM

POWER LIFT ASSY. (See next page for service parts)

$1424.99

$

Usually ships in 2-12 days

0

2

Simplicity 1701877SM

BRACKET, Actuator

$

$

Not available

3

Simplicity 1926106SM

CAPSCREW, Hex, 5/16-18 x 3-1/4

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1919438SM

NUT, Hex, Lock, Esna, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1714844SM

SUPPORT, Actuator

$

$

Not available

6

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1920415SM

CAPSCREW, Hex, Whizlock 3/8-16 x 1
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1919439SM

NUT, Hex, Lock, Esna, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1704712ASM

LIFT, Pivot Bracket

$

$

Not available

10

Simplicity 1706529SM

SUPPORT, Lift
(Superseded to 1706529ASM)

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

12

Simplicity 1708291SM

LIFT ARM ASSY.

$54.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960064SM

PIN
(Superseded to 7012751YP)

$

$

Not available

14

Simplicity 1918451SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1706525SM

SHAFT ASSY.

$33.99

$

Usually ships in 2-12 days

0

16

Simplicity 1911386SM

WASHER, Plain
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1960033SM

CLIP, Hair Pin (Large) (Qty. 3 on early models)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1708299SM

LIFT TUBE ASSY. (See note on illustration)

$

$

Not available

19

$6.49

$

In Stock, only 2 left!

0

20

Simplicity 1707514ASM

CHAIN, 3-Link

$14.99

$

In Stock, only 1 left!

0

20

Simplicity 1708088ASM

CHAIN, 4-Link

$11.99

$

In Stock, only 1 left!

0

21

Simplicity 1930570SM

CAPSCREW, Hex, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1922755SM

WASHER, Plain
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

24

Simplicity 1708298SM

PIN, Clevis

$

$

Not available

25

Simplicity 175838

PIN, Clevis (Early models only)

$

$

Not available
