1716 H (1692045) - AGCO 50" Garden Tractor, 16hp 44" Mower - Height Adjustment & Roller Parts Diagram

50" Garden Tractor, 16hp

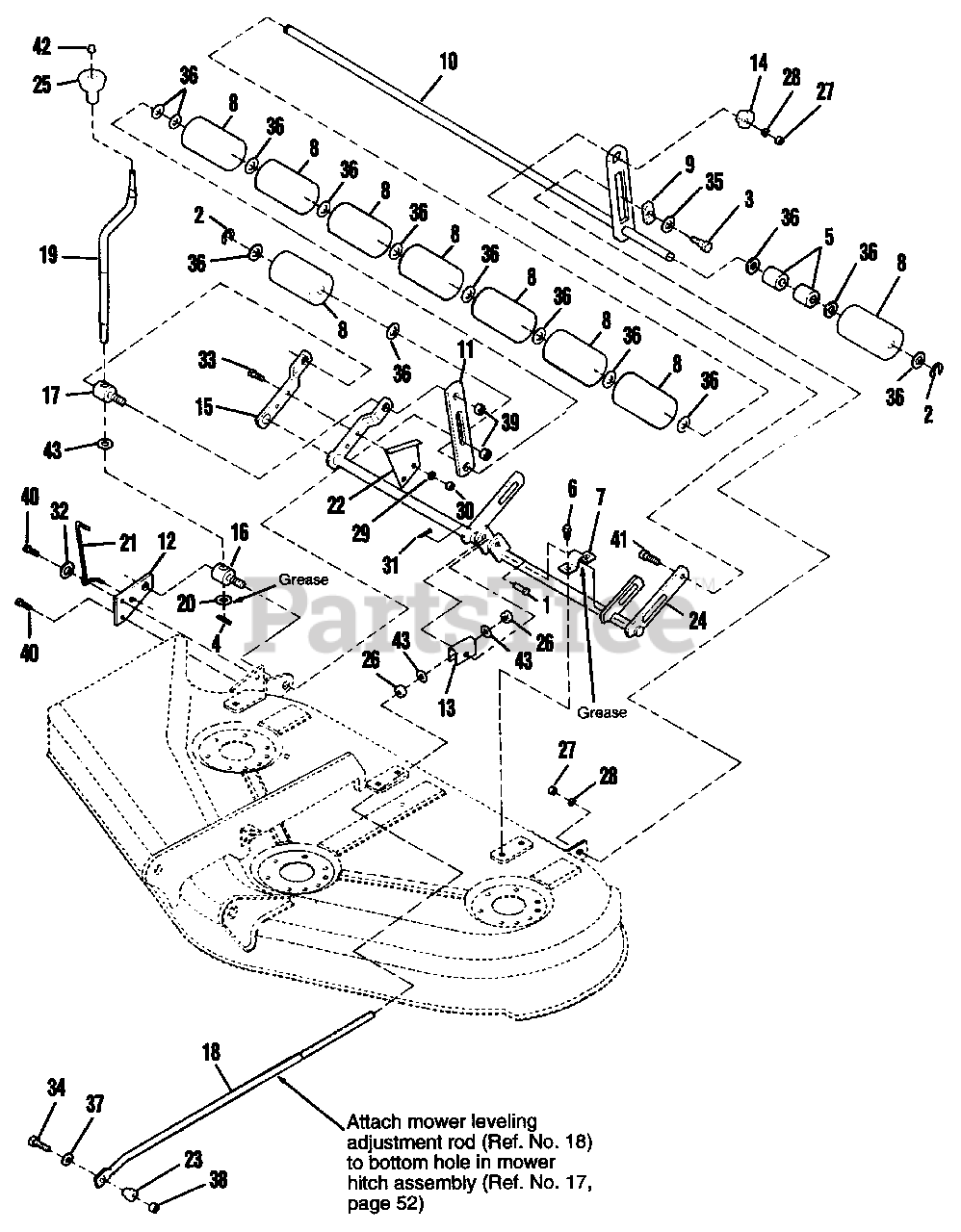

44" Mower - Height Adjustment & Roller Parts Diagram

  • Title

1

Simplicity 2118053SM

PIN, Clevis
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

2

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

3

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 2816001SM

PIN, Roll, 1" Long

$4.49

$

In Stock, Qty 11

0

5

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

6

Simplicity 1664847SM

SCREW, Hex Taptite, 5/16 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1665374SM

STRAP, Mower Arm Assy.
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

8

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

9

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

10

Simplicity 1685443SM

SHAFT ASSY., Roller, 44" (Incl. Ref. Nos. 2 & 5)

$137.99

$

Usually ships in 2-12 days

0

11

Simplicity 1704074ASM

BAR, Roller

$17.99

$

In Stock, only 1 left!

0

12

Simplicity 1704080ASM

PLATE, Mower Support

$8.49

$

In Stock, only 1 left!

0

13

Simplicity 1704081ASM

TRUNNION

$7.99

$

Usually ships in 2-12 days

0

14

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

15

Simplicity 1704083ASM

ARM, Rear, Mower, RH

$13.99

$

In Stock, only 1 left!

0

16

Simplicity 1704086SM

TRUNNION

$31.99

$

Usually ships in 2-12 days

0

17

Simplicity 1704087SM

TRUNNION, Threaded

$109.99

$

Usually ships in 2-12 days

0

18

Simplicity 1704093SM

ROD, Adjustment

$47.99

$

Usually ships in 2-12 days

0

19

Simplicity 1704094SM

CRANK, Cutting Height

$75.99

$

In Stock, only 1 left!

0

20

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, Qty 11

0

21

Simplicity 1704114SM

INDICATOR, Cutting Height

$16.99

$

In Stock, Qty 9

0

22

Simplicity 1704116ASM

BRACKET, Cutting Height
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

23

Simplicity 1706644SM

SPACER

$8.49

$

In Stock, only 2 left!

0

24

Simplicity 1707237SM

ARM ASSY., Mower

$

$

Not available

25

Simplicity 1714084SM

KNOB, Height Crank

$12.99

$

In Stock, only 1 left!

0

26

Simplicity 1913744SM

NUT, Hex, Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

27

Simplicity 1916950SM

NUT, Hex Hd., 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1916965SM

LOCKWASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

29

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1918452SM

COTTER PIN
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

32

Simplicity 1919381SM

WASHER, Flat, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

34

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

35

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1928352SM

NUT, Hex, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 4 left!

0

39

Simplicity 1930644SM

NUT, Hex, Flange Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

40

Simplicity 1931202SM

SCREW, Hex, Washer, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

41

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 3 left!

0

42

Simplicity 1960093SM

PAL NUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1960170SM

WASHER, 33/64
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0
