1716 G (1692444) - AGCO Garden Tractor, 16hp Seat, Deck & Fuel Tank Group Parts Diagram

Garden Tractor, 16hp

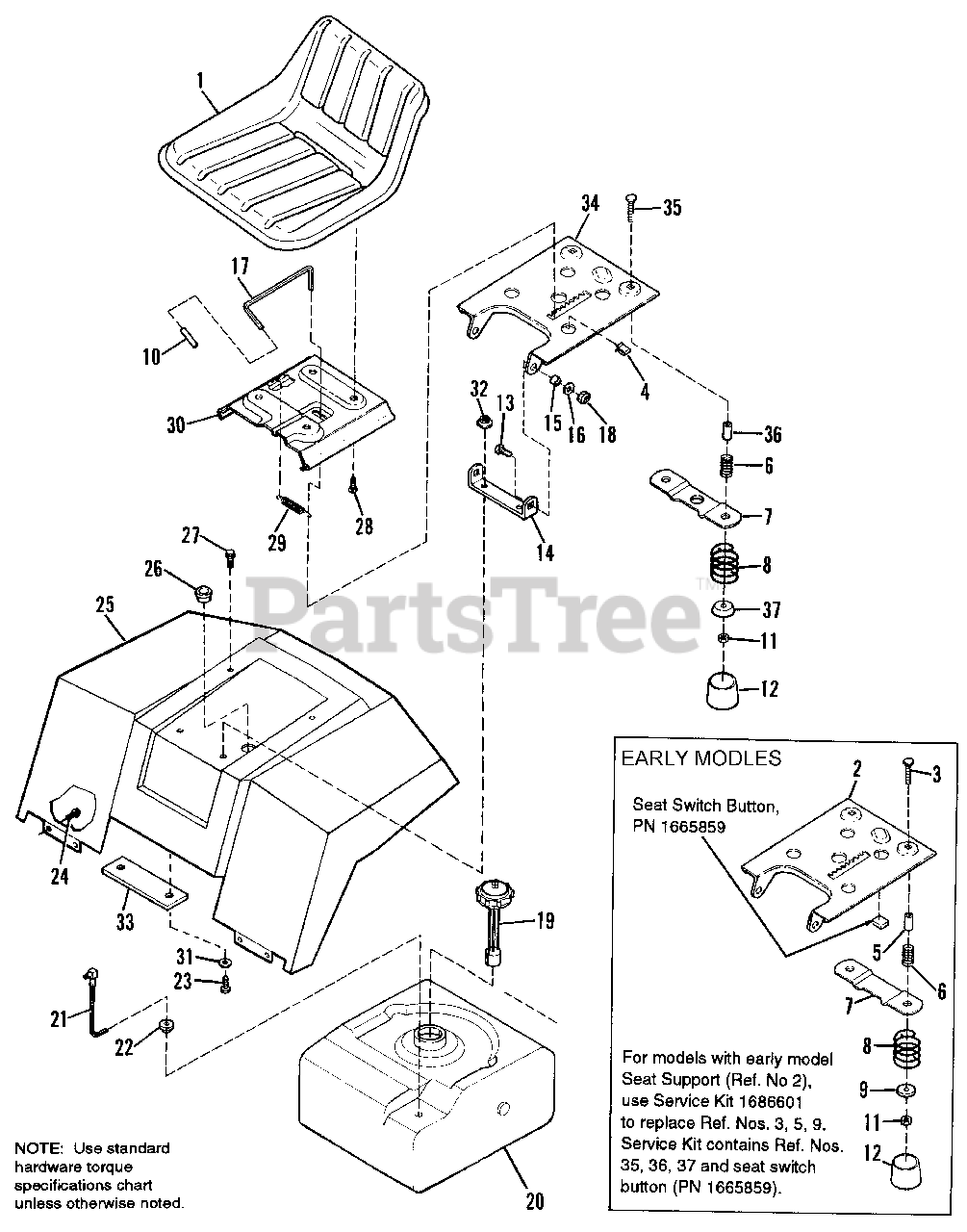

Seat, Deck & Fuel Tank Group Parts Diagram

  • Title

1

Simplicity 1687020SM

SEAT

$

$

Not available

2

Simplicity 1685449

SUPPORT, Seat, Pivot (Early models - see note on illustration page)

$

$

Not available

3

Simplicity 1931338SM

CARRIAGE BOLT, 5/16-18 x 1-3/4 (Early models)
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 935112

CLIP, Speed

$

$

Not available

5

Simplicity 1707525

SPACER (Early models)

$

$

Not available

6

Snapper 1709308SM

SPRING, Compression

$

$

Not available

7

Simplicity 1719809SM

PLATE, Switch
(Superseded to 1719809ASM)

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 1704728SM

SPRING, Compression, 2" O.D.

$9.99

$

In Stock, only 2 left!

0

9

Simplicity 1933468SM

WASHER, Plain (Early models)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1704723SM

HANDLE, Grip

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1919438SM

NUT, Hex, Full, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1704724SM

COVER, Spring

$7.99

$

In Stock, only 4 left!

0

13

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

14

Simplicity 1718858SM

BRACKET, Seat, Pivot
(Superseded to 1718858ASM)

$13.99

$

Usually ships in 2-12 days

0

15

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 2 left!

0

16

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1719712SM

LEVER, Seat Release

$6.49

$

In Stock, only 1 left!

0

18

Simplicity 1919439SM

NUT, Hex Hd., Nyloc, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1704366SM

CAP, Fuel Gauge

$67.99

$

In Stock, only 1 left!

0

20

Snapper 1708054SM

TANK, Fuel

$132.99

$

Usually ships in 2-12 days

0

21

Simplicity 1704108SM

ELBOW & TUBE ASSY.

$35.99

$

Usually ships in 2-12 days

0

22

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

23

Simplicity 1960459SM

SCREW, Truss Hd., Torx Dr., 3/8-16 x 1

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

25

Simplicity 1706513SM

SEAT DECK (Orange)

$

$

Not available

25

Simplicity 1706513SM

SEAT DECK (Green)

$

$

Not available

25

Simplicity 1729511SM

SEAT DECK (Red)

$

$

Not available

26

Simplicity 1701229SM

BUSHING, Snap

$1.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

28

Simplicity 1931648SM

BOLT, Hex, Whizlock, 5/16-18 x 5/8
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

29

Simplicity 1707137SM

SPRING

$32.99

$

Usually ships in 2-12 days

0

30

Simplicity 1714441SM

BRACKET, Seat Slide
(Superseded to 1714441ASM)

$35.99

$

Usually ships in 2-12 days

0

31

Simplicity 1924356SM

WASHER, Plain, 1-1/2 O.D. (Early models only)
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

32

Simplicity 1928352SM

NUT, Hex, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

33

Simplicity 1708361SM

PLATE, Reinforcement (Later models only)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1709307SM

SUPPORT, Seat, Pivot (Later models only)

$

$

Not available

35

Simplicity 1931339SM

CARRIAGE BOLT, 5/16-18 x 2 (Later models only)
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

36

Simplicity 1704299SM

SPACER (Later models only)

$15.99

$

Usually ships in 2-12 days

0

37

Simplicity 1709256SM

WASHER, Plain (Later models only)

$5.99

$

In Stock, only 2 left!

0
