1716 G (1692444) - AGCO Garden Tractor, 16hp Hood, Grille & Dash Group Parts Diagram

Garden Tractor, 16hp

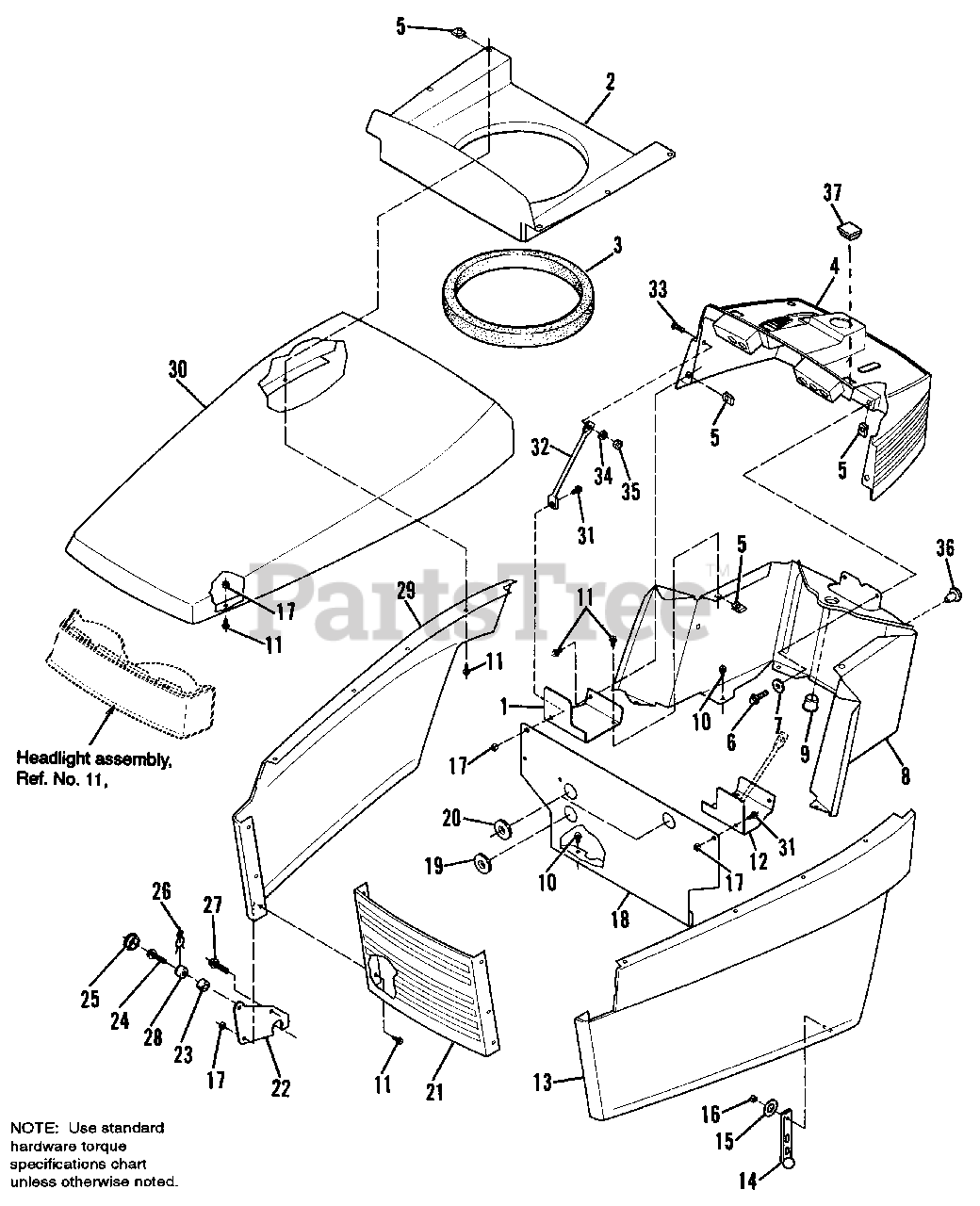

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 1719978SM

SUPPORT, Bulkhead, R.H.

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1707325SM

AIR DUCT

$53.99

$

Usually ships in 2-12 days

0

3

Simplicity 1707326SM

SEAL, Air Duct

$

$

Not available

4

Simplicity 1714025SM

DASH ASSY. (Gear models)

Note: Hydro Models, Mfg. Nos. 1692006, 1692036*, 1692042 & 1692044 order Dash Kit, part no. 1686641. Gear Models, Mfg. Nos. 1692024 & 1692033 order Dash Kit, part no. 1686643. Kit includes new style throttle & cable assy.

$

$

Not available

4

Simplicity 1686642SM

DASH ASSY. (Hydro models)

$

$

Not available

5

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1930594SM

CAPSCREW, Whizlock, 1/4-20 x 3/4 (Hydro models)
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1960295SM

CAPSCREW, Whizlock, 1/4-20 x 5/8 (Gear models)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1715755SM

DASH, Lower

$

$

Not available

9

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

11

Simplicity 1960295SM

CAPSCREW, Whizlock, 1/4-20 x 5/8 (Qty. 18 on gear models)

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 1719845SM

SUPPORT, Bulkhead, L.H.

$

$

Not available

13

Simplicity 1704879CSM

SIDE PANEL ASSY., L.H. (Orange)

$142.99

$

Usually ships in 2-12 days

0

13

Simplicity 1704879

SIDE PANEL ASSY., L.H. (Green)
(Superseded to 1704879CSM)

$142.99

$

Usually ships in 2-12 days

0

13

Simplicity 31704879

SIDE PANEL ASSY., L.H. (Red)

$

$

Not available

14

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

15

Simplicity 1960096SM

WASHER, Special

$3.99

$

In Stock, only 2 left!

0

16

Simplicity 1933896SM

NUT, Hex, Lock, Nylon #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1920397SM

NUT, Hex, Full Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1722006SM

BULKHEAD
(Superseded to 1722006ASM)

$30.99

$

Usually ships in 2-12 days

0

19

Simplicity 1704927SM

GROMMET, Wire Harness

$6.49

$

Usually ships in 2-12 days

0

20

Simplicity 1704342SM

GROMMETS, Bulkhead (Qty. 1 on hydro models)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1721203SM

GRILLE
(Superseded to 1721203ASM)

$

$

Not available

22

Simplicity 1716128SM

HINGE, Hood
(Superseded to 1716128BMYP)

$23.99

$

Usually ships in 2-12 days

0

23

Simplicity 1705249SM

SPACER

$

$

Not available

24

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1704626SM

SPACER, Hood

$6.99

$

In Stock, only 2 left!

0

26

Simplicity 1704628SM

CLIP, Hairpin

$4.49

$

In Stock, only 4 left!

0

27

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

28

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

29

Simplicity 1704878CSM

SIDE PANEL ASSY., R.H. (Orange)

$

$

Not available

29

Simplicity 1704878

SIDE PANEL ASSY., R.H. (Green)
(Superseded to 1704878CSM)

$

$

Not available

29

Simplicity 1704878DSM

SIDE PANEL ASSY., R.H. (Red)

$

$

Not available

30

Simplicity 1703240SM

HOOD (Orange)
(Superseded to 1703240CSM)

$151.99

$

Usually ships in 2-12 days

0

30

Simplicity 1703240SM

HOOD (Green)
(Superseded to 1703240CSM)

$151.99

$

Usually ships in 2-12 days

0

30

Simplicity 1729505SM

HOOD (Reds
(Superseded to 1703240DSM)

$151.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960430

CAPSCREW, 1/4-20 x 1, Hex Washer Hd.

Note: Gear Models Only

$

$

Not available

32

Simplicity 1708202

BRACE, Dashboard

Note: Gear Models Only

$

$

Not available

33

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

Note: Gear Models Only

$3.99

$

In Stock, only 1 left!

0

34

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

Note: Gear Models Only

$3.99

$

In Stock, Qty 11

0

35

Simplicity 1916622SM

NUT, Hex. Full, 1/4-20
(Superseded to 703127)

Note: Gear Models Only

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1670675SM

PLUG, Bumper

Note: Gear Models Only

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 1709188SM

PLUG, Dash, Electric Lift

Note: Gear Models Only

$4.99

$

In Stock, only 1 left!

0
