1716 G (1692444) - AGCO Garden Tractor, 16hp Electrical Group - Main Harness Parts Diagram

Garden Tractor, 16hp

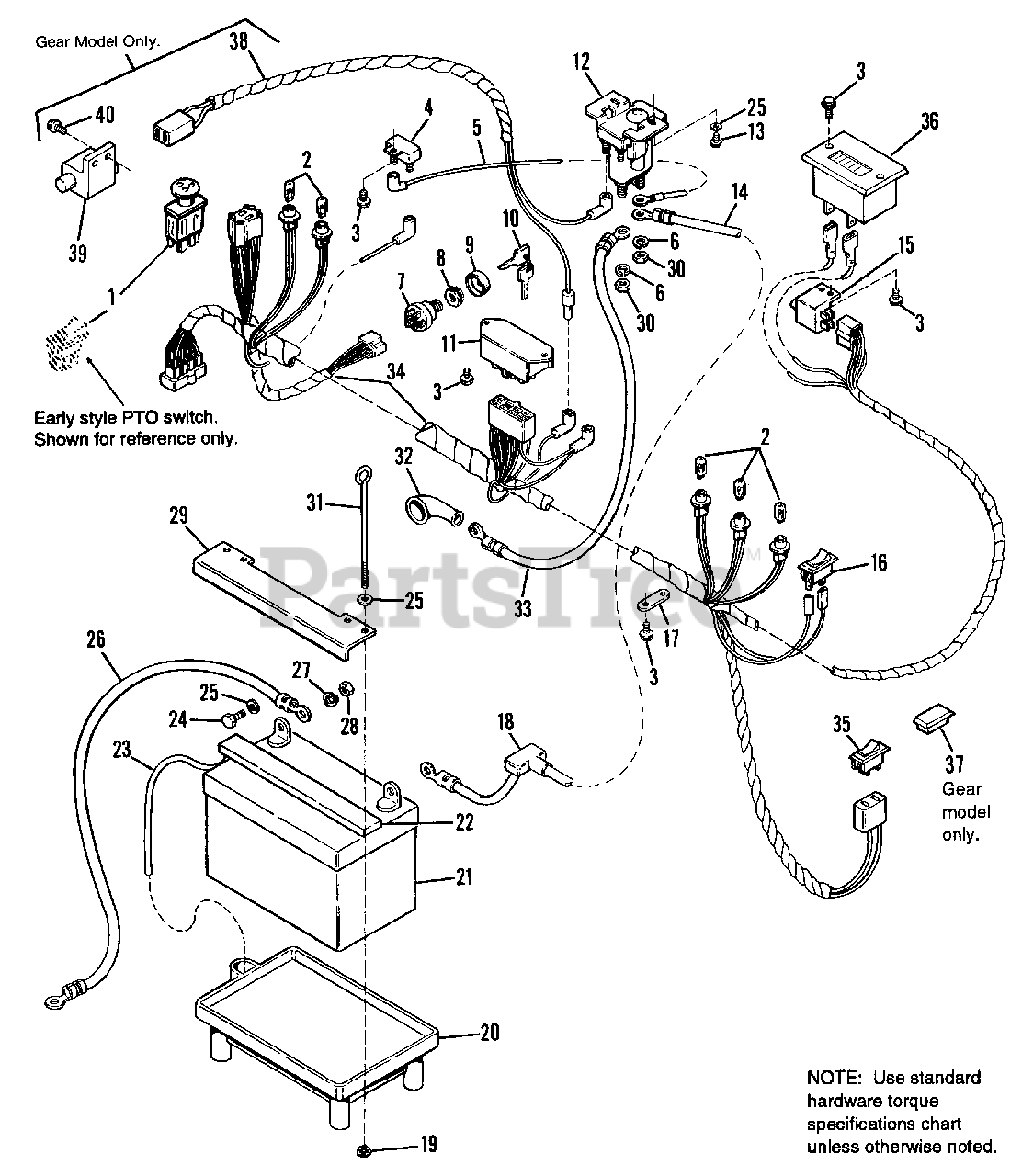

Electrical Group - Main Harness Parts Diagram

  • Title

1

Simplicity 1716332SM

* SWITCH, PTO, Electric Clutch
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Simplicity 1676130SM

BULB, Indicator Light

$

$

Not available

3

Simplicity 1960369SM

SCREW, Plastite, #8-16 x 1/2

$3.49

$

In Stock, only 1 left!

0

4

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

5

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

6

Simplicity 1917356SM

LOCKWASHER 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1686734SM

IGNITION SWITCH KIT (Incl. Ref. Nos. 8 & 10)

$32.99

$

In Stock, Qty 20+

0

8

Simplicity 1714055SM

ADAPTER, Nut

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 1704346SM

COVER, Key Switch

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1714054SM

KEYS

$7.49

$

In Stock, Qty 20+

0

11

Simplicity 1703972SM

MODULE

$

$

Not available

12

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

13

Simplicity 1960728SM

SCREW, Plastite, 1/4-20 x 5/8

$3.99

$

In Stock, only 4 left!

0

14

Simplicity 1603618SM

CABLE, Battery-to-Solenoid

$11.99

$

In Stock, only 3 left!

0

15

Simplicity 1701521SM

SWITCH, Transmission, Neutral Start
(Superseded to 5022438SM)

$20.99

$

In Stock, Qty 7

0

16

Simplicity 1703799SM

SWITCH, Headlight

$31.99

$

In Stock, only 1 left!

0

17

Simplicity 1704614SM

STRAP, Wire Retainer

$11.99

$

Usually ships in 2-12 days

0

18

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 11

0

19

Simplicity 1704349SM

NUT, Plastic, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1704112SM

TRAY, Battery

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 1685215SM

BATTERY, 39 Amp (Power Max)

$

$

Not available

22

Simplicity 1704581

VENT, Battery

$

$

Not available

23

Simplicity 1612103SM

HOSE, Battery, Drain

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 1923341SM

CAPSCREW, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

25

Simplicity 1921319SM

WASHER, Plain, 9/32
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1713163SM

CABLE, Battery-to-Ground

$24.99

$

Usually ships in 2-12 days

0

27

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

28

Simplicity 1916622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1718596

HOLD DOWN, Battery
(Superseded to 1718596ASM)

$36.99

$

Usually ships in 2-12 days

0

30

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1704632SM

ROD, Battery Hold Down

$

$

Not available

32

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

33

Simplicity 1668819SM

CABLE, Solenoid-to-Starter

$16.99

$

Usually ships in 2-12 days

0

34

Simplicity 1713500SM

* HARNESS, Upper

$125.99

$

Usually ships in 2-12 days

0

35

Simplicity 1707007SM

SWITCH, Lift (Hydro only)

$47.99

$

In Stock, only 4 left!

0

36

Simplicity 1715138SM

HOURMETER

$113.99

$

Usually ships in 2-12 days

0

37

Simplicity 1709188SM

PLUG, Dash

Note: Gear Models Only

$4.99

$

In Stock, only 1 left!

0

38

Simplicity 1708208

HARNESS, Wiring

Note: Gear Models Only

$

$

Not available

39

Simplicity 1708207SM

SWITCH

Note: Gear Models Only

$12.99

$

Usually ships in 2-12 days

0

40

Simplicity 1929477SM

SCREW, Taptite 10-24 x 1/2

Note: Gear Models Only

$4.49

$

Usually ships in 2-12 days

0
