1715 (139-262-100) - Cub Cadet Garden Tractor (SN: 147088 - 170600) Brake Pedal & Connections Parts Diagram

Garden Tractor

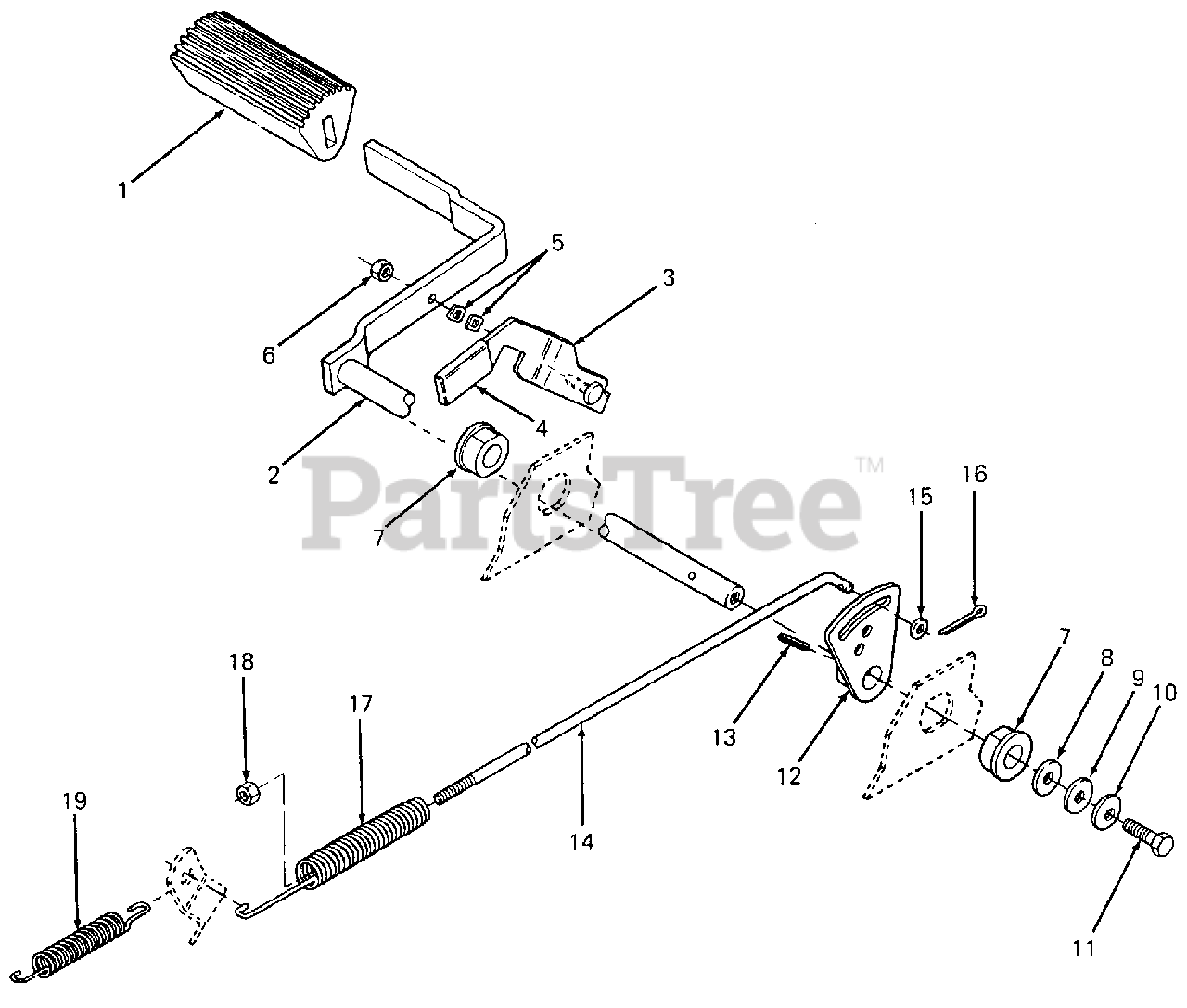

Brake Pedal & Connections Parts Diagram

  • Title

1

Cub Cadet 735-0189

Pad, Foot

$

$

Not available

2

Cub Cadet 703-1532

Pedal, Brake

Variations

Cub Cadet 703-1532-0498

BRAKE PEDAL ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 703-1393

Bracket, Parking Brake

Variations

Cub Cadet 703-1393-0498

BRACKET ASSEMBLY-PARKING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 720-3019

Grip, Parking Brake
(Superseded to 920-3019)

$

$

Not available

5

Cub Cadet 736-3001

Washer, Wave

$

$

Not available

6

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 748-0209

Bearing, Flange
(Superseded to 948-0209)

$22.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0156

Washer, Flat, .635 X 1.12 X .090 Thk

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 736-0176

Washer, Flat, .26 X .93 X .120 Thk

$4.99

$

In Stock, only 4 left!

0

10

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 703-1558

Cam, Brake

$

$

Not available

13

Cub Cadet 715-0134

Pin, Spiral Spring, 3/16 Dia X 1.5 Lg
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

14

Cub Cadet 747-3124

Rod, Brake

$

$

Not available

15

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0507

Pin, Cotter, 3/32 X .75 Lg

$4.49

$

In Stock, Qty 12

0

17

Cub Cadet 732-3043

Spring, Ext

$

$

Not available

18

Cub Cadet 712-0107

Nut, Hex Patch, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 732-3046

Spring, Brake Return

$

$

Not available
