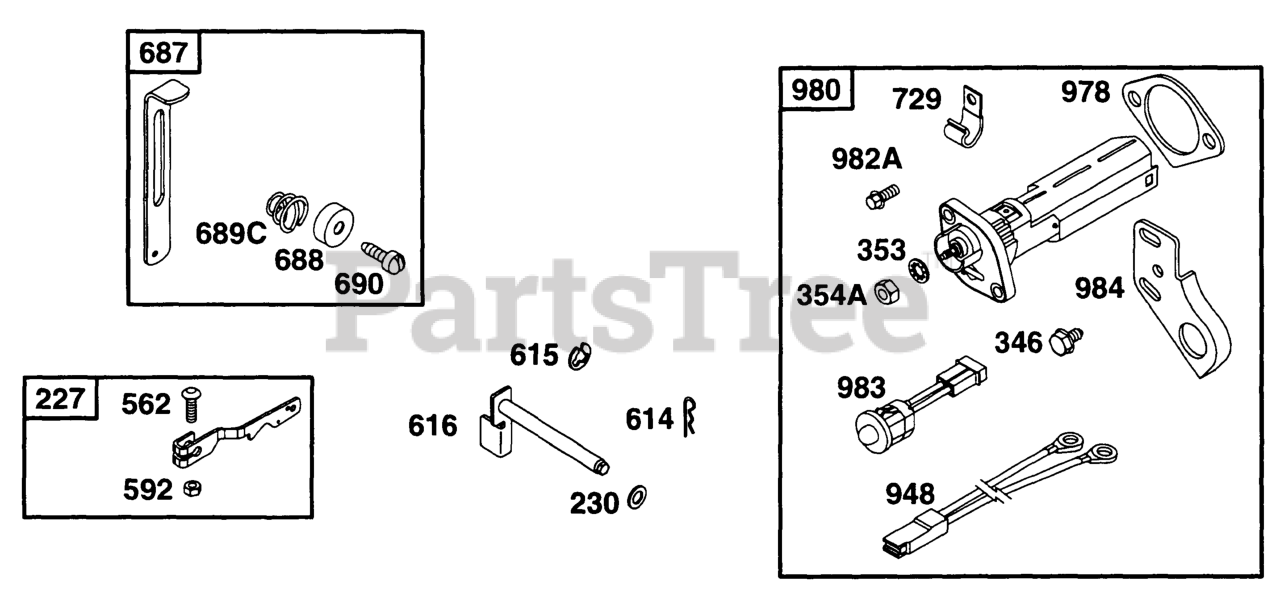

171432-0070-03 - Briggs & Stratton Horizontal Engine Controls, Oil Gard Parts Diagram

Horizontal Engine

Controls, Oil Gard Parts Diagram

  • Title
227

Briggs & Stratton 391965

Governor Control Le (For 1/4" Dia. Crank)
(Superseded to 692356)

$1.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 94927

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

346

Briggs & Stratton 94896

Screw, Tapping Hex
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354A

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 495241

Crank-Governor
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

687

Briggs & Stratton 390701

Slide-Friction Control
(Superseded to 691949)

$

$

Not available

688

Briggs & Stratton 221766

Spring-Friction
(Superseded to 690395)

$8.99

$

Usually ships in 2-12 days

0

690

Briggs & Stratton 92484

Screw-Slotted 10-32 X 1/2"

$3.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 223528

Clip, Retainer
(Superseded to 690430)

$4.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 225170

Clip-Wire
(Superseded to 691224)

$4.99

$

Usually ships in 2-12 days

0

948

Briggs & Stratton 398661

Harness-Wiring

$34.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 271736

Gasket, Switch
(Superseded to 273326S)

Note: Included in Gasket Set-Part No. 299577

$7.49

$

In Stock, only 1 left!

0

980

Briggs & Stratton 398182

Switch-Oil Gard

$102.99

$

Usually ships in 2-12 days

0

982A

Briggs & Stratton 94657

Screw, Hex Wash Hd
(Superseded to 690350)

$3.99

$

Usually ships in 2-12 days

0

983

Briggs & Stratton 398660

Light-Indicator

Note: (For Mounting With Light Bracket)

$

$

Not available

984

Briggs & Stratton 223773

Bracket-Stop Switch
(Superseded to 692340)

$5.49

$

Usually ships in 2-12 days

0
