171432-0047-02 - Briggs & Stratton Horizontal Engine Carburetor Assy Parts Diagram

Horizontal Engine

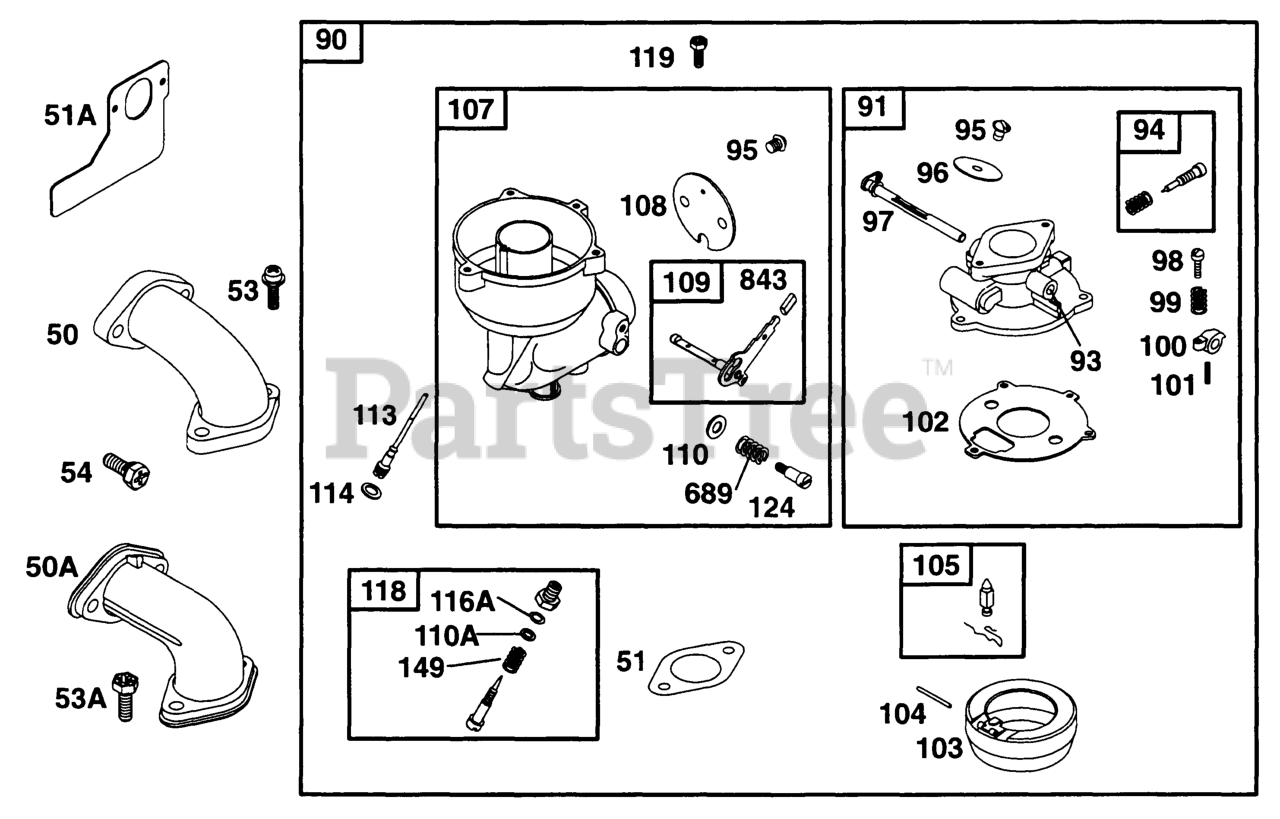

Carburetor Assy Parts Diagram

  • Title

50A

Briggs & Stratton 212478

Manifold-Intake

$22.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 213099

Manifold-Intake

$

$

Not available

51A

Briggs & Stratton 27828

Gasket-Spacer To Cylinder Mounting
(Superseded to 27828S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498533. Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 7

0

51

Briggs & Stratton 270684

Gasket-Intake Elbow

Note: Included in Carburetor Kit-Part No. 398235. Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 11

0

53A

Briggs & Stratton 94913

Screw, Hex Head Tor
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 94839

Screw-Shoulder

$4.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 1 left!

0

90

Briggs & Stratton 390323

Carburetor (Manual Choke)

$

$

Not available

91

Briggs & Stratton 399443

Body Assy-Upper Upper

$128.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Kit-Part No. 398235

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223370

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 212904

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Carburetor Body

Note: Included in Carburetor Kit-Part No. 398235

$4.49

$

In Stock, Qty 14

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Kit-Part No. 398235

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Included in Carburetor Kit-Part No. 398235

$7.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394682

Kit-Needle/seat (For Gravity Feed).

$9.99

$

In Stock, only 2 left!

0

107

Briggs & Stratton 399442

Body Assy-Lower Lower

$128.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 62872

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391987

Shaft-Choke (Manual)

$9.99

$

Usually ships in 2-12 days

0

110A

Briggs & Stratton 22235

Washer, Brass
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

110

Briggs & Stratton 222712

Washer-Friction

$5.49

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 398202

Nozzle-Carburetor

Note: Included in Carburetor Kit-Part No. 398235

$29.99

$

In Stock, only 2 left!

0

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Kit-Part No. 398235

$6.49

$

In Stock, only 1 left!

0

116A

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Kit-Part No. 398235

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 94152

Screw, Sem Hex Head (10-32 X 3/4")
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring-Needle Valve
(Superseded to 691592)

Note: Included in Carburetor Kit-Part No. 398235

$3.99

$

In Stock, only 4 left!

0

689

Briggs & Stratton 260847

Spring-Friction
(Superseded to 690529)

$9.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

843

Briggs & Stratton 280149

Sleeve-Lever
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!
