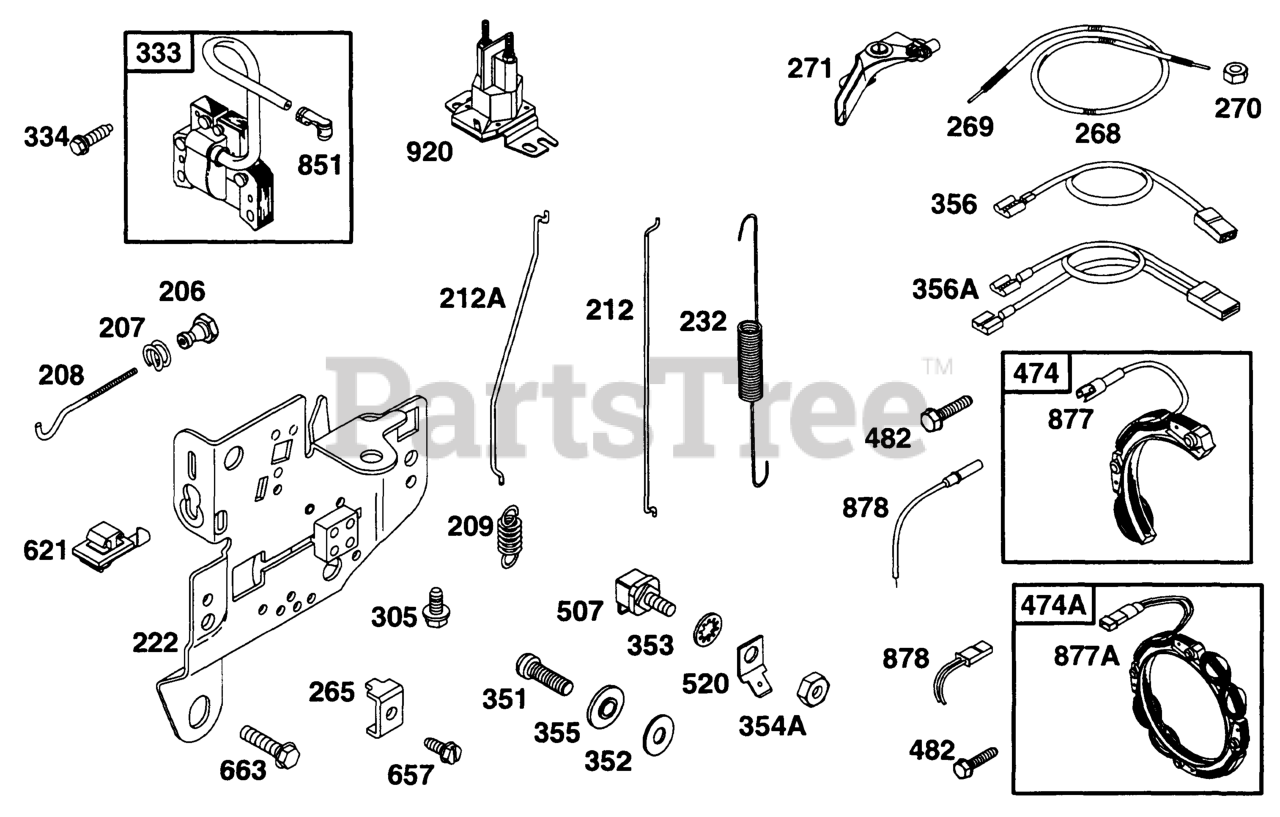

171431-0301-01 - Briggs & Stratton Horizontal Engine Controls, Elect Parts Diagram

Horizontal Engine

Controls, Elect Parts Diagram

  • Title

206

Briggs & Stratton 231266

Nut, Hex (#6-32 Thread)
(Superseded to 691771)

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 261959

Rod-Governor Control

$4.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260695

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

212A

Briggs & Stratton 262307

Link-Throttle

$

$

Not available

212

Briggs & Stratton 260872

Link-Throttle

$

$

Not available

222

Briggs & Stratton 399151

Bracket-Control (Manual Choke)

$

$

Not available

232

Briggs & Stratton 260478

Spring, Link Used On Mechanical Governor
(Superseded to 690545)

$

$

Not available

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 398811

Armature-Mag (Magnetron Ignition)

$63.99

$

In Stock, Qty 18

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

351

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354A

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 491391

Wire-Stop

$6.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 491927

Wire-Stop

$3.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

474

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 398525

Terminal-Insulated
(Superseded to 691972)

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 1 left!

0

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877A

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$18.99

$

In Stock, only 2 left!

0

878

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 807829

Solenoid/Starter
(Superseded to 691656)

$31.99

$

In Stock, Qty 20+

0
