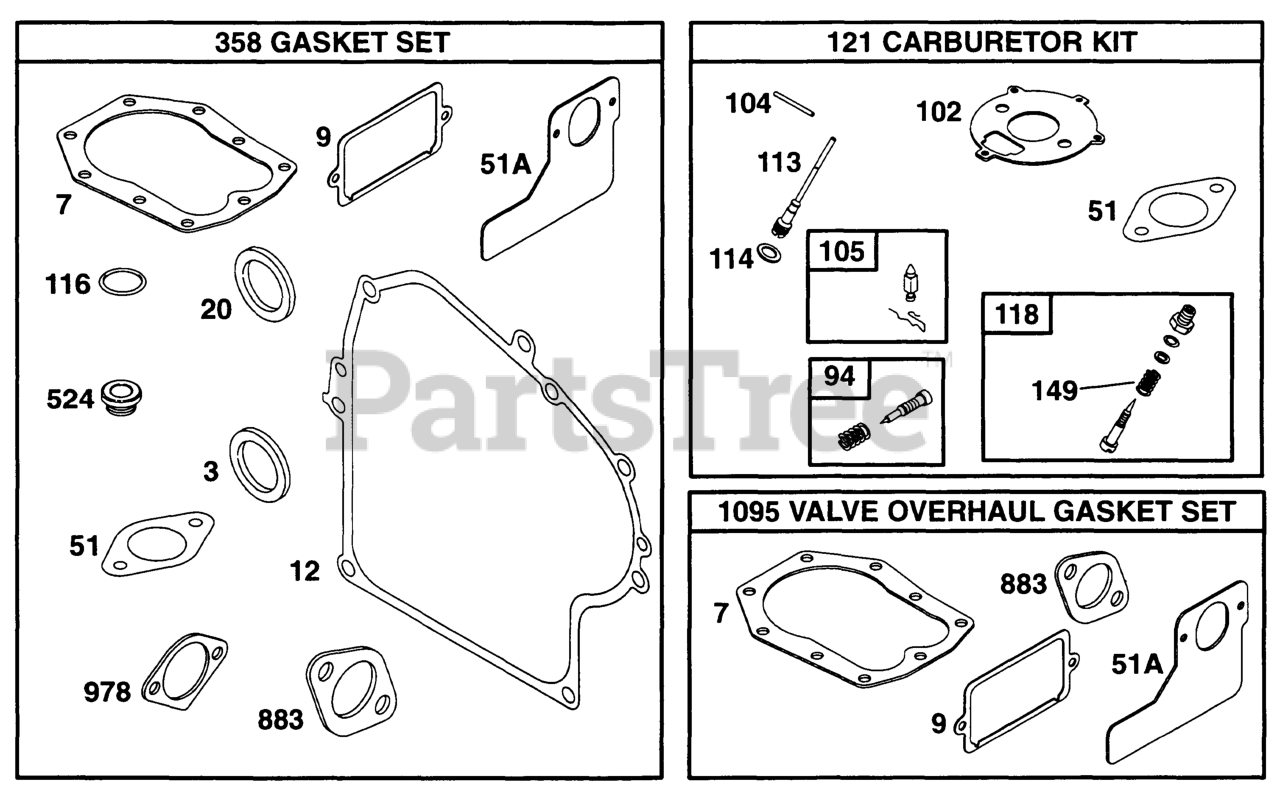

171431-0118-01 - Briggs & Stratton Horizontal Engine Gasket Sets Parts Diagram

Horizontal Engine

Gasket Sets Parts Diagram

  • Title

3

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

Note: Included in Gasket Set-Part No. 299577

$9.49

$

In Stock, Qty 11

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 299577

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272163

Gasket-Cylinder Head
(Superseded to 272163S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498533. Included in Gasket Set-Part No. 299577

$7.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498533. Included in Gasket Set-Part No. 299577

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271701

Gasket, Crankcase (.015")
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577

$8.99

$

In Stock, Qty 9

0

12

Briggs & Stratton 27876

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

12

Briggs & Stratton 27877

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 299577

$10.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 299577

$6.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 27828

Gasket-Spacer To Cylinder Mounting
(Superseded to 27828S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498533. Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 10

0

51

Briggs & Stratton 270684

Gasket-Intake Elbow

Note: Included in Carburetor Kit-Part No. 398235. Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 11

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Kit-Part No. 398235

$11.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 27918

Gasket-Carburetor Body

Note: Included in Carburetor Kit-Part No. 398235

$4.49

$

In Stock, Qty 16

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Kit-Part No. 398235

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Included in Carburetor Kit-Part No. 398235

$7.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394682

Kit-Needle/seat (For Gravity Feed).

$9.99

$

In Stock, only 2 left!

0

113

Briggs & Stratton 398202

Nozzle-Carburetor

Note: Included in Carburetor Kit-Part No. 398235

$29.99

$

In Stock, only 2 left!

0

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Kit-Part No. 398235

$6.49

$

In Stock, only 1 left!

0

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Kit-Part No. 398235

$12.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 398235

Carburetor Overhaul Kit
(Superseded to 394693)

$31.99

$

In Stock, Qty 20+

0

149

Briggs & Stratton 26336

Spring-Needle Valve
(Superseded to 691592)

Note: Included in Carburetor Kit-Part No. 398235

$3.99

$

In Stock, only 4 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

524

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 299577

$8.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Valve Overhaul Gasket Set-Part No. 498533. Included in Gasket Set-Part No. 299577

$5.49

$

In Stock, only 4 left!

0

978

Briggs & Stratton 271736

Gasket, Switch
(Superseded to 273326S)

Note: Included in Gasket Set-Part No. 299577

$7.49

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498533

Gasket Set-Valve Overhaul

$24.99

$

Usually ships in 2-12 days

0
