1712 (143-782-100) - Cub Cadet Garden Tractor Sleeve Hitch-SN 719999 & Below Parts Diagram

Garden Tractor

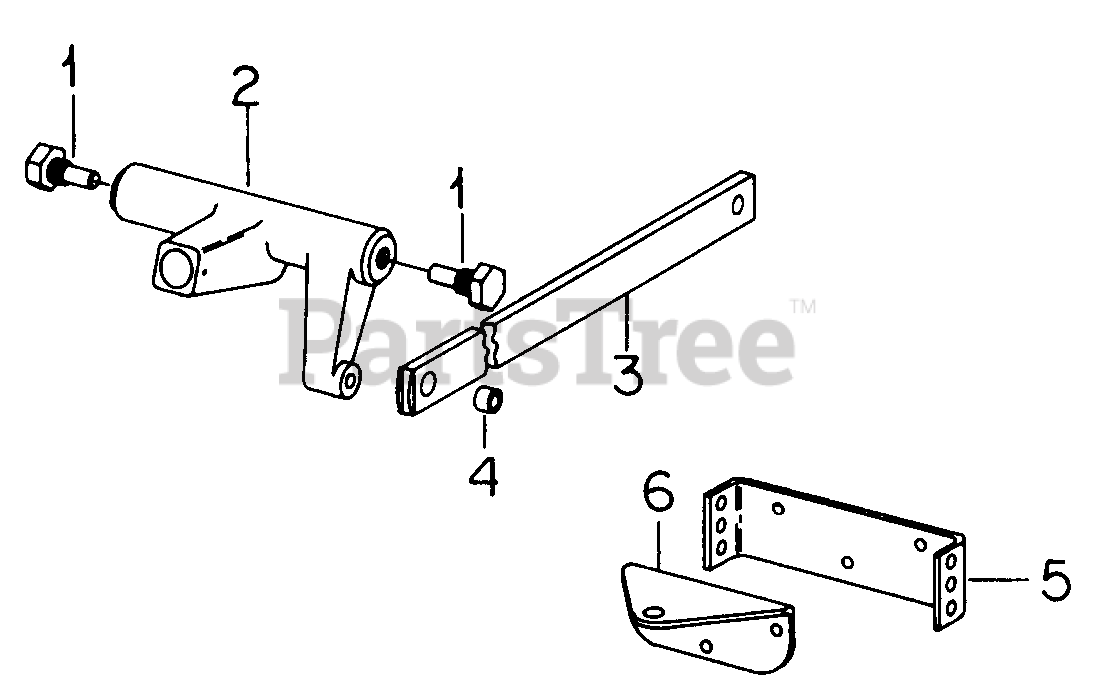

Sleeve Hitch-SN 719999 & Below Parts Diagram

  • Title
1

Cub Cadet IH-64872-C1

Bolt, Stud Shaft

$

$

Not available

Cub Cadet IH-219759

Nut, 7/8 NF Jam Type 5

$

$

Currently unavailable

2

Cub Cadet 719-3024

Lever, Lift

$

$

Not available

Bolt, 1/2 X 1-3/8 Type 8

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-3003

Washer, .531 X .750 X .054

$

$

Not available

Cub Cadet 736-3013

Washer, .531 X 1.000 X .027

$4.49

$

In Stock, only 3 left!

0

3

Cub Cadet 703-0408

Bar, Lift

$

$

Not available

Cub Cadet 711-3081

Pin, 1/2 X 2.562 Pln Clevis
(Superseded to 711-0761)

$19.99

$

In Stock, only 4 left!

0

4

Cub Cadet 711-3073

Spacer, Lift Arm

$

$

Not available

5

Cub Cadet 703-0400

Link, Lower Hitch
(Superseded to 703-0400-0498)

Variations

Cub Cadet 703-0400-0498

LINK-HITCH-LWR - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Type 5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-0401

Drawbar, Fixed

$

$

Not available
