1712 (142-784-100) - Cub Cadet Garden Tractor Crankcase-Tractors W/sn 726124 & Below Parts Diagram

Garden Tractor

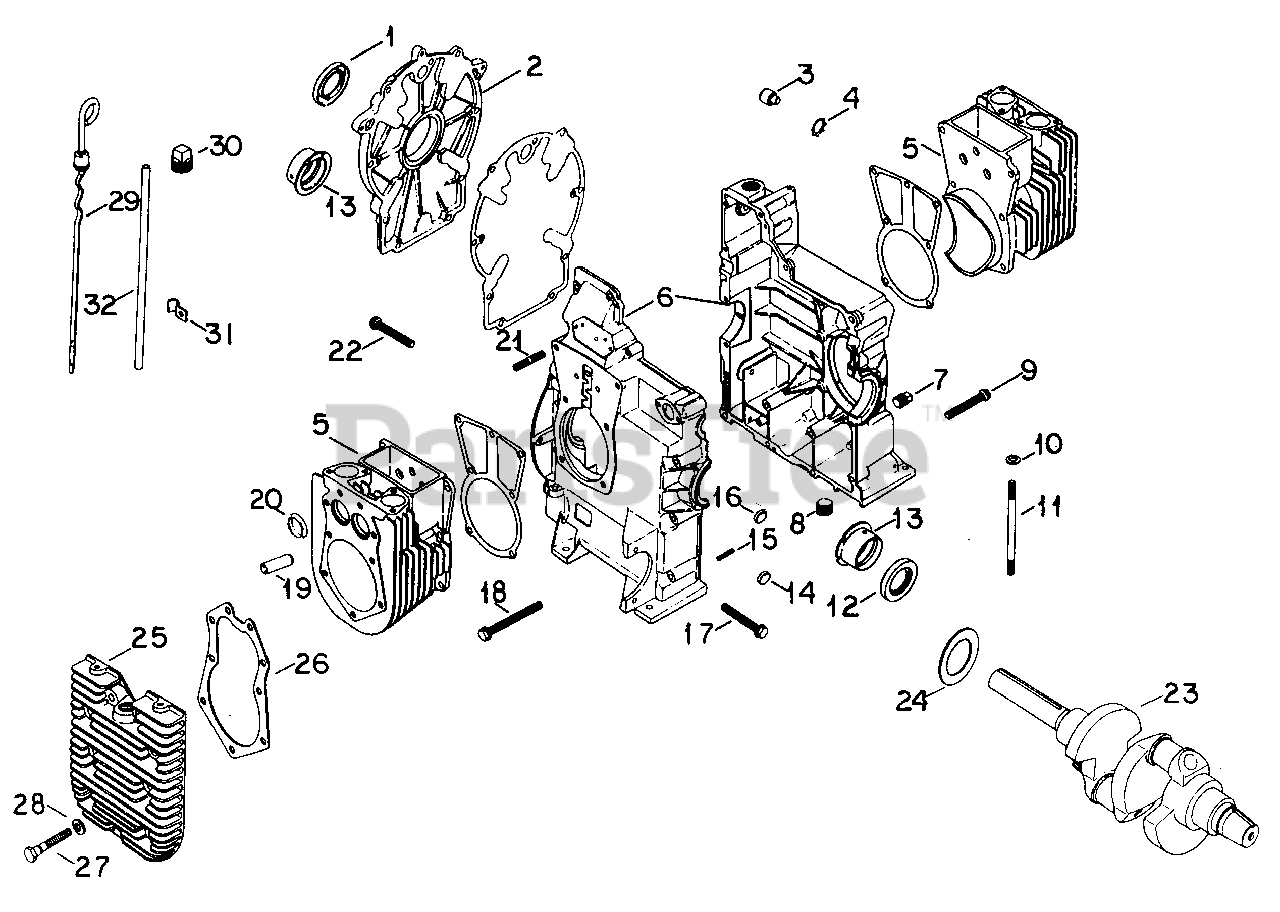

Crankcase-Tractors W/sn 726124 & Below Parts Diagram

  • Title

~NLA

Engine Assy, Short Block

Note: (Tractor w/S/N 686554 and Below) (Order Complete Engine KH-24302)

$

$

Not available

Cub Cadet KH-52-522-98

Engine Assy, Short Block

Note: (Tractor w/Serial No. 686555 and Above)

$

$

Not available

Cub Cadet KH-25-112-02

Spacer, Front PTO Clutch Mtg

$

$

Not available

Cub Cadet KH-24302

Engine, Complete

$

$

Not available

1

Cub Cadet KH-X-583-5

Seal, Oil

$

$

Not available

2

Cub Cadet KH-52-755-56

Kit, Closure Plate

Note: (Replaces IH-78481-C1)

$

$

Not available

3

Cub Cadet KH-52-078-02

Shaft, Governor

$

$

Not available

4

Cub Cadet KH-X-269-43

Ring, Retaining

$

$

Not available

5

~NLA

Kit, Cylinder

Note: (See Service Bulletin CC194)

$

$

Not available

6

Crankcase - Not Serviced Separately

Note: (Order Short Block Engine Assy)

$

$

Not available

7

Cub Cadet KH-52-139-02

Plug, Side Drain, 3/8

$

$

Not available

8

Cub Cadet KH-X-75-32

Plug, Bottom Drain, 3/8
(Superseded to KH-25-139-62-S)

$3.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-25-086-10

Screw, 5/16-18 X 1-1/2 Washer Head

$

$

Not available

10

Cub Cadet KH-41-468-01

Washer, Plain, 21/64

$

$

Not available

11

Cub Cadet KH-X-352-33

Stud, 5/16-18 X 4-1/64

$

$

Not available

12

Cub Cadet KH-52-032-07

Seal, Oil

Note: (Tractors w/Serial No. 686554 and Below)

$

$

Not available

12

Cub Cadet KH-52-032-10

Seal, Front Oil
(Superseded to KH-52-032-10-S)

Note: (Tractors w/Serial No. 686555 and Above)

$23.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-52-030-10

Bearing, Sleeve
(Superseded to KH-52-030-10-S)

$120.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-52-030-11

Bearing, Sleeve, .010 U/S
(Superseded to KH-52-030-11-S)

$240.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-52-030-12

Bearing, Sleeve, .020 U/S

$

$

Not available

14

Cub Cadet KH-X-702-4

Plug, Cup

$

$

Not available

15

Cub Cadet 715-3004

Pin, 1/8 X 1-1/4 Slt Spr

$

$

Not available

16

Cub Cadet KH-X-702-5

Plug, Cup

$

$

Not available

17

Cub Cadet KH-25-086-13

Screw, 3/8-16 X 3-5/8 Washer Head

$

$

Not available

18

Cub Cadet KH-25-086-11

Screw, 5/16-18 X 3-1/2 Washer Head

$

$

Not available

19

Cub Cadet KH-52-316-06

Guide, Valve
(Superseded to KH-52-316-08)

$

$

Not available

20

Cub Cadet KH-52-332-03

Seat, Valve Insert

Note: (Tractors w/Serial No. 686554 and Below)

$

$

Currently unavailable

20

Cub Cadet KH-230265

Seat, Valve Insert

Note: (Tractors w/Serial No. 686555 and Above)

$

$

Not available

21

Cub Cadet KH-52-072-01

Stud, 3/8-16 X 2

$

$

Currently unavailable

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet KH-X-22-1

Washer, 3/8 Hv Lock

$

$

Not available

22

Cub Cadet IH-78498-C1

Screw, 5/16-18 X 1 Washer Head

$

$

Currently unavailable

23

Cub Cadet KH-52-014-17

Crankshaft

Note: (Tractors w/Serial No. 686554 and Below)

$

$

Currently unavailable

23

Cub Cadet KH-52-014-58

Crankshaft

Note: (Tractors w/Serial No. 686555 and Above)

$

$

Currently unavailable

24

Cub Cadet KH-52-468-03

Washer, Thrust, .123 OR

$

$

Not available

24

Cub Cadet KH-52-468-04

Washer, Thrust, .132 OR

$

$

Not available

24

Cub Cadet KH-52-468-05

Washer, Thrust, .141

$

$

Not available

25

Cub Cadet KH-52-015-08

Head, Cylinder

$

$

Not available

26

Cub Cadet KH-52-041-20

Gasket, Cylinder Head
(Superseded to KH-52-041-20-S)

$37.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-41-086-02

Screw, 5/16-18 X 1-1/2

$

$

Not available

28

Cub Cadet KH-220534

Washer, 5/16

$

$

Not available

29

Cub Cadet KH-52-038-04

Gauge, Oil Dipstick

$

$

Not available

30

Cub Cadet IH-444595

Plug, Oil Fill, 3/4

$

$

Currently unavailable

31

Cub Cadet KH-52-154-01

Clip, Tube

$

$

Not available

Cub Cadet KH-X-67-64

Screw, No. 10NF X 3/8 H/Whd Tap

$

$

Not available

32

Cub Cadet IH-78507-C1

Tube, Oil Dipstick

$

$

Not available

Cub Cadet KH-52-755-92

Set, Gasket Overhaul & Oil Seal
(Superseded to KH-25-755-37-S)

Note: (Tractor w/Serial No. 686554 and Below)

$225.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-52-055-01

Gasket, Cover
(Superseded to KH-52-055-01-S)

$7.49

$

In Stock, Qty 10

0

Cub Cadet KH-52-032-04

Seal, Breather
(Superseded to KH-52-032-04-S)

$14.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-277069

Gasket, Elbow
(Superseded to KH-25-041-06)

$

$

Not available

Cub Cadet KH-52-032-13

Seal, Valve Stem
(Superseded to KH-52-032-13-S)

$33.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-583-5

Seal, Oil

$

$

Not available

Cub Cadet KH-52-041-20

Gasket,
(Superseded to KH-52-041-20-S)

Note: Includes Head Gasket, Head to Crankcase Gasket, Crankcase Cover Gasket, Fuel Pump Gasket, Intake Manifold Gasket, Exhaust Manifold

$37.99

$

In Stock, only 2 left!

0

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-52-041-11

Gasket, Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

Cub Cadet KH-52-755-93

Set, Gasket Overhaul
(Superseded to KH-25-755-37-S)

Note: (Tractor w/Serial No. 686555 and Above)

$225.99

$

Usually ships in 2-5 days

0
