1711 (142-782-100) - Cub Cadet Garden Tractor Hydraulic Lift Cylinder Parts Diagram

Garden Tractor

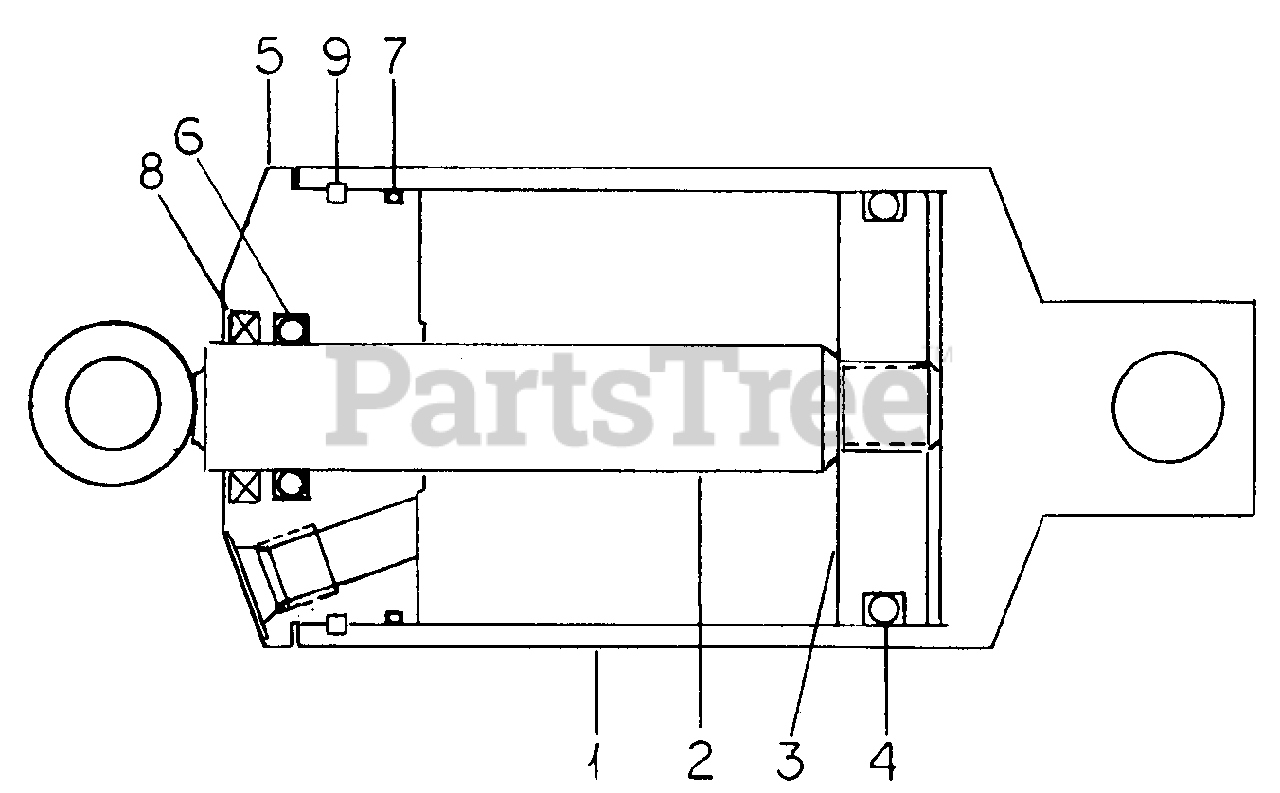

Hydraulic Lift Cylinder Parts Diagram

  • Title

Cub Cadet IH-224494-C91

Cylinder Assy, Hydraulic 63.40 X 59.7

Note: (For Tractors w/Serial No. 678912 and Below)

$

$

Not available

1

Body Assy, Hyd Cyl

Note: (Order Cylinder Assembly)

$

$

Not available

2

Rod Assy, Hydraulic Cylinder Piston

Note: (Serial No. 678912 and Below)

$

$

Not available

Rod Assy, Hydraulic Cylinder Piston

Note: (Serial No. 678913 and Above)

$

$

Not available

Cub Cadet IH-71327-R1

Bushing, Hyd Cylinder Piston Rod End

$

$

Currently unavailable

3

Cub Cadet IH-224498-C1

Piston, Hyd Cylinder

$

$

Currently unavailable

4

O-Ring, 2-1/8 X 2-1/2 X 3/16 Hyd Cyl Piston

Note: (Order Kit 759-3431)

$

$

Not available

5

Cub Cadet IH-138162-C1

Head, Hyd Cyl Front

$

$

Currently unavailable

6

O-Ring, 3/4 X 1 X 1/8 Hyd Cyl Piston Rod

Note: (Order Kit 759-3431)

$

$

Not available

7

O-Ring, 2-5/16 X 2-1/2 X 3/32 Hyd Cyl Front Head

Note: (Order Kit 759-3431)

$

$

Not available

8

Seal, Hyd Cyl Piston Rod Wiper

Note: (Order Kit 759-3431)

$

$

Not available

9

Retainer, Hyd Cyl Front Head

Note: (Order Kit 759-3431)

$

$

Not available

Cub Cadet 759-3431

Kit, Hyd Cylinder Service

Note: (Consists of Ref No. 4, 6, 7, 8 & 9)

$

$

Not available
