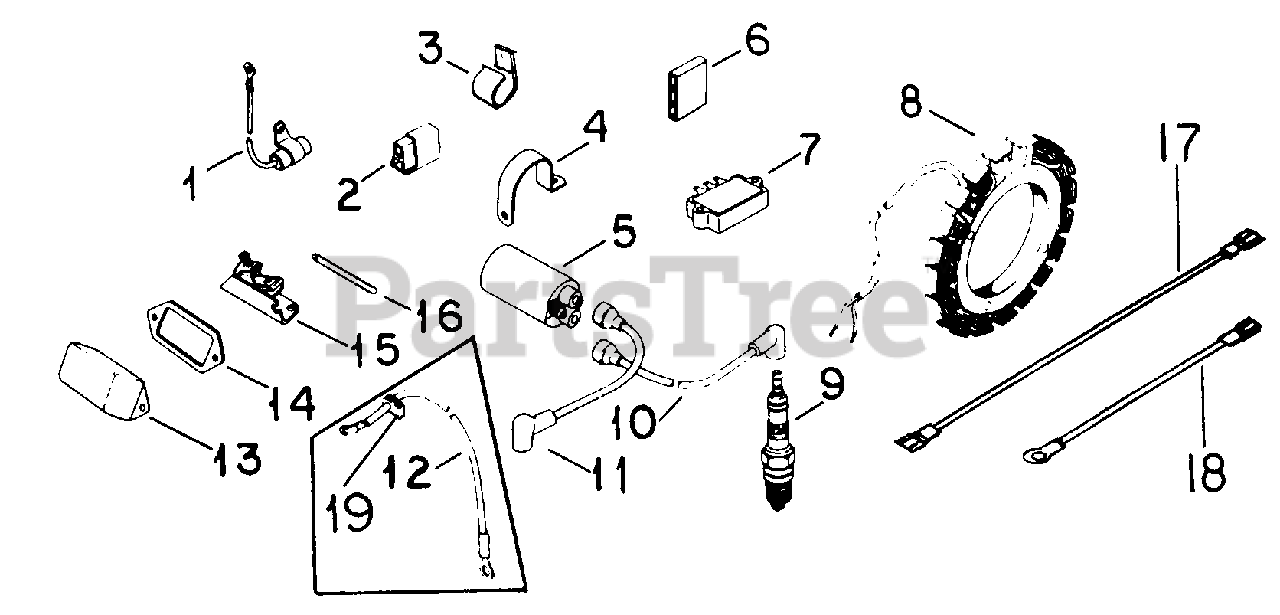

1711 (142-782-100) - Cub Cadet Garden Tractor Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

Cub Cadet KH-47-154-01

Clip, Cable
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, only 4 left!

0

4

$

$

Not available

5

Cub Cadet KH-52-755-48

Kit, Ignition Coil
(Superseded to KH-52-755-48-S)

Note: (Includes Ref No. 10 & 11)

$424.99

$

Usually ships in 2-5 days

0

Cub Cadet IH-26976-R1

Screw, 1/4 X 3/8 H/Whd Tap

$

$

Not available

6

Cub Cadet KH-236602

Connector
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-25-755-03

Rectifier, Regulator

$

$

Not available

Bolt, 1/4 X 1 Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available

8

Cub Cadet KH-237878

Stator Assy

$149.99

$

In Stock, Qty 7

0

Cub Cadet 710-0651

Screw, No. 10 X 3/4 H/Whd Tap

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 759-3334

Spark Plug

$15.99

$

Usually ships in 3-6 days

0

10

Cable Assy, Hi-Tension 19 In.

Note: (Order Kit KH-52-755-49)

$

$

Not available

11

Cable Assy, Hi-Tension 11 In.

Note: (Order Kit KH-52-755-49)

$

$

Not available

12

Cub Cadet KH-A-230371

Cable, Coil to Breaker Points

Note: (Tractors w/Serial No. 726124 and Below)

$

$

Not available

13

Cub Cadet KH-51-096-02

Cover, Breaker

$

$

Not available

Cub Cadet KH-X-131-1

Screw, No. 10 X 3/8

$

$

Not available

14

Cub Cadet KH-52-041-11

Gasket, Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet KH-47-150-03

Breaker, Ignition Points

Note: (Replaces IH-385403-R91)

$

$

Not available

Cub Cadet KH-X-131-1

Screw, No. 10 X 3/8

$

$

Not available

16

Cub Cadet KH-52-411-05

Rod, Breaker Push

$

$

Not available

17

Cub Cadet KH-25-518-10

Wire, Regulator/Rectifier Lead, 16 In.

Note: (Tractors w/Serial No. 726125 and Above)

$

$

Not available

18

Cub Cadet KH-25-518-06

Wire, Coil, 6 In.

Note: (Tractors w/Serial No. 726125 and Above)

$

$

Not available

19

$

$

Not available

Cub Cadet KH-52-755-49

Kit, Hi-Tension Cables

Note: (Includes Ref No. 10 & 11)

$

$

Not available
