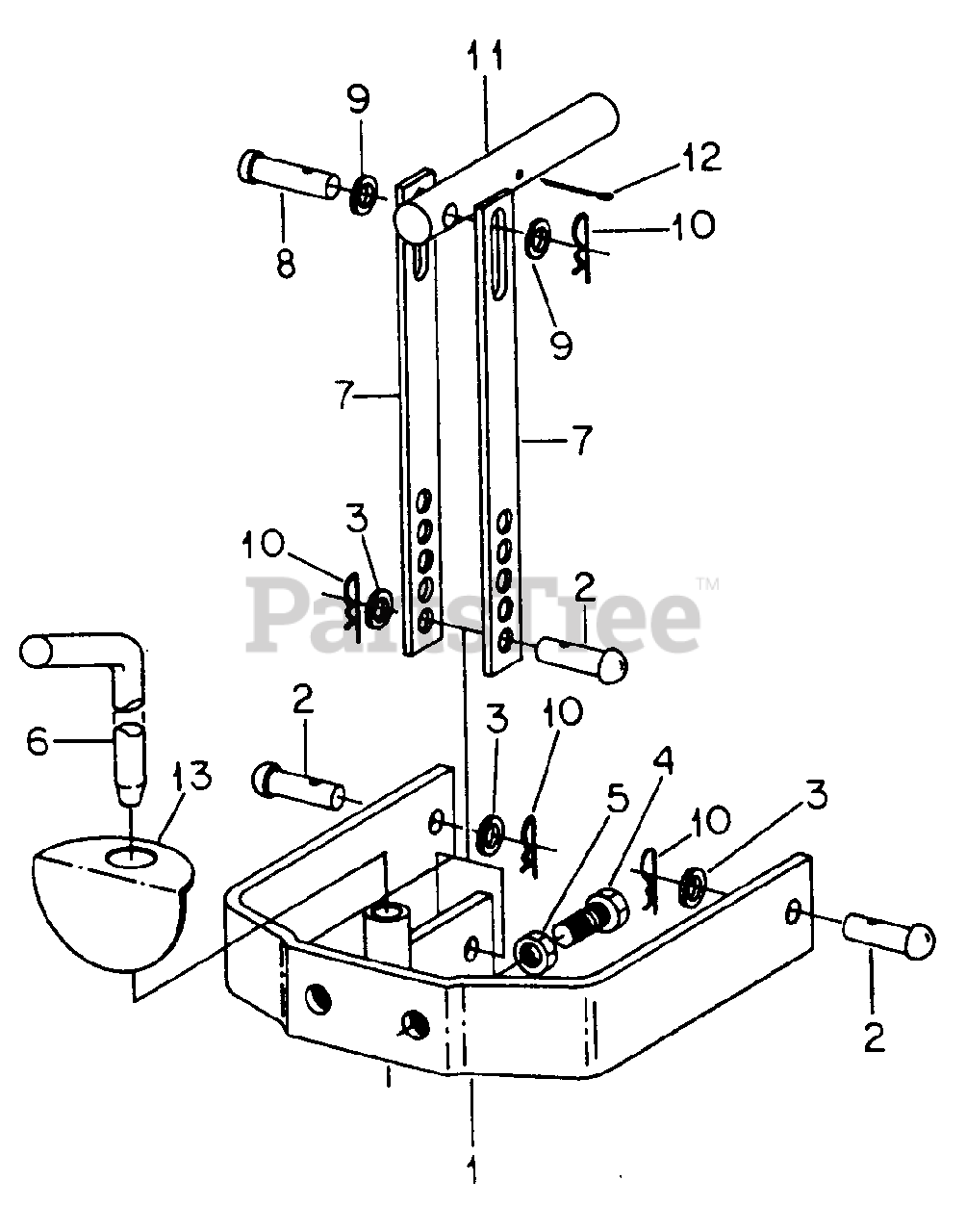

1710 (2050592U) - Cub Cadet Garden Tractor Sleeve Hitch Adapt.-S/N 719999 Down-To Mt Yoke Type Implts Parts Diagram

Garden Tractor

Sleeve Hitch Adapt.-S/N 719999 Down-To Mt Yoke Type Implts Parts Diagram

  • Title

1

Cub Cadet BR-H-190

Adapter, Sleeve Hitch

$

$

Not available

2

Cub Cadet BR-H-200P

Pin, 1/2 X 1.500 Hd Type 1

$

$

Currently unavailable

3

Cub Cadet 736-0272

Washer, .531 X 1.062 X .074

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet BR-IM2032P

Bolt, 5/8 X 2 Type 5

$

$

Currently unavailable

5

Cub Cadet 712-3015

Nut, 5/8 Jam Type 5

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet BR-H-130P-01

Pin, Sleeve
(Superseded to 711-0282)

$72.99

$

Usually ships in 3-6 days

0

7

Cub Cadet BR-H-193

Strap, Lift

$

$

Not available

8

Cub Cadet BR-H-199P

Pin, 1/2 X 2.500 Type 5 Hd

$

$

Not available

9

Cub Cadet 736-0272

Washer, .531 X 1.062 X .074

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet BR-D-146P

Pin, QA Cotter

$

$

Not available

11

Cub Cadet BR-H-194

Rod, Lift

$

$

Not available

12

Cub Cadet BR-50M0632P

Pin, 3/16 X 2 Cot

$

$

Currently unavailable

Cub Cadet 714-3001

Pin, 1/8 X1-1/2 Cot
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet BR-H-158

Plate, Stabilizer

$

$

Currently unavailable
