1710 (145-682-399) - Cub Cadet Garden Tractor Implement Lift Handle-S/N 716388 & Up Parts Diagram

Garden Tractor

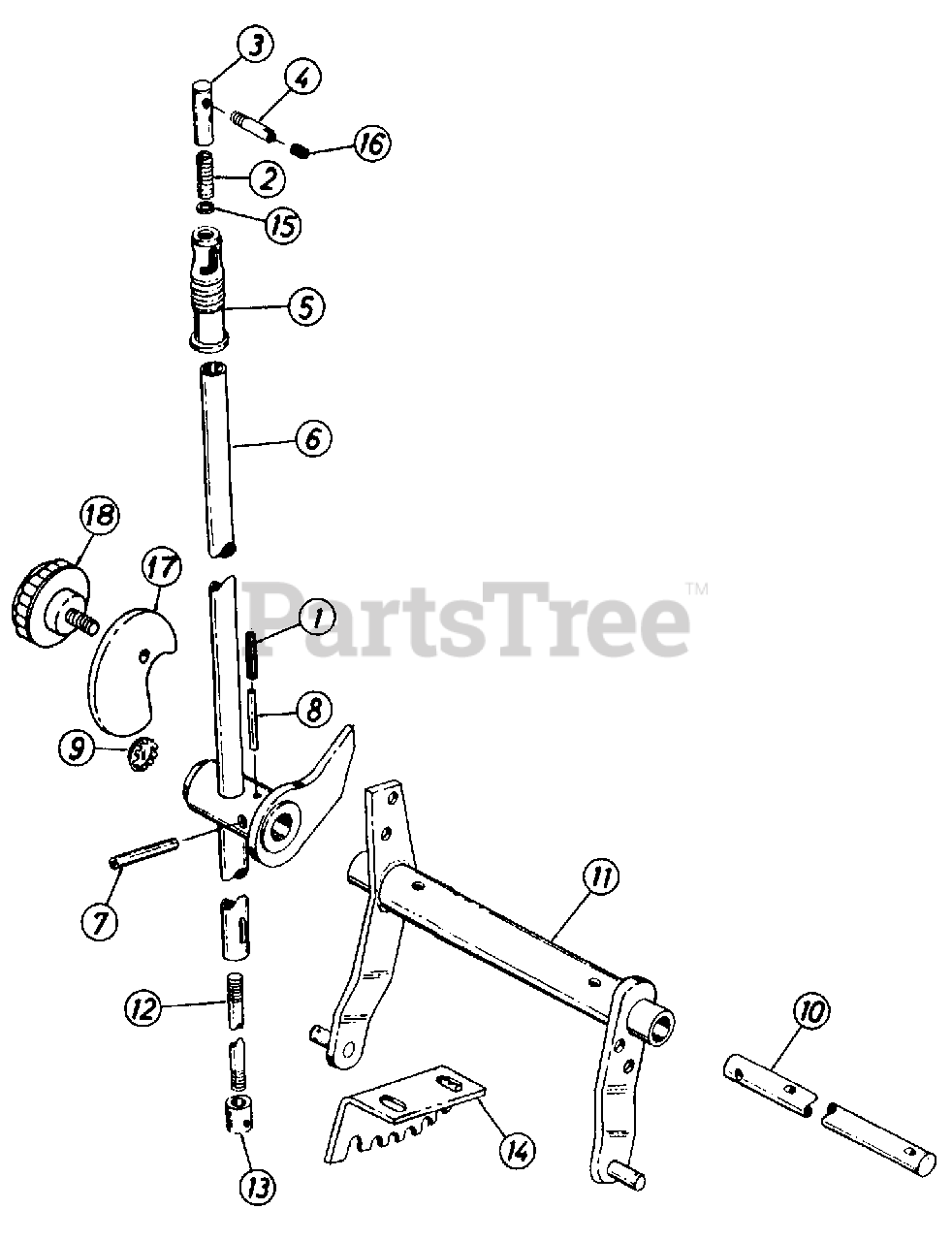

Implement Lift Handle-S/N 716388 & Up Parts Diagram

  • Title

1

Cub Cadet 720-3002

Pointer, Lift

$

$

Not available

2

Cub Cadet 732-3005

Spring, Lift Handle
(Superseded to 932-3005)

$9.49

$

In Stock, only 1 left!

0

3

Cub Cadet 711-3015

Pin, Release

$

$

Not available

4

Cub Cadet 711-3124

Pin, Float
(Superseded to 911-3124)

$

$

Not available

5

Cub Cadet 720-3013

Grip, Lift Handle

$

$

Not available

6

Cub Cadet 703-0841

Lever Assy, Lift

$

$

Not available

7

Cub Cadet 715-3020

Pin, 3/8 X 2 Hvy Pln Cld Spr

$

$

Not available

8

Cub Cadet 715-3025

Pin, 3/16 X 3 Med Pln Cld Spr

$

$

Not available

9

Cub Cadet 726-3005

Plug, 1.0 Hole Dia Crb Button

$

$

Not available

10

Cub Cadet 738-3043

Rockshaft

$

$

Not available

11

Cub Cadet 703-0836

Arm Assy, Rockshaft

$

$

Not available

Cub Cadet 715-3020

Pin, 3/8 X 2 Hvy Pln Cld Spr

$

$

Not available

12

Cub Cadet 747-3011

Stud, Handle

$

$

Currently unavailable

13

Cub Cadet 711-3016

Rod, Handle Release

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Hvy Pln Cld Spr

$8.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-0080

Ratchet, Handle

Variations

Cub Cadet 703-0080-0637

BRACKET-RATCHET - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 710-0514

Bolt, 3/8 X 1 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, 3/8 Cad P/T Lock Type 5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-3010

Washer, .406 X .812 X .134 Phc Hdn

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-3009

Washer

$

$

Not available

16

Cub Cadet 720-3014

Cap, Float Lock Pin

$

$

Not available

17

Cub Cadet 703-0189

Cam , Lift Handle Stop

Variations

Cub Cadet 703-0189-0498

STOP CAM-LIFT HAND - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

18

Cub Cadet 720-3005

Knob, Torque

$

$

Not available
