1710 (142-682-399) - Cub Cadet Garden Tractor Engine Cooling Parts Diagram

Garden Tractor

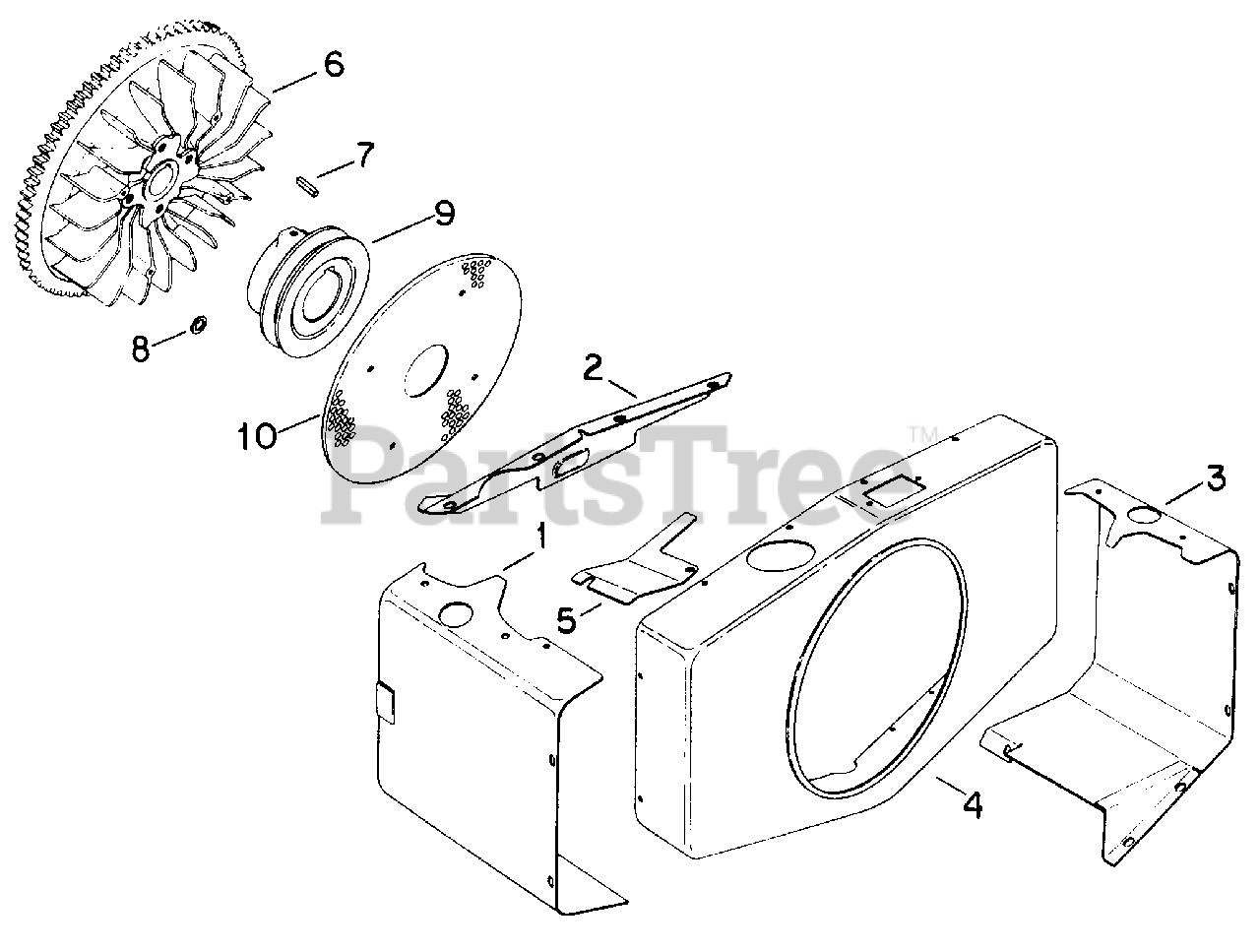

Engine Cooling Parts Diagram

  • Title

1

Cub Cadet KH-52-063-21

Shroud, Cylinder Head
(Superseded to KH-52-063-21-S)

$

$

Not available

2

Cub Cadet IH-78454-C1

Support, Upper Housing

$

$

Not available

3

Cub Cadet IH-80053-C1

Shroud, Cylinder Head

$

$

Currently unavailable

4

~NLA

Housing, Blower

Note: (Tractors w/Serial No. 669970 and Below)

$

$

Not available

Cub Cadet KH-52-027-09

Housing, Blower

Note: (Tractors w/Serial No. 669971 and Above)

$

$

Currently unavailable

Cub Cadet 710-0776A

Screw, 1/4 X 1/2 H/Whd Tap
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet KH-52-063-01

Shroud, Cylinder Top
(Superseded to KH-52-063-01-S)

$

$

Not available

6

Cub Cadet KH-52-025-19

Flywheel Assy

Note: (Tractors w/Serial No. 686554 and Below)

$

$

Not available

Cub Cadet KH-52-025-23

Flywheel Assy

Note: (Tractors w/Serial No. 686555 to 726124)

$

$

Not available

Cub Cadet KH-52-025-34

Flywheel Assy

Note: (Tractors w/Serial No. 726125 and Above)

$

$

Not available

7

Cub Cadet KH-X-286-17

Key

$

$

Not available

8

Cub Cadet KH-52-114-01

Washer, Flywheel

$

$

Not available

Cub Cadet 710-0191

Bolt, 3/8-NF X 1-1/4 Type 5

$4.99

$

In Stock, Qty 8

0

Cub Cadet KH-X-22-1

Washer, 3/8 Hv Lock

$

$

Not available

9

Cub Cadet KH-52-755-61

Cup, Drive

$

$

Not available

10

Cub Cadet KH-52-755-30

Kit, Grass Screen

$

$

Not available

Cub Cadet KH-47-086-08

Screw, 1/4 X 5/8 Nylock

$

$

Not available

Cub Cadet 736-0173

Washer, 1/4 X 3/4

$4.49

$

In Stock, only 3 left!

0
