170702-1611-XX - Briggs & Stratton Vertical Engine Carburetor Assy,A/C Groups Parts Diagram

Vertical Engine

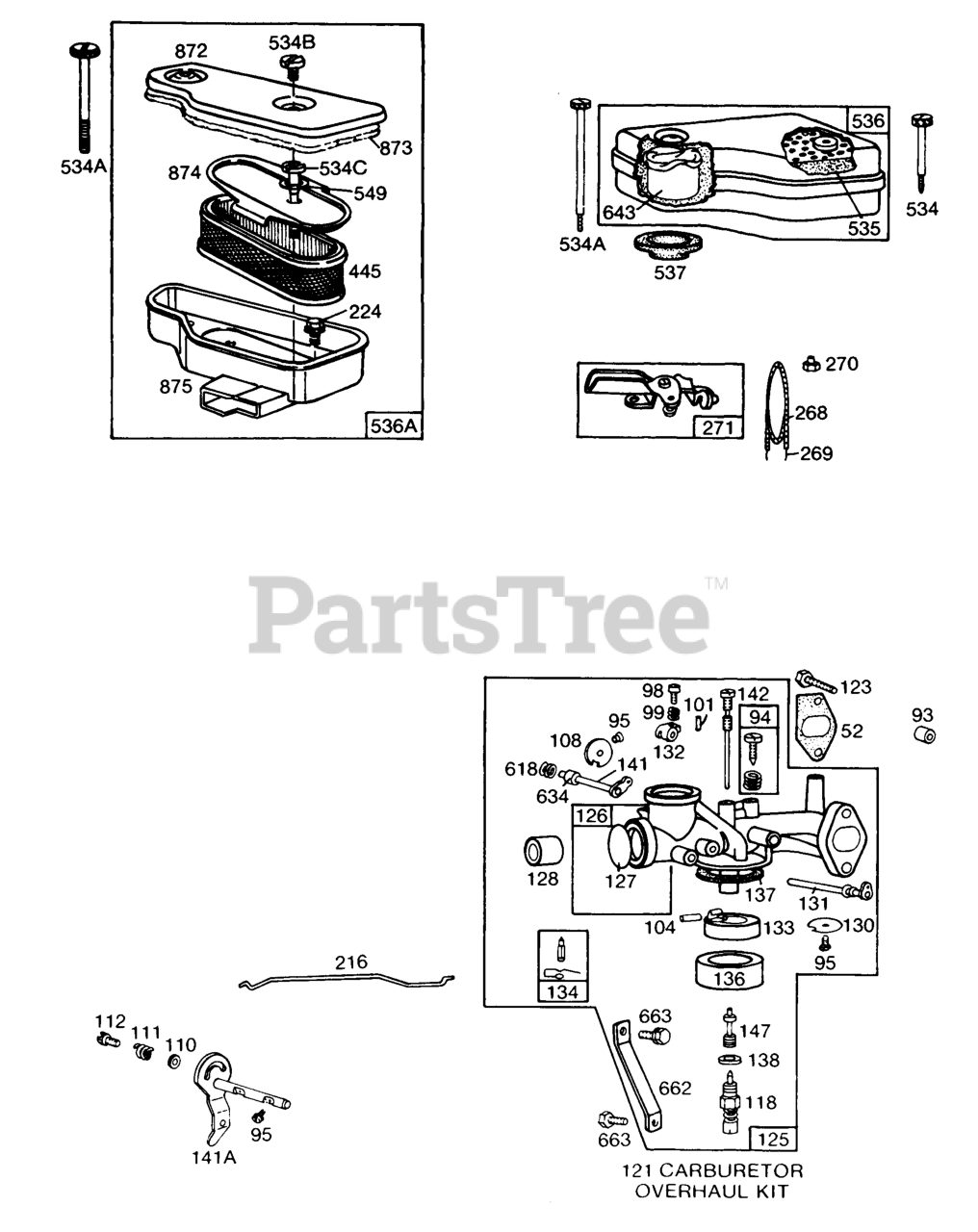

Carburetor Assy,A/C Groups Parts Diagram

  • Title

52

Briggs & Stratton 270538

Gasket-Intake Elbow Mounting
(Superseded to 692915)

$5.49

$

In Stock, only 1 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 394698

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 394698

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 220899

Washer-Choke Lever

$3.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26229

Spring-Choke Lever

$4.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 23270

Screw-Choke Lever

$4.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 391233

Valve-Needle
(Superseded to 396795)

Note: Included in Carburetor Overhaul Kit-Part No. 394698

$17.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 299852

Carburetor Kit

Note: Used Before Code Date 81033000

$

$

Not available

121

Briggs & Stratton 394698

Carburetor Overhaul Kit

Note: Used After Code Date 81032700

$32.99

$

In Stock, Qty 14

0

123

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 390411

Carburetor Assy. (Manual Choke)

$

$

Not available

126

Briggs & Stratton 299851

Body Assy.-Lower Carburetor

$94.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221997

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211682

Venturi-Carburetor

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 221986

Valve-Throttle

$7.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 391512

Shaft And Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Throttle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$

$

Not available

134

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Order 394683 for Fuel Pump Application. Included in Carburetor Overhaul Kit-Part No. 394698

$7.99

$

In Stock, only 3 left!

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Float Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 394698

$3.49

$

In Stock, Qty 17

0

138

Briggs & Stratton 222014

Washer-Float Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 394698

$4.99

$

In Stock, Qty 9

0

141A

Briggs & Stratton 299647

Shaft And Lever-Manual Choke

$16.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 390684

Shaft-Choke (Choke-A-Matic)

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 394698

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 230932

Screw-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 394698

$

$

Not available

216

Briggs & Stratton 261117

Link-Choke

$6.99

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 94018

Screw, Machine Hex
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is required, specify length in inches; if shorter casing is needed, order No. 65616 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is required, specify length in inches; if shorter wire is needed, order No. 26633 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 393406

Cartridge-Air Cleaner

$19.99

$

Usually ships in 2-12 days

0

534B

Briggs & Stratton 93913

Screw-Slotted

$3.99

$

In Stock, only 1 left!

0

534A

Briggs & Stratton 93323

Screw-Slotted

$7.49

$

In Stock, only 1 left!

0

534C

Briggs & Stratton 93881

Screw-Air Cleaner
(Superseded to 695546)

$17.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93622

Screw-Slotted

$6.49

$

In Stock, Qty 10

0

535

Briggs & Stratton 270528

Filter-Air Cleaner
(Superseded to 270528S)

$15.99

$

In Stock, Qty 13

0

536A

Briggs & Stratton 393481

Cleaner Assy.-Air

$

$

Not available

536

Briggs & Stratton 390379

Cleaner-Air

$

$

Not available

537

Briggs & Stratton 270539

Gasket-Air Cleaner

$8.99

$

In Stock, only 1 left!

0

549

Briggs & Stratton 270978

Washer

Note: (Below Internal Screw Head)

$5.49

$

In Stock, only 1 left!

0

618

Briggs & Stratton 261116

Spring-Choke Return

$

$

Not available

634

Briggs & Stratton 270382

Washer, Felt (Foam)
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

643

Briggs & Stratton 222149

Cut-Air Cleaner

$

$

Not available

662

Briggs & Stratton 222027

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

872

Briggs & Stratton 222897

Cover-Air Cleaner
(Superseded to 397981)

$20.99

$

Usually ships in 2-12 days

0

873

Briggs & Stratton 271171

Gasket-Air Cleaner Cover
(Superseded to 397972)

$20.99

$

Usually ships in 2-12 days

0

874

Briggs & Stratton 222898

Retainer-Air Filter

$21.99

$

In Stock, only 1 left!

0

875

Briggs & Stratton 393424

Body-Air Cleaner

$

$

Not available
