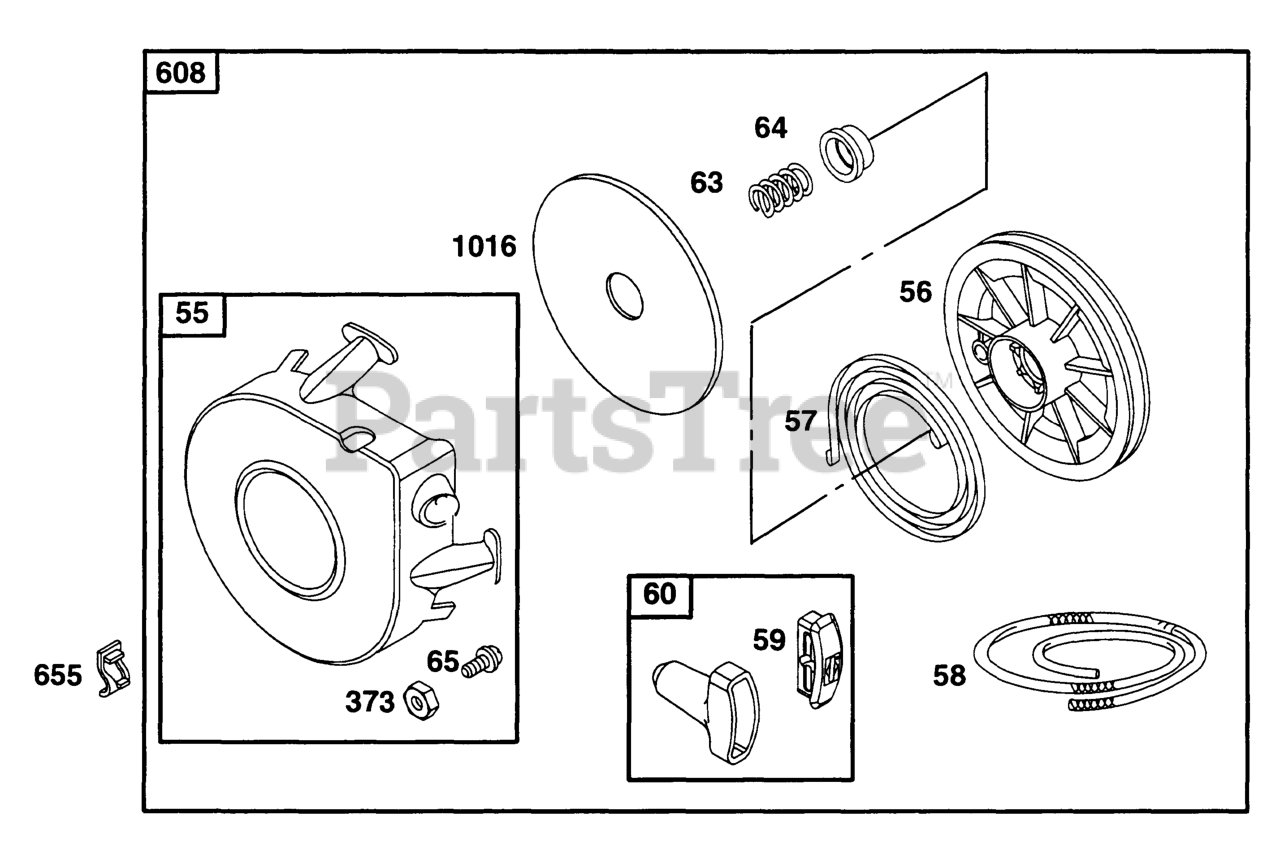

170437-6114-02 - Briggs & Stratton Horizontal Engine Rewind Assy Parts Diagram

Horizontal Engine

Rewind Assy Parts Diagram

  • Title

55

Briggs & Stratton 393576

Housing-Rew Str

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

58

Briggs & Stratton 66894

Rope-Starter (99" Cut To Required Length)
(Superseded to 695002)

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 490653

Insert-Starter Rope
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 281204

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 94928

Screw, Shoulder Hex
(Superseded to 691692)

$3.99

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 94908

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
