170402-1244-XX - Briggs & Stratton Horizontal Engine Carburetor Assy, A/C Groups Parts Diagram

Horizontal Engine

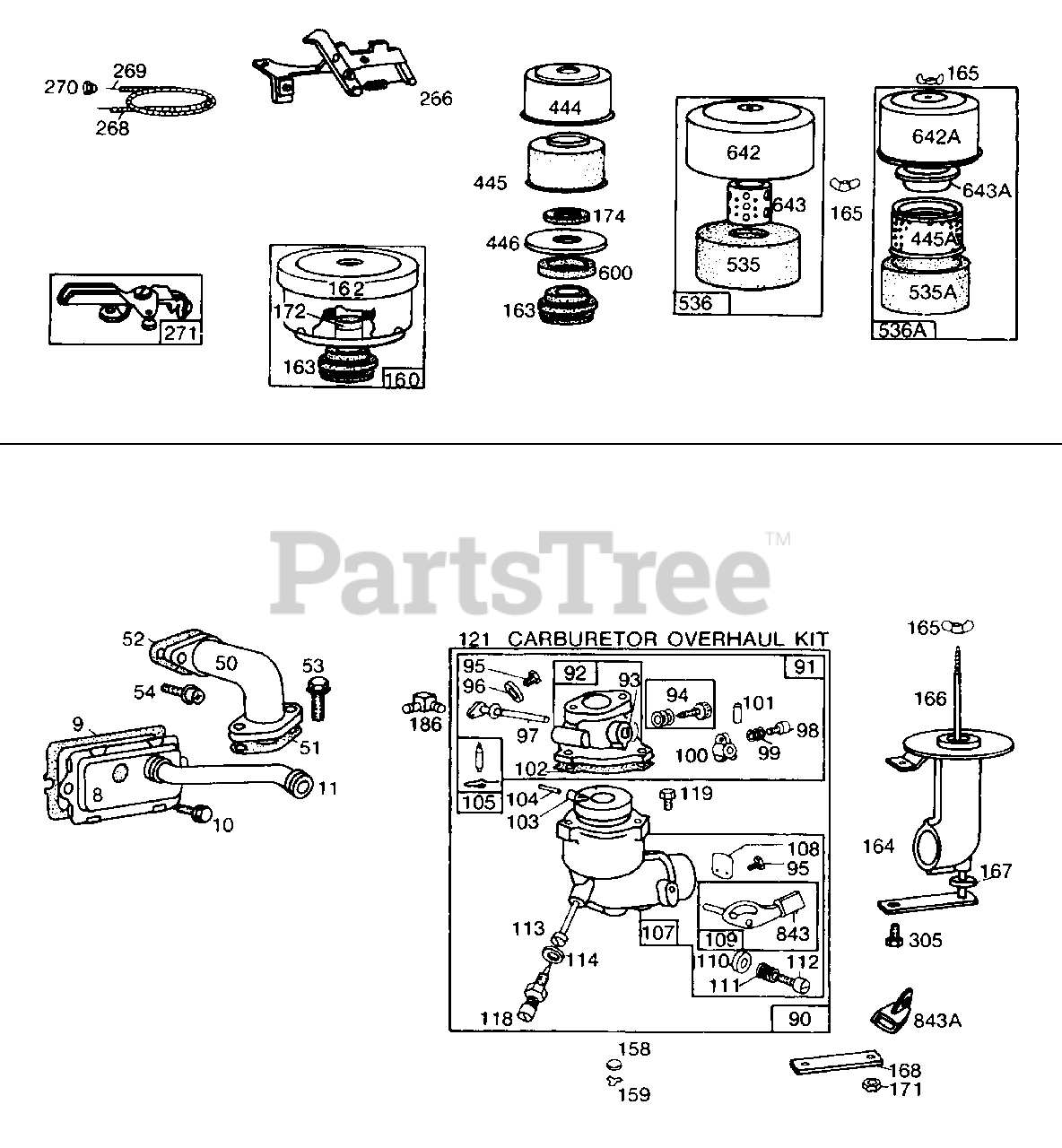

Carburetor Assy, A/C Groups Parts Diagram

  • Title

8

Briggs & Stratton 294948

Breather Assy.
(Superseded to 495731)

$24.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 67068

Tube-Breather

Note: (Used with Metal Air Cleaner Pipe)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 210705

Elbow-Intake

Note: Used Before Code Date 80012200

$

$

Not available

51

Briggs & Stratton 65647

Gasket-Intake Elbow Mounting

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Gasket Set-Part No. 299577

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 27828

Gasket-Spacer To Cylinder Mounting
(Superseded to 27828S)

Note: Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 6

0

53

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 3 left!

0

90

Briggs & Stratton 299892

Carburetor Assy. (Lp Gas)

$

$

Not available

91

Briggs & Stratton 299171

Body Assembly-Upper Carburetor
(Superseded to 390404)

$123.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 296725

Body-Upper Carburetor

$

$

Not available

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 62940

Valve-Throttle
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$4.49

$

In Stock, Qty 12

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 299096

Valve-Fuel Inlet
(Superseded to 394681)

Note: Used Before Code Date 81033000

$7.99

$

In Stock, only 3 left!

0

105

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Used After Code Date 81032700

$7.99

$

In Stock, only 3 left!

0

107

Briggs & Stratton 299895

Body Assy.-Lower Carburetor

$

$

Not available

108

Briggs & Stratton 62872

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391987

Shaft-Choke (Manual)

$9.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Thermostat
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 395207

Nozzle-Carburetor
(Superseded to 398039)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$20.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

121

Briggs & Stratton 291763

Carburetor Overhaul Kit
(Superseded to 394693)

Note: Used Before Code Date 81033000

$31.99

$

In Stock, Qty 20+

0

121

Briggs & Stratton 394693

Carburetor Overhaul Kit

Note: Used After Code Date 81032700

$31.99

$

In Stock, Qty 20+

0

158

Briggs & Stratton 27590

Filter-Carburetor Drin

$6.49

$

In Stock, only 1 left!

0

159

Briggs & Stratton 220521

Retainer-Carb Drain

$

$

Not available

160

Briggs & Stratton 393616

Cleaner Assy.-Air

$73.99

$

Usually ships in 2-12 days

0

162

Briggs & Stratton 296270

Cover And Filter-Air Cleaner
(Superseded to 393616)

$73.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 27907

Gasket-Air Cleaner Mtg.

Note: Included in Gasket Set-Part No. 299577

$7.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 295593

Pipe-Air Cl

Note: (For Round Oil Bath Air Cleaner)

$30.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 92067

Nut-Wing

$3.99

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 297048

Stud-Air Cleaner (5-11/32" Long)

$6.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

168

Briggs & Stratton 222707

Strap-Cl Mtg

Note: (Stud supplied by Equipment Manufacturer)

$7.99

$

In Stock, only 1 left!

0

171

Briggs & Stratton 92129

Nut, Hex Mach (1/4-28)
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 27906

Gasket-Air Cleaner

$

$

Not available

174

Briggs & Stratton 270730

Gasket-Air Cleaner Mtg.

$7.99

$

In Stock, only 1 left!

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

266

Briggs & Stratton 291460

Control-Throttle (Disc Type)

$33.99

$

Usually ships in 2-12 days

0

266

Briggs & Stratton 390802

Control-Throttle
(Superseded to 396861)

Note: Uses: 261137 Spring-Return

$17.99

$

In Stock, only 1 left!

0

268

Briggs & Stratton 65615

Casing-Control Wire 72" Long

Note: If longer casing is required, specify length in inches; if shorter wire is needed, order No. 65616 and cut to required length

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is required, specify length in inches; if shorter wire is needed, order No. 26633 and cut to required length

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

444

Briggs & Stratton 390588

Cover-Air Cleaner
(Superseded to 497158)

$21.99

$

Usually ships in 2-12 days

0

445A

Briggs & Stratton 390930

Cartridge-Air Cleaner
(Superseded to 393957S)

$19.99

$

In Stock, only 2 left!

0

445

Briggs & Stratton 390492

Filter-Air

$31.99

$

In Stock, only 1 left!

0

446

Briggs & Stratton 221969

Support-Air Cleaner

$1.99

$

Usually ships in 2-12 days

0

535A

Briggs & Stratton 270782

Element-Air Cleaner
(Superseded to 271794S)

$4.99

$

In Stock, Qty 9

0

535

Briggs & Stratton 270067

Element-Air Cleaner

$9.49

$

Usually ships in 2-12 days

0

536A

Briggs & Stratton 391063

Cleaner-Air
(Superseded to 593702)

Note: For Dual Element Air Cleaner Kit Order No. 393459. Used with Standard Air Cleaner Pipe Assembly.

$

$

Not available

536

Briggs & Stratton 297595

Cleaner Assy.-Air

$13.99

$

Usually ships in 2-12 days

0

600

Briggs & Stratton 270055

Spacer

$

$

Not available

642A

Briggs & Stratton 222271

Cover-Air Cleaner
(Superseded to 593373)

$

$

Not available

642

Briggs & Stratton 221468

Cover-Air Cleaner

$58.99

$

Usually ships in 2-12 days

0

643A

Briggs & Stratton 222272

Retainer-Filter
(Superseded to 691730)

$10.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280001

Spacer-Air Cleaner

$

$

Not available

843A

Briggs & Stratton 280147

Knob-Control (For Sno-Gard Engines)

$7.49

$

In Stock, only 1 left!

0

843

Briggs & Stratton 280149

Sleeve-Lever
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!

0
