17033 - Toro Walk-Behind Mower, Electric (SN: 005000001 - 005999999) (1975) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower, Electric

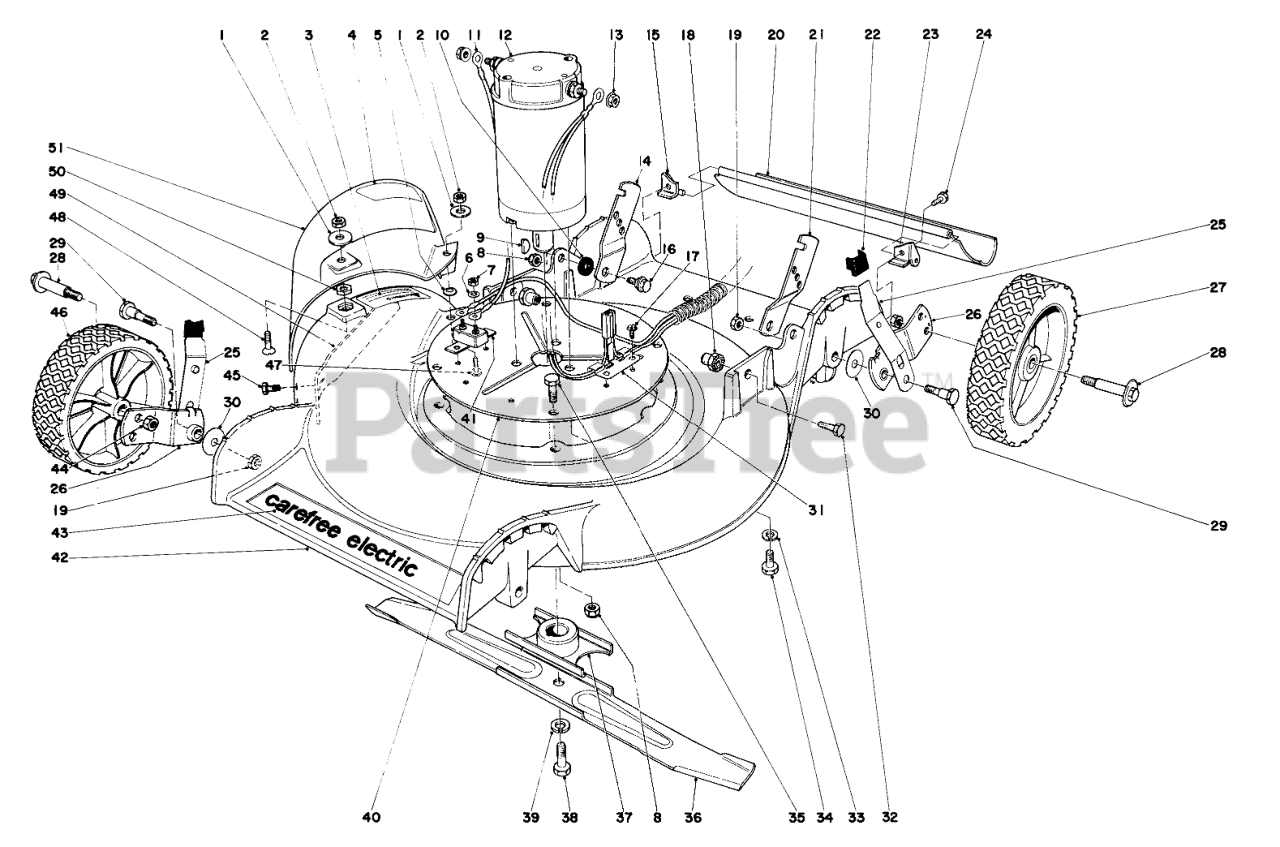

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Toro 25-3930

Warning Decal

$

$

Currently unavailable

4

Toro 23-6120

Decal

$

$

Not available

5

Toro 3290-376

Push Nut

$

$

Currently unavailable

6

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

8

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

9

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

11

Toro 25-0720

Lead Wire

$

$

Currently unavailable

12

Toro 24-6990

Motor

$

$

Not available

13

Toro 2210-159

Nut Belleville

$

$

Currently unavailable

14

Toro 23-5830

Latch Handle R.H.

$

$

Currently unavailable

15

Toro 23-5770

Pivot Bracket R.H.

$

$

Currently unavailable

16

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

17

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

18

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

19

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 23-5810

Rear Safety Shield

$

$

Currently unavailable

21

Toro 23-5820

Latch Handle L.H.

$

$

Not available

22

Toro 6-4220

Knob Arm

$

$

Currently unavailable

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

Note: Not illustrated

$4.99

$

In Stock, Qty 20+

0

23

Toro 23-5760

Pivot Bracket L.H.

$

$

Currently unavailable

24

Toro 32104-60

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 25-1100

Spring Arm

$

$

Currently unavailable

26

Toro 25-0600

Pivot Arm

$

$

Currently unavailable

Toro 25-0610

Pivot Arm

Note: Not illustrated

$

$

Currently unavailable

27

Toro 10-9670

WHEEL ASM 7

$

$

Not available

28

Toro 3-2652

Bolt

$

$

Not available

29

Toro 25-1270

Pivot Bolt

$

$

Not available

30

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

31

Toro 25-2340

Support Connector

$

$

Currently unavailable

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

34

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 23-5630

Blade

$

$

Not available

37

Toro 23-5600

Blade Retainer

$

$

Not available

38

Toro 3211-35

Capscrew

$

$

Not available

39

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

40

Toro 25-0670

Plate Motor Mount

$

$

Not available

41

Toro 23-6140

Circuit Breaker

$

$

Currently unavailable

42

Toro 6-2869

Housing

$

$

Currently unavailable

43

Toro 24-6910

Decal-Deck

$

$

Not available

44

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

45

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

46

Toro 25-0640

Wheel & Tire Assembly Front

$

$

Currently unavailable

47

Toro 3258-157

Screw, Machine

$

$

Not available

48

Toro 32108-3

Flat Head Screw

$

$

Not available

49

Toro 23-5590

Deflector Bar

$

$

Not available

50

Toro 3290-375

Nut

$

$

Currently unavailable

51

Toro 25-2130

Deflector (Incl. Ref. #4)

$

$

Not available

Toro 6-2859

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-0840

Battery Charger (U.S.)
(Superseded to 26-3870)

Note: Not illustrated

$

$

Not available

Toro 25-5840

Battery Charger (Canada)

Note: Not illustrated

$

$

Currently unavailable
