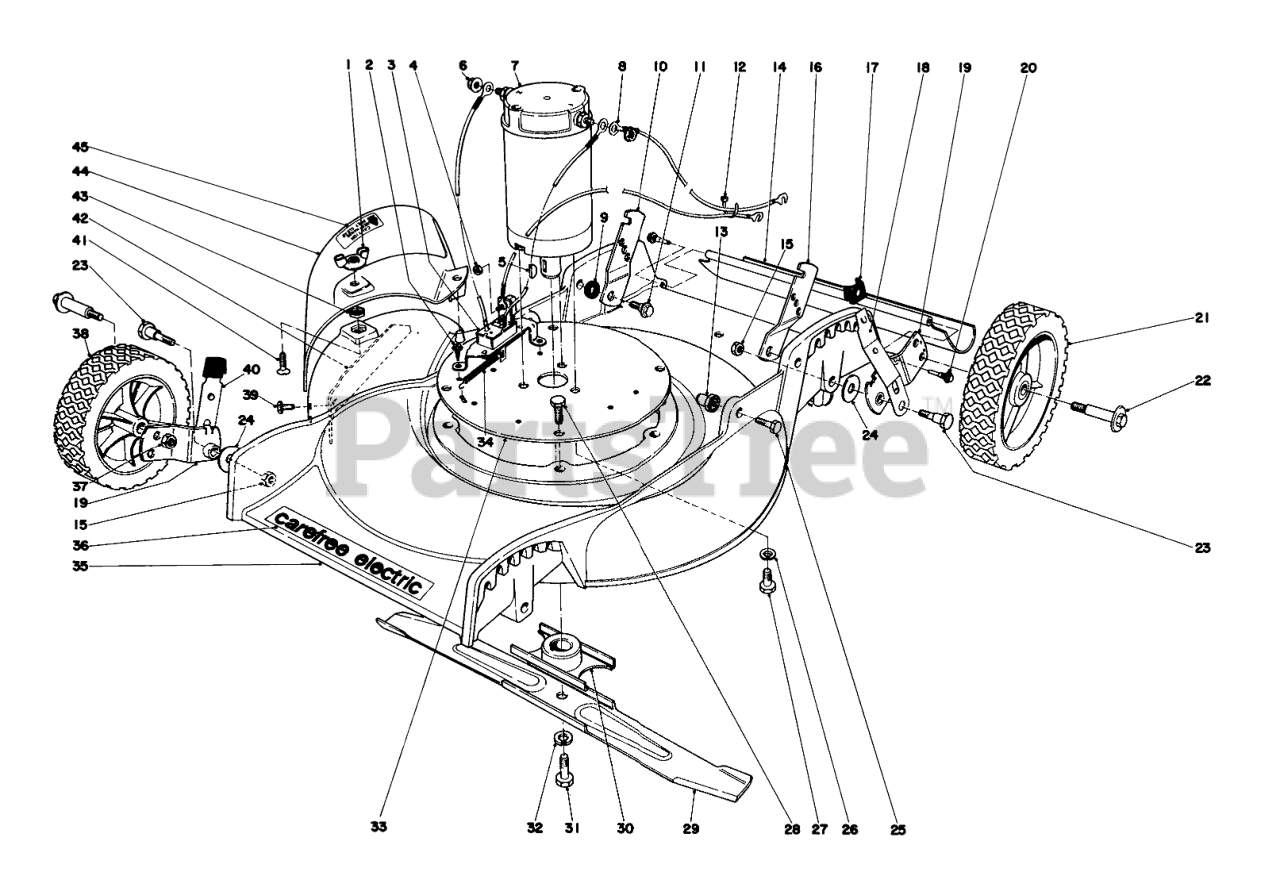

17005 - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1977) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower, Electric

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

2

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 26-0220

Switch

$

$

Not available

4

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

5

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

6

Toro 2210-159

Nut Belleville

$

$

Currently unavailable

7

Toro 244990

Motor

$

$

Currently unavailable

8

Toro 26-5130

Lead-Ground (Black)

$

$

Not available

9

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

10

Toro 23-5830

Latch Handle R.H.

$

$

Currently unavailable

11

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

12

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

13

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

14

Toro 26-3830

Rear Safety Shield

$

$

Not available

15

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

16

Toro 23-5820

Latch Handle L.H.

$

$

Not available

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

18

Toro 25-8020

Spring Arm Assy. Rear

$

$

Not available

19

Toro 25-9800

Pivot Arm Assy. "A"

$

$

Not available

Toro 25-9810

Pivot Arm Assy. "B"

Note: Not illustrated

$

$

Not available

20

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

21

Toro 10-9670

WHEEL ASM 7

$

$

Not available

22

Toro 3-2652

Bolt

$

$

Not available

23

Toro 25-1270

Pivot Bolt

$

$

Not available

24

Toro 26-9530

WASHER-PIVOT

$8.49

$

Usually ships in 3-6 days

0

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

27

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

28

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

29

Toro 23-5630

Blade

$

$

Not available

30

Toro 23-5600

Blade Retainer

$

$

Not available

31

Toro 3211-35

Capscrew

$

$

Not available

32

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 26-0130

Plate Motor Mount

$

$

Not available

34

Toro 26-3850

Spring Extension-Return

$

$

Not available

35

Toro 6-5659

Housing

$

$

Not available

36

Toro 24-6910

Decal-Deck

$

$

Not available

37

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

38

Toro 26-7310

Wheel & Tire Assembly, Front

$

$

Not available

39

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

40

Toro 26-9540

Spring Arm Assy. Front

$

$

Not available

41

Toro 32108-3

Flat Head Screw

$

$

Not available

42

Toro 23-5590

Deflector Bar

$

$

Not available

43

Toro 3290-375

Nut

$

$

Currently unavailable

44

Toro 25-2130

Deflector Assy. (Incl. Ref. #45)

$

$

Not available

45

Toro 23-6120

Decal

$

$

Not available
