17005 - Toro Walk-Behind Mower, Electric (SN: 006000001 - 006999999) (1976) BATTERY ASSEMBLY Parts Diagram

Walk-Behind Mower, Electric

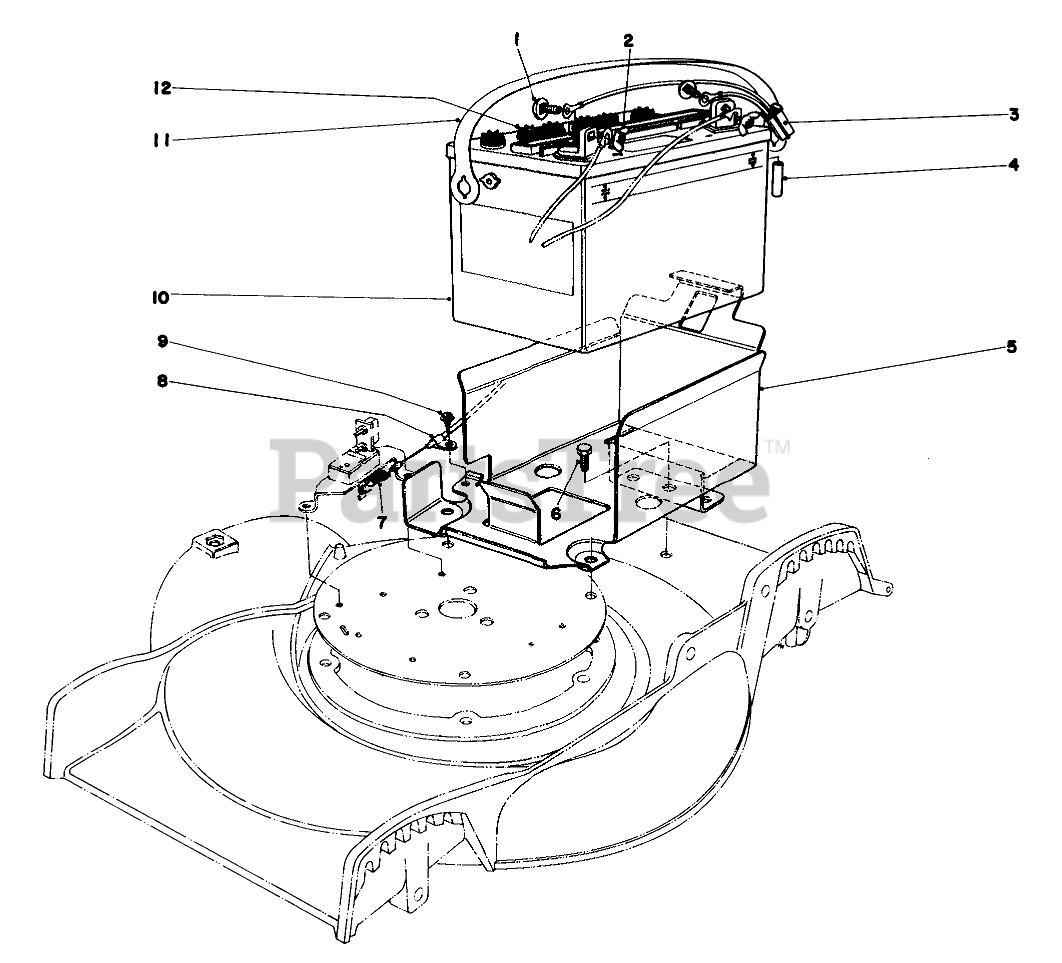

BATTERY ASSEMBLY Parts Diagram

  • Title
1

Toro 3229-24

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

2

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

3

Toro 26-5110

Battery Harness

$

$

Not available

4

Toro 239-21

Vent Tube

$

$

Not available

5

Toro 26-0140

Battery Holder

$

$

Not available

6

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

7

Toro 26-5250

Control Cable Assembly

$

$

Not available

8

Toro 2412-60

Clamp

$

$

Not available

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 26-5780

Battery (Incl. Ref. #1-3)

$

$

Not available

11

Toro 25-0880

Carrying Strap

$

$

Not available

12

Toro 239-20

Vent Cap

$

$

Not available

Toro 26-3870

BATTERY CHARGER

Note: Not illustrated

$

$

Not available

Toro 26-7140

BATT CHGR ASM (EURPN)

Note: Not illustrated

$

$

Not available
