1700 A - Weed Eater String Trimmer CUTTING HEAD ASSEMBLY Parts Diagram

String Trimmer

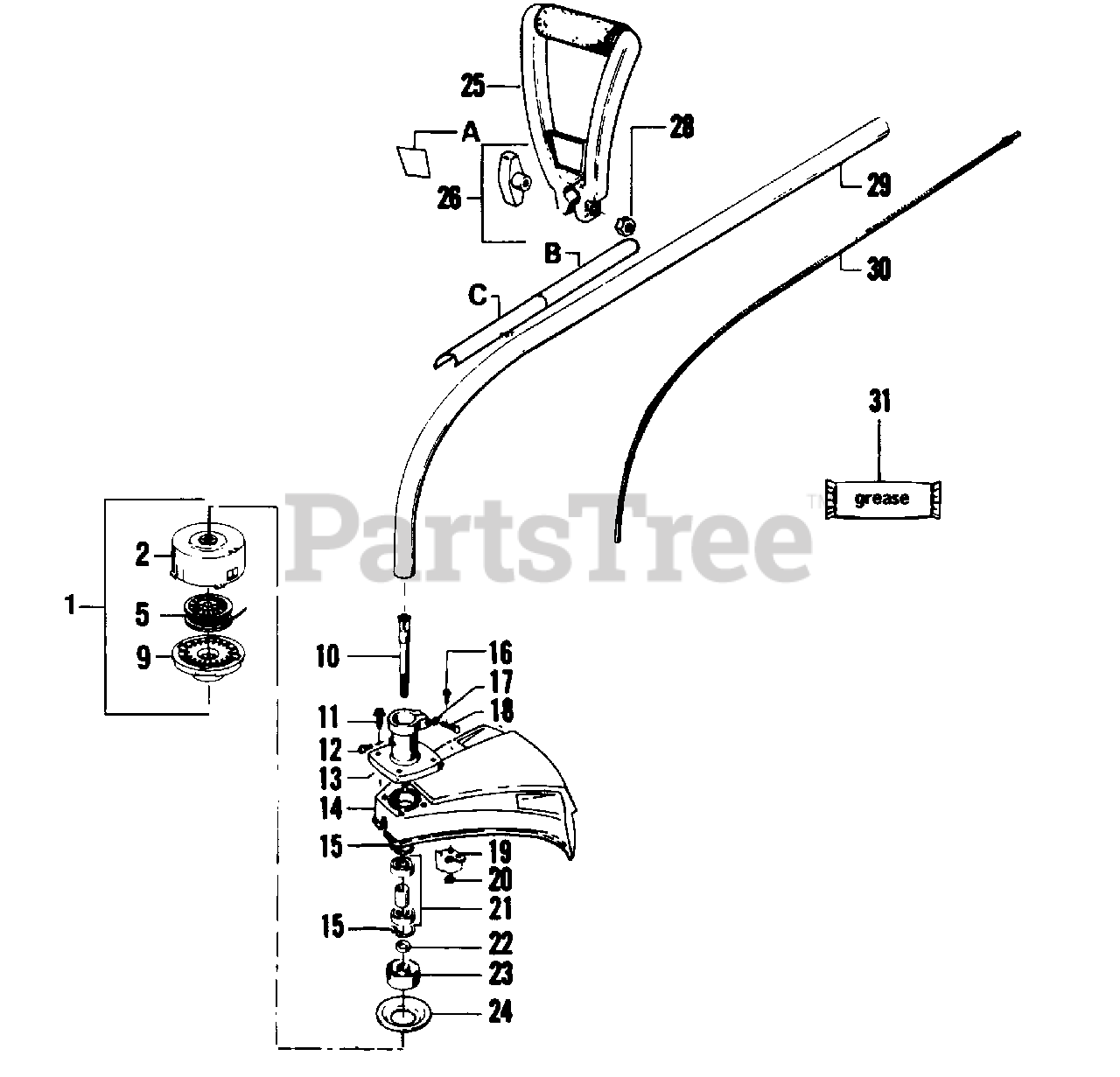

CUTTING HEAD ASSEMBLY Parts Diagram

  • Title

1

Poulan 952701605

Cutting Head Assembly (Inc. 2, 5 & 9)

$25.99

$

Usually ships in 3-10 days

0

2

Poulan 530094592

Hub w/Line Saver

$

$

Not available

5

Poulan 952701607

Spool w/Line

$7.99

$

Usually ships in 3-10 days

0

9

Poulan 530094494

Cover

$

$

Not available

10

Poulan 530093846

Shaft-Arbor

$

$

Not available

11

Poulan 530092243

Screw-Shield to Bearing housing #1/4-10x1-1/8"
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

12

Poulan 530015518

Screw-Self-Tapping-#10-16x1/4"

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530093214

Bearing Housing Ass'y. (Inc. 10, 15, 17, 18, 21, 22, & 23)

$

$

Not available

14

Poulan 530094595

Shield (Inc. #16, 19 & 20)

$

$

Not available

15

Poulan 530091783

Retainer-Bearing

$

$

Not available

16

Poulan 530015037

Screw-Line Limiter-#10-24x5/8"

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530092227

Washer-#1/4-Int. Tooth Lock

$1.49

$

Usually ships in 3-10 days

0

18

Poulan 530625509

Screw-Pinch Clamp-#1/4-20x1"

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

20

Poulan 530015217

Nut-Locking-#10-24
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530069086

Bearings and Spacer Kit

$27.99

$

Usually ships in 3-10 days

0

22

Poulan 530092216

Washer-Dust Cup

$

$

Not available

23

Poulan 530092359

Dust Cup

$

$

Not available

24

Poulan 530092218

WASHER

$7.49

$

Usually ships in 3-10 days

0

Poulan 920092218

SCREW

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530010618

Assist Handle
(Superseded to 530069496)

$

$

Not available

26

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

27

Poulan 530092062

Washer-#1/4 Flat

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015197

Nut

$6.49

$

In Stock, only 4 left!

0

29

Poulan 530093845

Drive Shaft Housing

$

$

Not available

30

Poulan 530093831

Flexible Drive Shaft

$

$

Not available

31

Poulan 530030102

Flex Shaft Lube
(Superseded to 952708514)

$

$

Not available

A

Poulan 530026225

Decal-"D" Handle

$

$

Not available

B

Poulan 530027429

Decal-Safety Label (Upper)

$

$

Not available

C

Poulan 530027404

Decal-Safety Label (Lower)

$

$

Not available

Poulan 530067074

Operator's Manual 1700A w/Blade

$

$

Not available

Poulan 530067073

Operator's Manual 1700A w/o Blade

$6.49

$

Usually ships in 3-10 days

0
