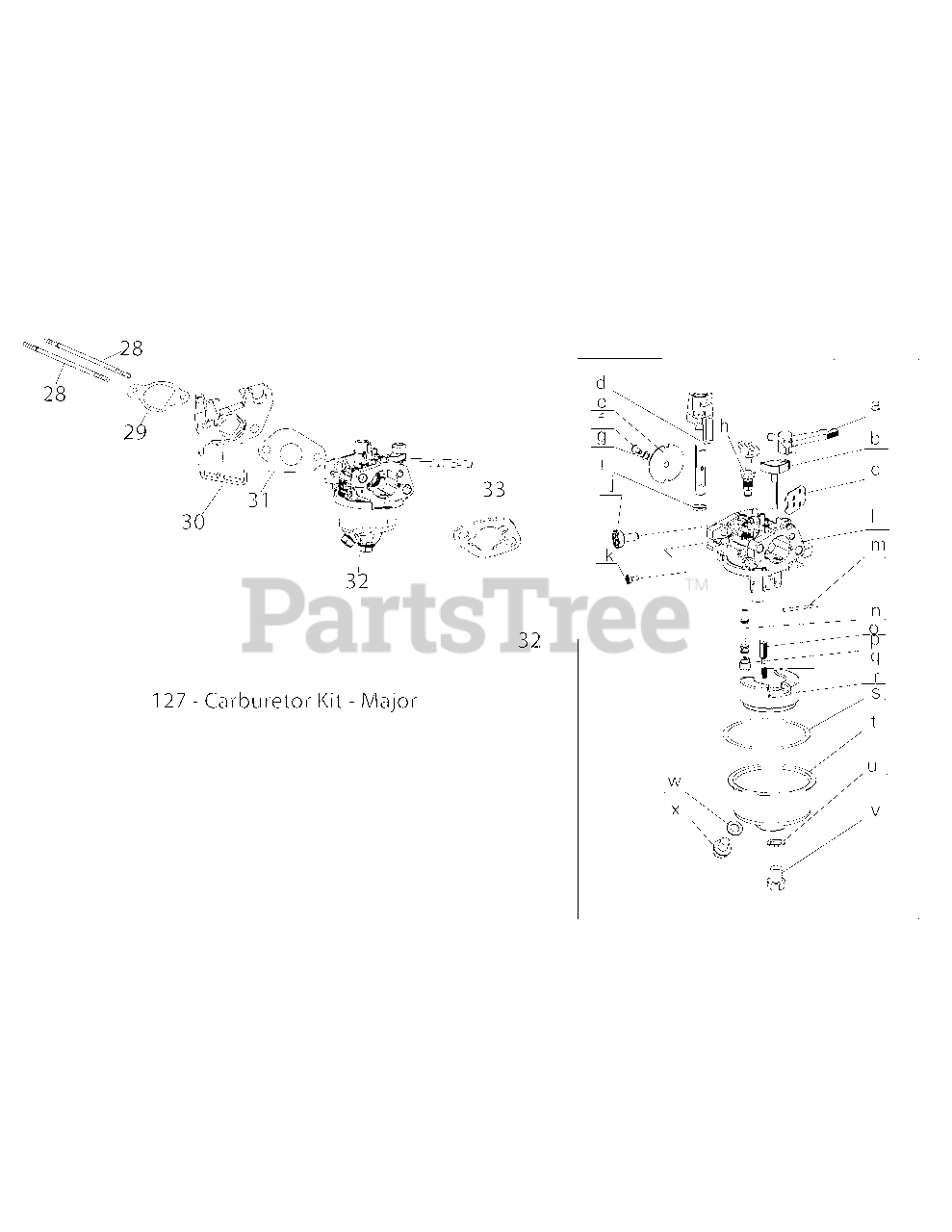

170-VU Carburetor Parts Diagram

  • Title
28

Cub Cadet 710-05101

Stud M6×110

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

30

Cub Cadet 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 19

0

31

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

32

Cub Cadet 951-12124

Carburetor Assembly
(Superseded to 951-12785)

$124.99

$

In Stock, only 2 left!

0

33

Cub Cadet 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 20+

0

127

Cub Cadet 951-12119A

Carburetor Kit - Major

Note: (Incl.h,I,j,m,n,o,p,q,r,s,u,w)

$61.99

$

In Stock, only 1 left!

0

a

Cub Cadet 951-11177

Control Lever,Choke
(Superseded to 951-12515)

$11.99

$

In Stock, only 1 left!

0

b

Cub Cadet n/a

Choke Shaft

$

$

Currently unavailable

c

Cub Cadet n/a

Choke Plate

$

$

Currently unavailable

d

Cub Cadet n/a

Throttle Shaft

$

$

Currently unavailable

e

Cub Cadet n/a

Throttle Plate

$

$

Currently unavailable

f

Cub Cadet n/a

Screw M3×5

$

$

Currently unavailable

g

Cub Cadet 736-04638

Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

h

Cub Cadet n/a

Idle Jet Assembly

$

$

Currently unavailable

i

Cub Cadet n/a

Gasket, Throttle Plate

$

$

Currently unavailable

j

Cub Cadet n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

k

Cub Cadet n/a

Mixture Screw

$

$

Currently unavailable

l

Cub Cadet n/a

Carburetor Body

$

$

Currently unavailable

m

Cub Cadet n/a

Float Pin

$

$

Currently unavailable

n

Cub Cadet n/a

Emulsion Tube

$

$

Currently unavailable

o

Cub Cadet n/a

Needle Valve

$

$

Currently unavailable

p

Cub Cadet n/a

Main Jet

$

$

Currently unavailable

q

Cub Cadet n/a

Needle Valve Spring

$

$

Currently unavailable

r

$

$

Currently unavailable

s

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

Cub Cadet n/a

Fuel Bowl

$

$

Currently unavailable

u

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 11

0

v

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 12

0

w

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 8

0
