170-THC - Cub Cadet 208cc Engine 170-THC General Assembly Parts Diagram

208cc Engine

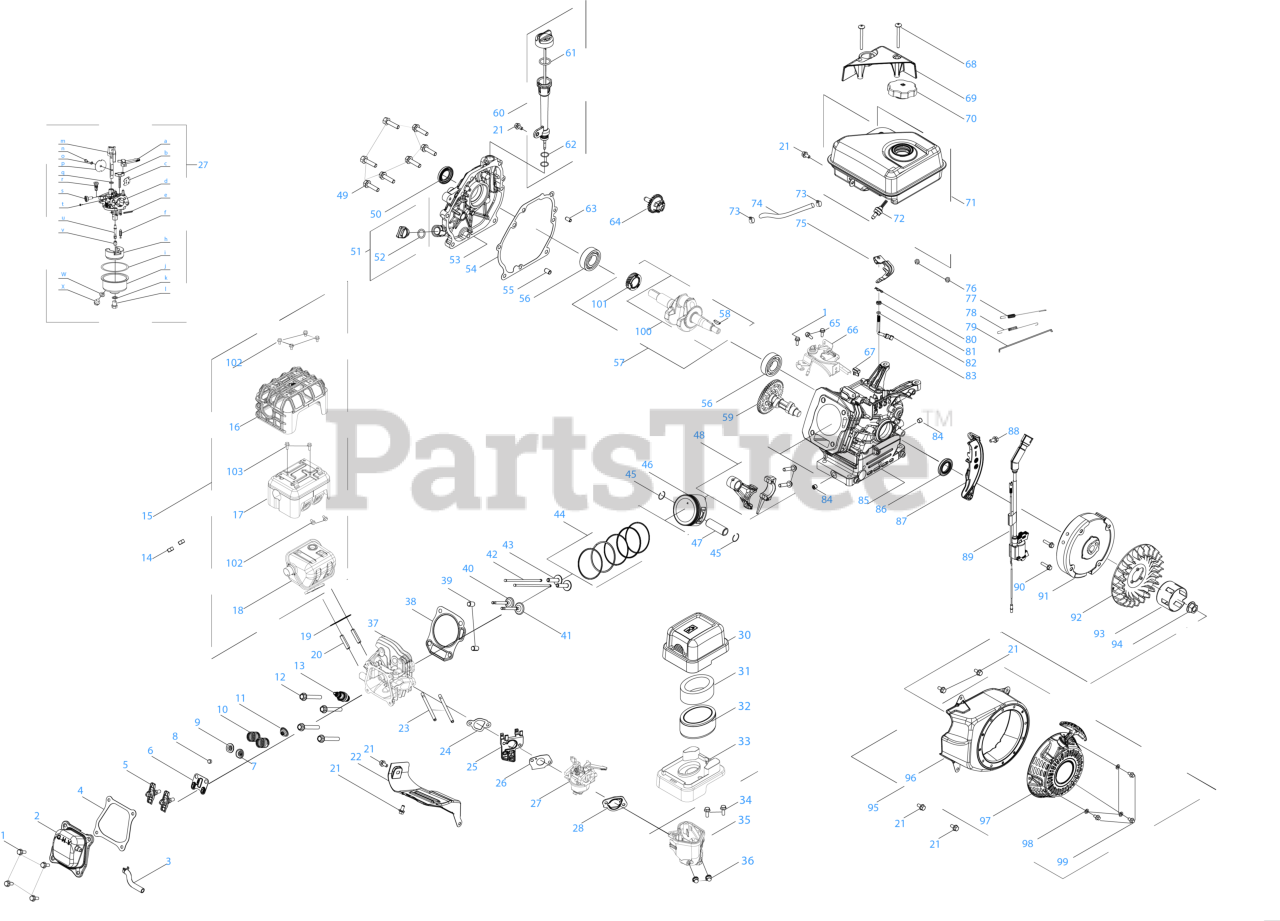

170-THC General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 951-11054B

VALVE COVER

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15045

BREATHER HOSE

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 751P11565B

VALVE COVER GASKET

$10.99

$

In Stock, Qty 12

0

5

Cub Cadet 951-11892

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 951-15139

ROCKER ARM BASE

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-12000

INTAKE VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 951-12002

EXHAUST VALVE ADJUSTER
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

9

Cub Cadet 951-12003

EXHAUST VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

11

Cub Cadet 951-11894

INTAKE VALVE SEAL

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-06080

BOLT-M8-1.25 x 60 GR10.9

$6.49

$

In Stock, only 1 left!

0

13

Cub Cadet 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

15

Cub Cadet 751P18511

MUFFLER

$52.99

$

In Stock, only 4 left!

0

16

Cub Cadet 751P18508

MUFFLER SHIELD

$17.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 751P18509

INNER MUFFLER SHIELD

$14.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 751P18510

MUFFLER BODY

$34.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 951-11289

MUFFLER GASKET
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-04911

STUD M8 x 36

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 951-11113

AIR SHIELD

$9.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-05101

STUD M6-1 x 110 GR8.8

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 751P11567B

CARBURETOR INSULATOR GASKET

$1.99

$

In Stock, Qty 20+

0

25

Cub Cadet 951-11568

CARBURETOR INSULATOR
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

26

Cub Cadet 751P12005A

CARBURETOR GASKET

$5.99

$

In Stock, Qty 20+

0

27

Cub Cadet 751-18653

Carburetor

$

$

Currently unavailable

28

Cub Cadet 951-11571

CARBURETOR GASKET PLATE

$5.99

$

In Stock, Qty 20+

0

30

Cub Cadet 951-12136

AIR CLEANER COVER

$19.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 951-10794

AIR CLEANER WITH PRE-FILTER

$14.99

$

In Stock, Qty 20+

0

32

Cub Cadet 751P14261

AIR FILTER

$2.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 751-18467

AIR BASE

$

$

Currently unavailable

34

Cub Cadet 710-06585

SCREW M4x20

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-14315

AIR CLEANER HOUSING

$30.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-04213

NUT

$6.99

$

In Stock, only 4 left!

0

37

Cub Cadet 951-14312

CYLINDER HEAD

$117.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-14316

CYLINDER HEAD GASKET

$11.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

40

Cub Cadet 951-14100

EXHAUST VALVE
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

41

Cub Cadet 951-14099

INTAKE VALVE
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-14105

PUSH ROD
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11899

TAPPET

$8.49

$

In Stock, only 4 left!

0

44

Cub Cadet 951-14317

PISTON RING 4PC SET
(Superseded to 951-14317A)

$27.99

$

In Stock, only 4 left!

0

45

Cub Cadet 951-11632

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-15052

PISTON

$41.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-11633

PISTON PIN

$7.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-11573

CONNECTING ROD ASSEMBLY
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

49

Cub Cadet 710-04932

BOLT M8-1.25 x 32 GR5.8

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-11578

OIL SEAL 25 x 41.25 x 6

$14.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 931-09966

OIL PLUG

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-11577

O-RING 15.8 x 2.5

$4.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-12125

CRANKCASE COVER

$115.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-11371A

CRANKCASE COVER GASKET
(Superseded to 751P11371B)

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-11369

BEARING

$34.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 751P18547

CRANKSHAFT

$66.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

59

Cub Cadet 951-15128

CAMSHAFT

$48.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-05020A

DIPSTICK ASSEMBLY
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 921-04663

DIPSTICK O-RING
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-12397

OIL FILL TUBE O-RING

$5.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-11576

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-05103

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 2 left!

0

66

Cub Cadet 951-14776

GOVENOR GEAR BRACKET

$15.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11067

THROTTLE KNOB

$3.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-04905

BOLT M6-1 x 67

$4.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-11914

ENGINE/DIPSTICK COVER

$14.99

$

In Stock, Qty 7

0

70

Cub Cadet 951-10917A

FUEL CAP ASSEMBLY-BLACK
(Superseded to 951-10917B)

$16.99

$

In Stock, only 1 left!

0

71

Cub Cadet 651-05261

Fuel Tank

$

$

Currently unavailable

72

Cub Cadet 951-14965

FUEL INLET NIPPLE

$10.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-14123

FUEL HOSE (6.3x12.5x123MM)

$21.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-14089

GOVERNOR LEVER

$7.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

77

Cub Cadet 951-11585

GOVERNOR SPRING

$7.49

$

In Stock, Qty 7

0

78

Cub Cadet 951-10664

THROTTLE RETURN SPRING
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

79

Cub Cadet 951-10665

GOVERNOR ROD
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

80

Cub Cadet 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

81

Cub Cadet 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

82

Cub Cadet 736-04461

O-RING

$3.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-14053

GOVERNOR SHAFT

$15.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 710-07374

OIL DRAIN PLUG
(Superseded to 710P07374)

$3.49

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-14119

CRANKCASE

$176.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-12126

OIL SEAL-25 x 41.25 x 6

$14.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-15030

LOWER SHIELD

$11.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 710-05192

SCREW M6-1 x 20 CL5.8

$5.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 951-10792

IGNITION COIL

$96.99

$

In Stock, only 1 left!

0

90

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 951-14320

FLYWHEEL

$118.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-10934

COOLING FAN
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 951-14887

STARTER CUP

$14.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

95

Cub Cadet 651-05474

Recoil Starter

$

$

Currently unavailable

96

Cub Cadet 951-11583

BLOWER HOUSING

$96.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-15603

RECOIL STARTER

$49.99

$

In Stock, only 3 left!

0

98

Cub Cadet 736-04455

RECOIL FLAT WASHER
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 710-06354

BOLT M6 x 10

$6.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 751-18546

Crankshaft

$

$

Currently unavailable

101

Cub Cadet 951-15130

DRIVE TIMING GEAR

$14.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 710-06119

BOLT M5-.8 x 8 CL10.9

$5.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 710-06118

BOLT M5-.8 x 12 CL10.9

$5.99

$

Usually ships in 3-6 days

0

a

Choke Lever

$

$

Not available

b

Choke Shaft

$

$

Not available

c

Choke Plate

$

$

Not available

d

Carburetor Body

$

$

Not available

e

Float Pin

$

$

Not available

f

Needle Valve

$

$

Not available

h

Float

$

$

Not available

i

Cub Cadet 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

j

Float Bowl

$

$

Not available

k

Cub Cadet 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

l

Cub Cadet 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 13

0

m

Throttle Shaft

$

$

Not available

n

Screw, M3×6

$

$

Not available

o

Washer, ?3

$

$

Not available

p

Throttle Plate

$

$

Not available

q

Gasket

$

$

Not available

r

Idle Jet

$

$

Not available

s

Idle Adjusting Screw

$

$

Not available

t

Mixture Screw

$

$

Not available

u

Nozzle Tube

$

$

Not available

v

Main Jet

$

$

Not available

w

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 10

0
