170-T0 - MTD Engine Engine Assembly 170-T0 Parts Diagram

Engine

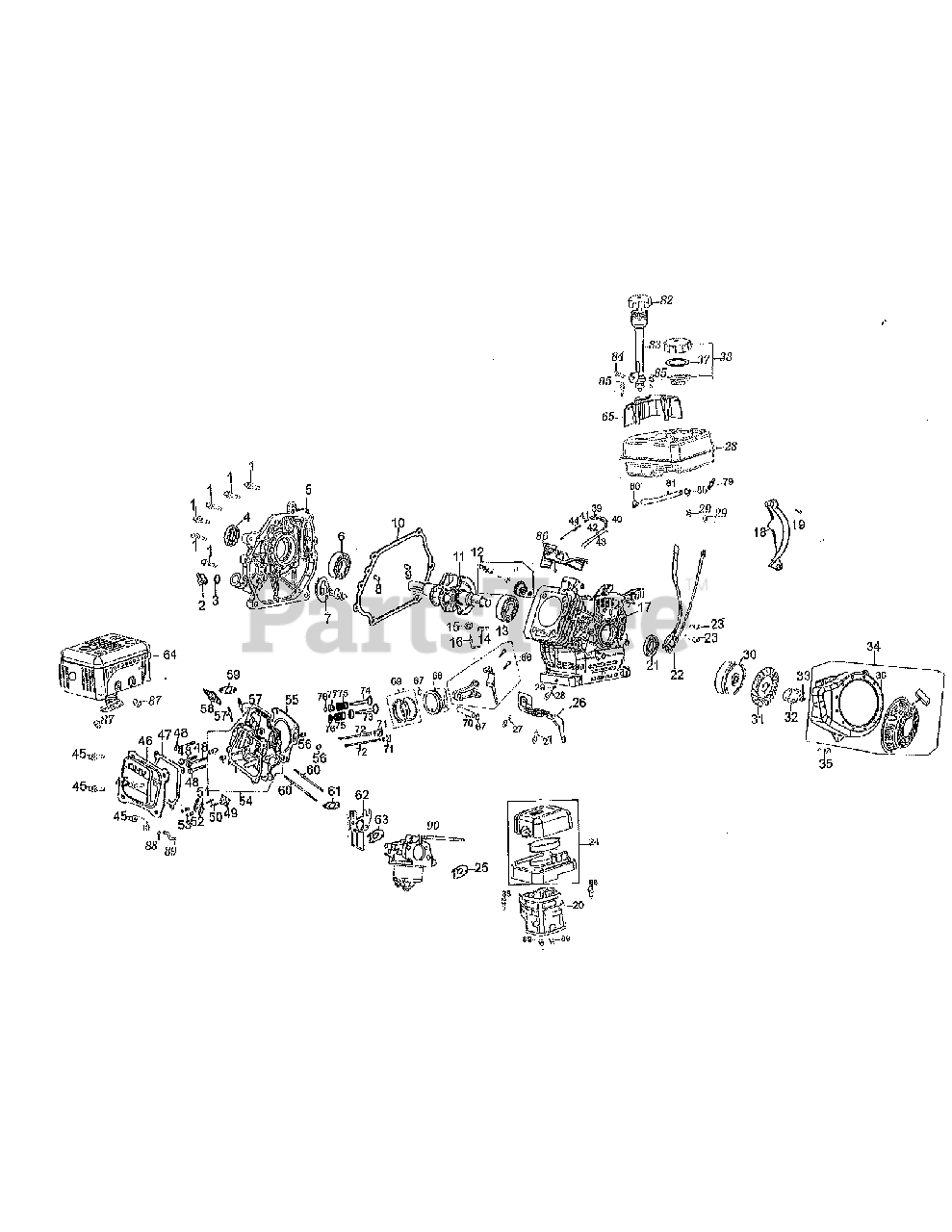

Engine Assembly 170-T0 Parts Diagram

  • Title

1

N/A

Bolt

Note: Furnish Short Block 951-10798

$

$

Not available

2

MTD 951-10669

Oil Fill Plug Assembly

$6.49

$

Usually ships in 3-6 days

0

2

Oil Fill Plug Assembly

Note: Furnish Short Block 951-10798

$

$

Not available

3

N/A

O-Ring

Note: Furnish Short Block 951-10798

$

$

Not available

4

N/A

Oil Seal

Note: Furnish Short Block 951-10798

$

$

Not available

5

N/A

Left Crankcase Cover

Note: Furnish Short Block 951-10798

$

$

Not available

6

N/A

Radial Ball Bearing

Note: Furnish Short Block 951-10798

$

$

Not available

7

N/A

Camshaft Assembly

Note: Furnish Short Block 951-10798

$

$

Not available

8

N/A

Dowel Pin

Note: Furnish Short Block 951-10798

$

$

Not available

9

N/A

Dowel Pin

Note: Furnish Short Block 951-10798

$

$

Not available

10

N/A

Case Cover Packing

Note: Furnish Short Block 951-10798

$

$

Not available

11

N/A

Crankshaft Complete

Note: Furnish Short Block 951-10798

$

$

Not available

12

N/A

Governor Kit

Note: Furnish Short Block 951-10798

$

$

Not available

13

N/A

Radial Ball Bearing

Note: Furnish Short Block 951-10798

$

$

Not available

14

N/A

Lock Pin

Note: Furnish Short Block 951-10798

$

$

Not available

15

N/A

O-Ring

Note: Furnish Short Block 951-10798

$

$

Not available

16

N/A

Governor Arm

Note: Furnish Short Block 951-10798

$

$

Not available

17

N/A

Crankase Complete

Note: Furnish Short Block 951-10798

$

$

Not available

20

MTD 951-10806

Air Filter Heating Pipe Base

$22.99

$

In Stock, Qty 7

0

21

N/A

Oil Seal

Note: Furnish Short Block 951-10798

$

$

Not available

22

MTD 951-10792

Ignition Complete

$96.99

$

In Stock, only 1 left!

0

24

MTD 951-10818

Air Filter Housing

$38.99

$

In Stock, only 1 left!

0

24

MTD 951-10794

Air Filter

$14.99

$

In Stock, Qty 20+

0

25

N/A

Carburetor Packing

Note: Furnish Short Block 951-10798

$

$

Not available

28

MTD 951-10796

Fuel Tank
(Superseded to 951-12159)

$139.99

$

In Stock, only 2 left!

0

28

Bolt

Note: Furnish Short Block 951-10798

$

$

Not available

29

N/A

Nut

Note: Furnish Short Block 951-10798

$

$

Not available

30

MTD 951-10805

Flywheel

$133.99

$

Usually ships in 3-6 days

0

31

MTD 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

34

MTD 951-10790

Recoil Starter Assembly

$82.99

$

In Stock, Qty 7

0

34

MTD 951-10826

Recoil Spring and Pulley Assembly

$45.99

$

Usually ships in 3-6 days

0

38

MTD 951-10649

Fuel Filler Cap Complete
(Superseded to 951-12533)

$23.99

$

In Stock, only 2 left!

0

44

MTD 951-10654

Governor Spring

$8.49

$

In Stock, Qty 20+

0

47

N/A

Head Cover Gasket

Note: Furnish Short Block 951-10798

$

$

Not available

51

N/A

Rocker Arm

Note: Furnish Cylinder Head 951-10799

$

$

Not available

52

N/A

Valve Adjusting Nut

Note: Furnish Cylinder Head 951-10799

$

$

Not available

53

N/A

Pivot Locking Nut

Note: Furnish Cylinder Head 951-10799

$

$

Not available

54

N/A

Cylinder Head Complete

Note: Furnish Cylinder Head 951-10799

$

$

Not available

55

N/A

Cylinder Head Gasket

Note: Furnish Short Block 951-10798

$

$

Not available

56

N/A

Dowel Pin

Note: Furnish Cylinder Head 951-10799

$

$

Not available

57

MTD 951-10786

Stud 8 × 34

$

$

Currently unavailable

58

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

59

N/A

Muffler Gasket

Note: Furnish Cylinder Head 951-10799

$

$

Not available

61

N/A

Carburetor Insulator Packing

Note: Furnish Short Block 951-10798

$

$

Not available

62

N/A

Carburetor Insulator

Note: Furnish Short Block 951-10798

$

$

Not available

64

MTD 951-10793

Muffler
(Superseded to 751P18511)

$52.99

$

In Stock, only 4 left!

0

65

MTD 951-10662

Dipstick Decoration Cover

$

$

Not available

66

N/A

Connecting Rod Assembly

Note: Furnish Short Block 951-10798

$

$

Not available

67

N/A

Piston Pin Clip

Note: Furnish Short Block 951-10798

$

$

Not available

68

N/A

Piston

Note: Furnish Short Block 951-10798

$

$

Not available

69

N/A

Piston First Ring Set

Note: Furnish Short Block 951-10798

$

$

Not available

70

N/A

Piston Pin

Note: Furnish Short Block 951-10798

$

$

Not available

71

MTD 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

71

Valve Lifter

Note: Furnish Push Rod Kit 951-10648

$

$

Not available

71

Push Rod

Note: Furnish Push Rod Kit 951-10648

$

$

Not available

73

MTD 951-10647

Valve Kit
(Superseded to 951-10647A)

$64.99

$

Usually ships in 3-6 days

0

73

Inlet Valve

Note: Furnish Valve Kit 951-10647

$

$

Not available

73

Exhaust Valve

Note: Furnish Valve Kit 951-10647

$

$

Not available

79

MTD 951-10651

Fuel Tank Nipple

$15.99

$

In Stock, Qty 16

0

81

MTD 951-10650

Fuel Line Kit

$28.99

$

In Stock, only 2 left!

0

82

MTD 951-10655

Dipstick
(Superseded to 631-05020AP)

$34.99

$

In Stock, only 1 left!

0

83

MTD 951-10656

Engine/Dipstick Cover
(Superseded to 631-05020AP)

$34.99

$

In Stock, only 1 left!

0

85

MTD 710-04931

Bolt - M6 X 28 Zinc Coating

$6.99

$

Usually ships in 3-6 days

0

90

MTD 951-10797

Carburetor
(Superseded to 951-12785)

$124.99

$

In Stock, only 2 left!

0

MTD 951-10799

Cylinder Head

Note: (Not Shown)

$176.99

$

Usually ships in 3-6 days

0

MTD 951-10798

Short Block
(Superseded to 951-10798A)

Note: (Not Shown)

$345.99

$

Usually ships in 3-6 days

0

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: (Not Shown)

$2.49

$

In Stock, Qty 10

0

MTD 951-10800

Carb. Kit Major
(Superseded to 951-12783)

Note: (Not Shown)

$58.99

$

In Stock, only 2 left!

0

MTD 951-10801

Gasket Kit - External
(Superseded to 951-10801A)

Note: (Not Shown)

$29.99

$

Usually ships in 3-6 days

0

MTD 951-10802

Gasket Kit - Complete
(Superseded to 951-10802A)

Note: (Not Shown)

$53.99

$

Usually ships in 3-6 days

0

MTD 951-10829

Spark Arrestor

Note: (Not Shown)

$

$

Not available

MTD 951-10657

Muffler Stud Assembly

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

MTD 951-10819

Cylinder Head Service Kit

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

MTD 952Z170-T0

Engine - Complete
(Superseded to 952Z170-AUC)

Note: (Not Shown)

$747.99

$

Usually ships in 3-6 days

0
