170-SU - MTD Engine 170-SU Fuel Tank & Mounting Parts Diagram

Engine

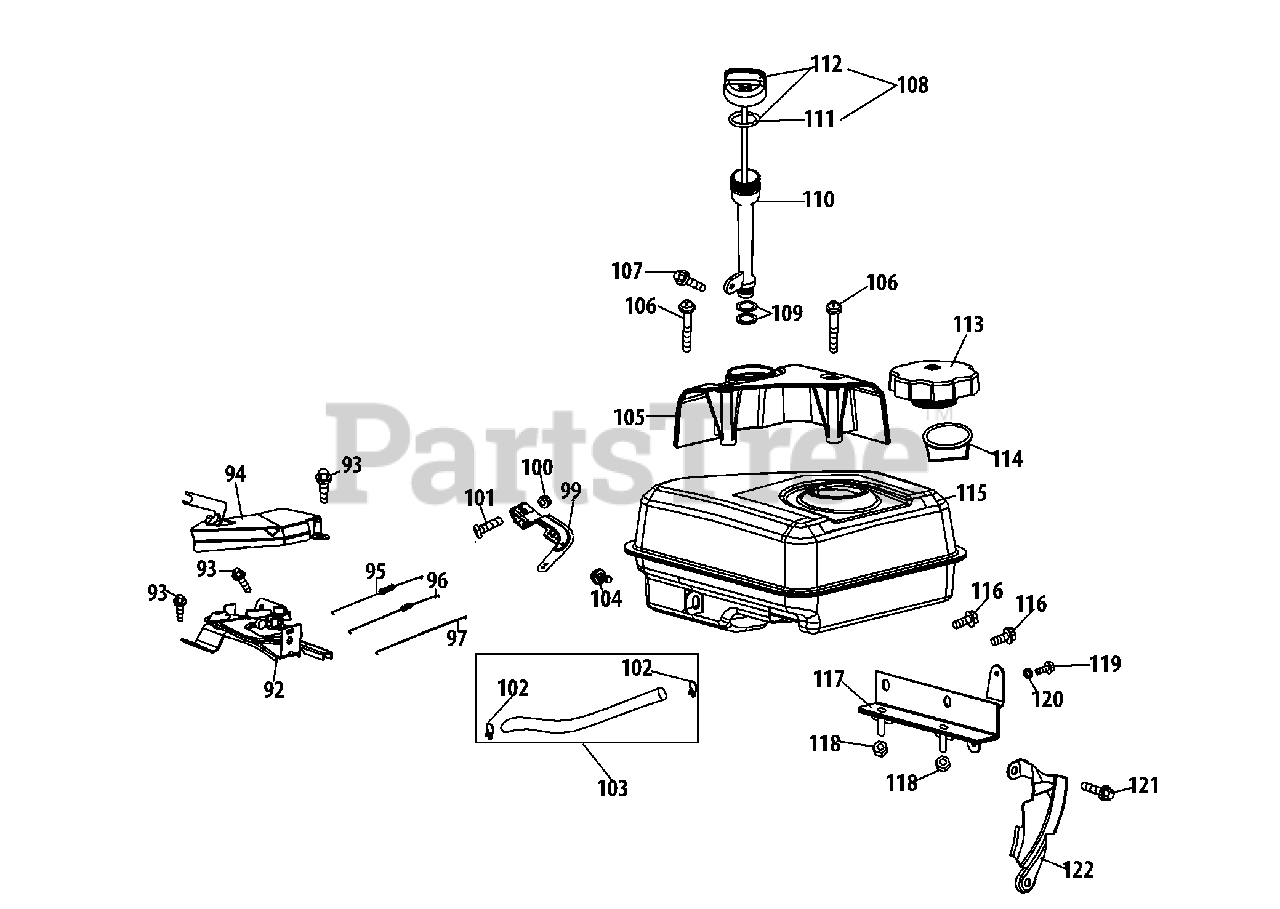

170-SU Fuel Tank & Mounting Parts Diagram

  • Title
92

MTD 951-10758

Throttle Bracket

$23.99

$

Usually ships in 3-6 days

0

93

MTD 710-05103

Bolt M6×12

$4.49

$

In Stock, only 2 left!

0

94

MTD 951-11108

Governor Linkage Shield

$4.99

$

Usually ships in 3-6 days

0

95

MTD 951-11935

Governor Spring

$7.99

$

In Stock, Qty 11

0

96

MTD 951-10664

Throttle Linkage Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

97

MTD 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

99

MTD 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

100

MTD 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

101

MTD 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

102

MTD 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

103

MTD 951-10650

Fuel Line Kit

$28.99

$

In Stock, only 2 left!

0

104

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

105

MTD 951-11914

Dipstick Decoration Cover

$14.99

$

In Stock, Qty 7

0

106

$4.49

$

Usually ships in 3-6 days

0

107

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

108

MTD 951-12482

Dipstick Assembly

$15.99

$

Usually ships in 3-6 days

0

109

MTD 951-11381

O-Ring

$5.49

$

In Stock, Qty 10

0

110

MTD 951-11913

Oil Fill Tube Assembly

$16.99

$

In Stock, Qty 5

0

111

MTD 951-11904

Dipstick O-Ring

$4.49

$

In Stock, Qty 9

0

112

MTD 951-10656

Dipstick Tube
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

113

MTD 951-12533

Fuel Cap Assembly

$23.99

$

In Stock, only 2 left!

0

114

MTD 951-11933

Fuel Level Indicator

$9.99

$

Usually ships in 3-6 days

0

115

MTD 951-10653B

Fuel Tank Assembly

$79.99

$

In Stock, Qty 10

0

116

MTD 710-04914

Bolt M6×10

$4.49

$

In Stock, only 3 left!

0

117

MTD 951-11114

Switch Housing Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

118

MTD 712-05015

Nut, M6

$6.99

$

In Stock, Qty 20+

0

119

MTD 710-05197

Bolt M4×10

$2.99

$

Usually ships in 3-6 days

0

120

MTD 736-04526

Washer 4

$3.99

$

In Stock, only 1 left!

0

121

MTD 710-04915

Bolt M6×20

$4.49

$

In Stock, Qty 20+

0

122

MTD 951-14138

Blower Housing Shield
(Superseded to 951-14138A)

$4.99

$

Usually ships in 3-6 days

0
